Chapter 1: Alarms

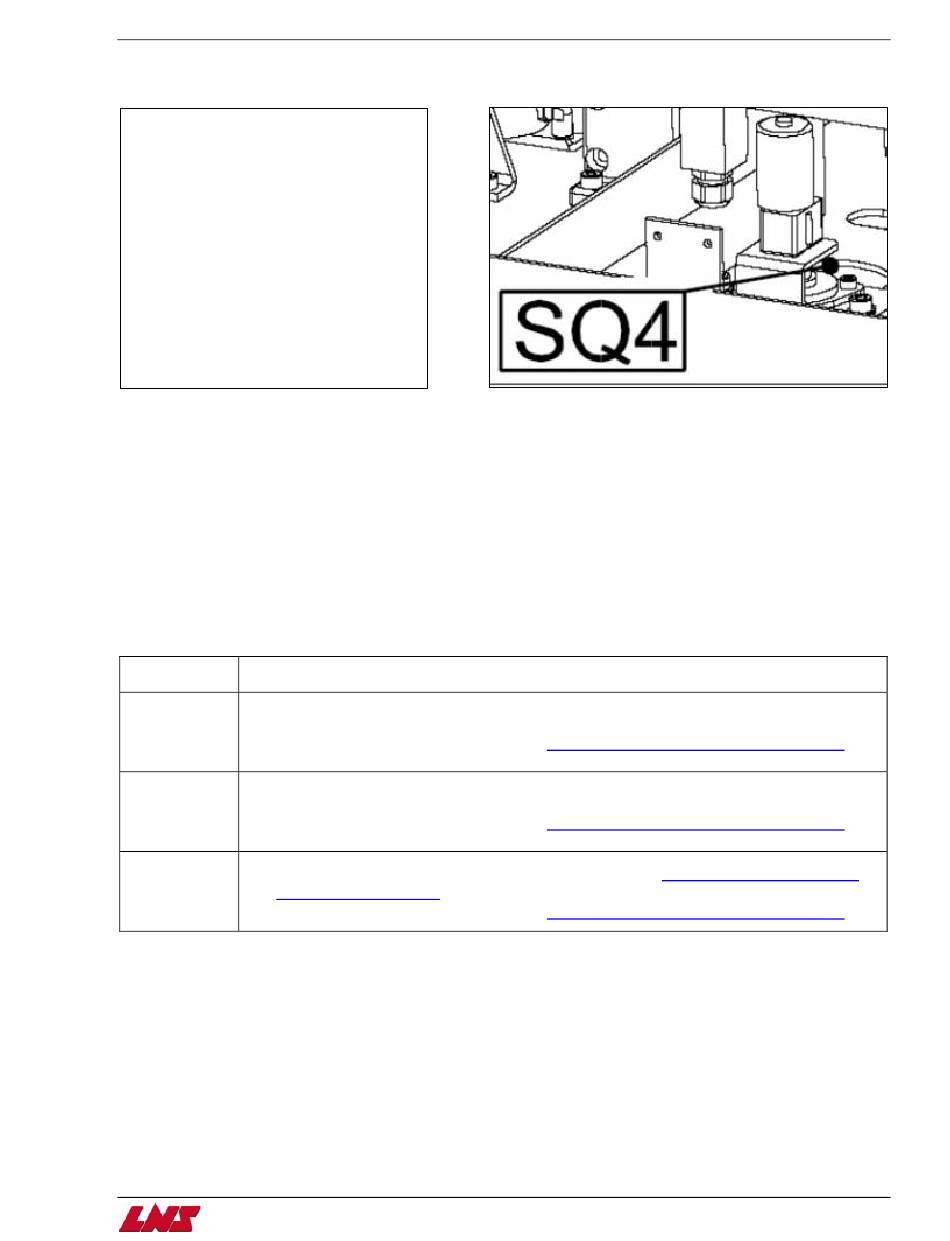

Drive For Diameter Adjustment Error

DRIVE FOR DIAMETER
ADJUSTMENT ERROR!
POSSIBLE CAUSES:
-MOTION DETECTION
SWTICH SQ4 DEFECTIVE
OR MIS-ADJUSTED
-DEFECTIVE MOTOR M2
-OUT OF SYNC
-MECHANICAL PROBLEM
Description:
The Drive For Diameter Adjustment Error alarm occurs when the diameter adjustment motor is activated and one of the following
conditions occurs:
1.
Input (I1.3 – SQ4) is on for longer than 1 second.
2.
Input (I1.3 – SQ4) is off for longer than 1 second.
3.
Relays KA1 or KA2 are on for longer than 1 minute.
Solution:
Condition
Check the adjustment of the proximity switch
1
Recalibrate the loading table (refer to
Check the adjustment of the proximity switch
2
Recalibrate the loading table (refer to
Replace the diameter adjustment motor - M2 (refer to
3
Replacement, pg.
Recalibrate the loading table (refer to
Solution
Calibration of the Loading Table, pg.
Calibration of the Loading Table, pg.
3-14)
Calibration of the Loading Table, pg.
3-31)
3-31)
Diameter Adjustment Motor
3-31)
QUICK LOAD SERVO S3
1 - 3 1
