3 - 1 8

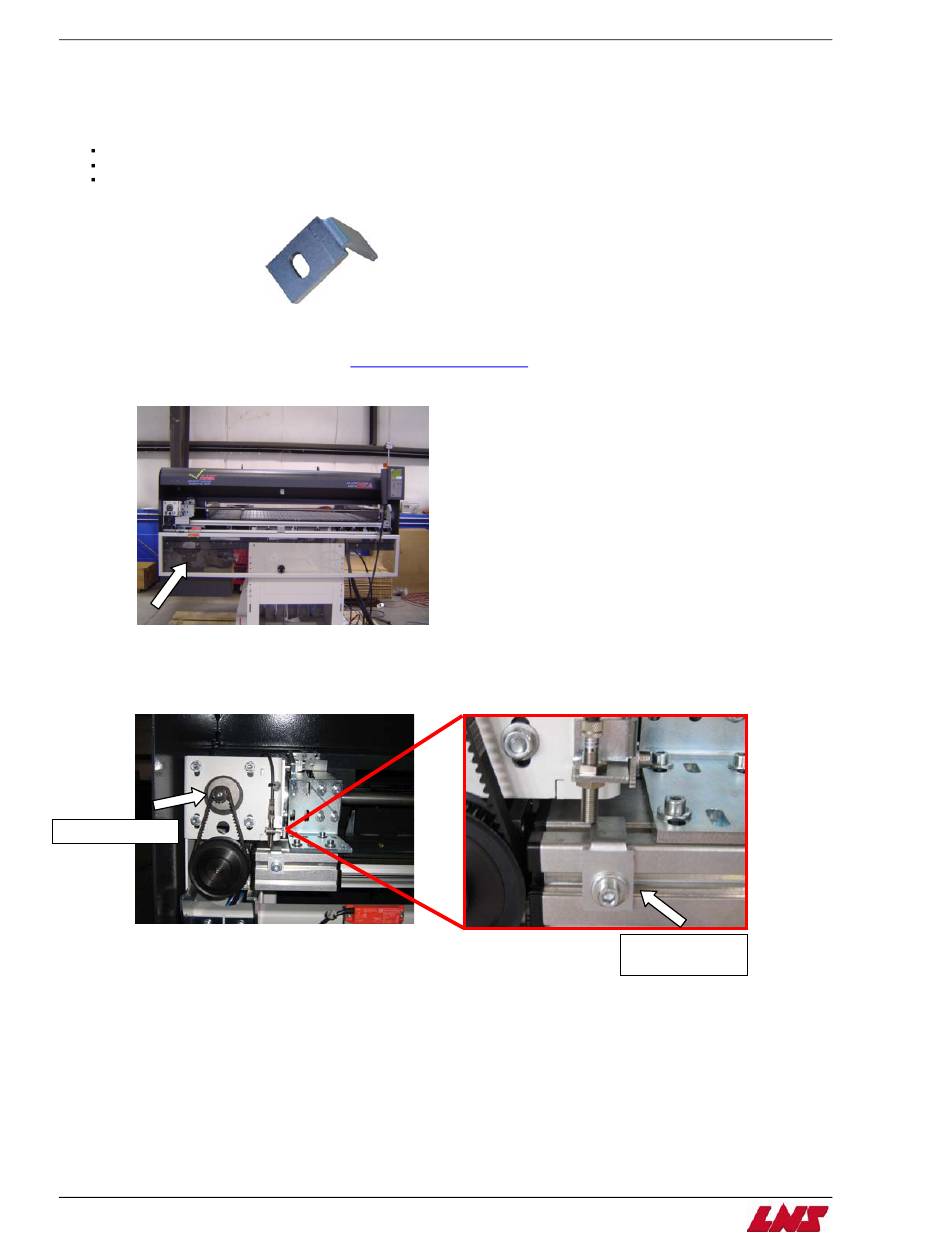

Home Position Proximity Switch Adjustment – SQ5
Conditions:
Bar feed power on.
Pusher at the mechanical home position against the reference plate (Servo amplifier should read "0.0"
Bar feed in STOP mode.
Tools:
•
Home Position Bracket
Procedure:
Step 13: Re-reference the bar feed. (Refer to the
Step 14: Open the main access cover.
Step 15: Using the servo drive belt, move the carrier away from the home position until the proximity switch is turned off. Slowly
rotate the drive belt until the switch just turns back on. At this point, the servo amplifier should read between 0.4 – 0.7.
Adjust the slotted home position bracket until 0.4 – 0.7 value is achieved.
Servo drive belt
Step 16: Close the main access cover.
QUICK LOAD SERVO S3
Reference Procedure, pg.
3-25).
Chapter 3: Procedures
Slotted home
position bracket
