Chapter 3: Procedures

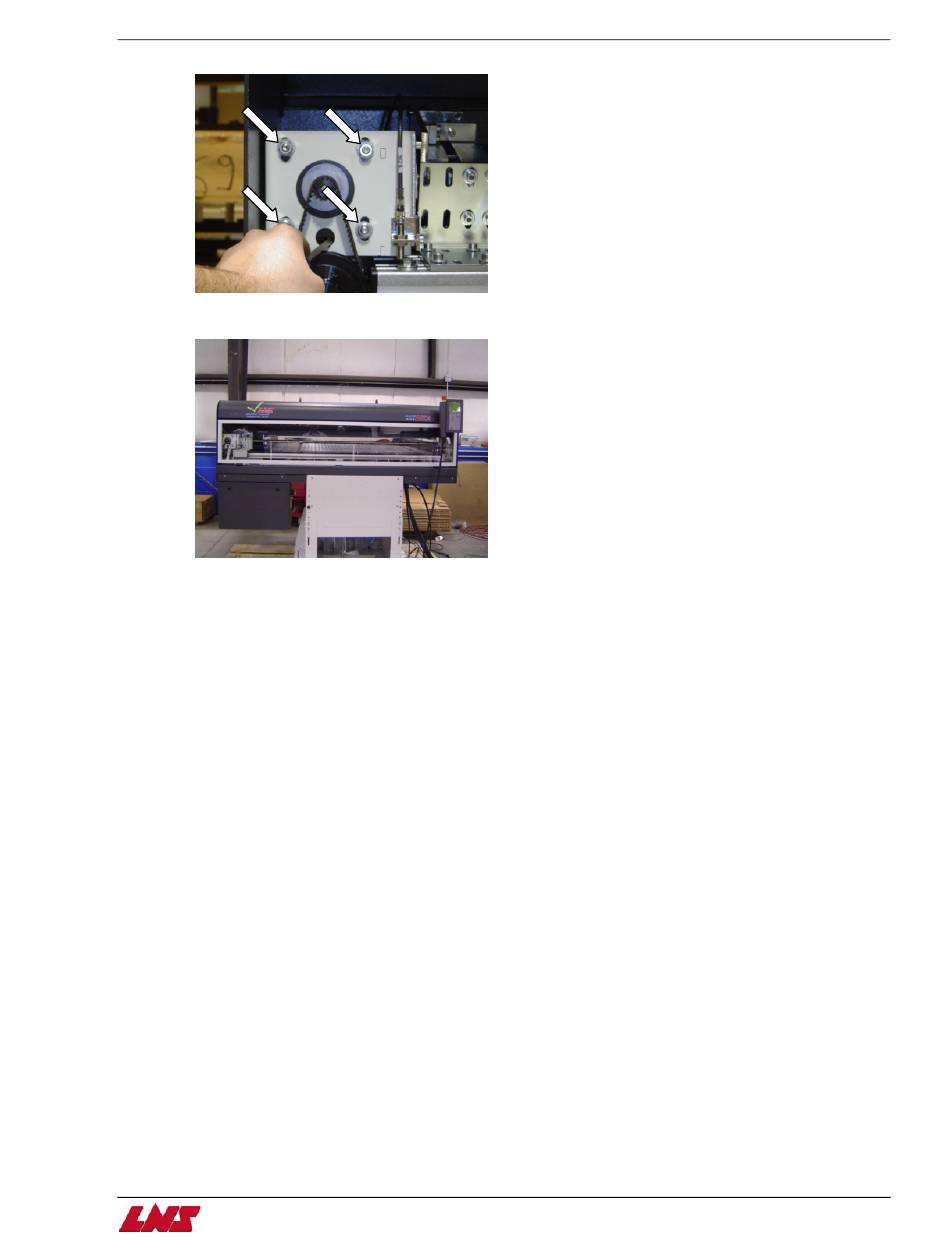

Step 4:
Holding the belt taut, tighten the four nuts on the motor mount plate.
Step 5:
Remove the lever and close the main access cover.
P
rocedure complete.
T
he following is a video clip of the Servo Motor Belt Tension Adjustment procedure. Must have the electronic file to play. This movie
may take several seconds to begin.
3 - 1 3
QUICK LOAD SERVO S3
