Linear Rail Assembly - LNS QUICK LOAD SERVO S3 Troubleshooting And Spare Parts Manual

Chapter 7: Spare Parts

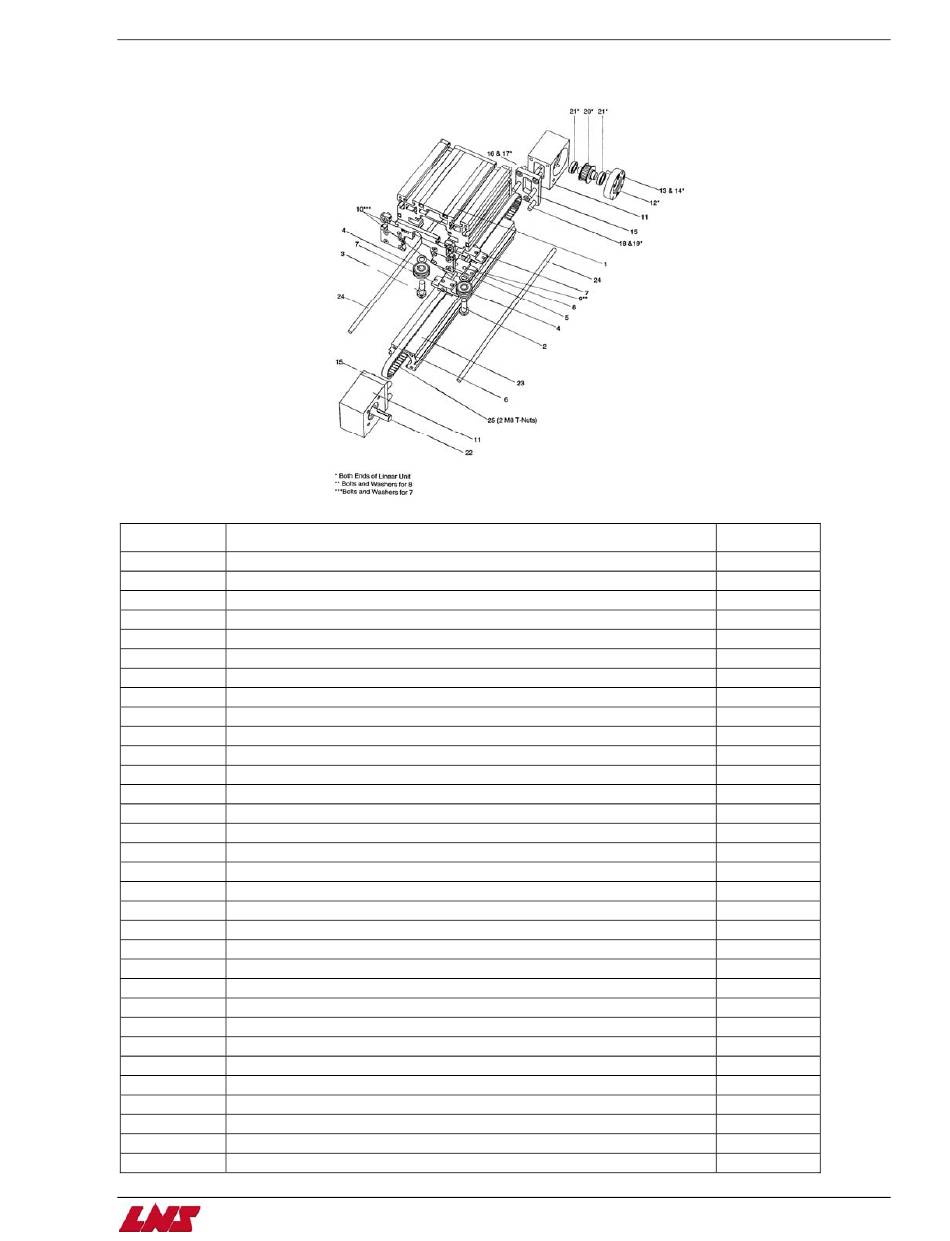

Linear Rail Assembly

Item #
1 Belt guide table
2 8 x 24 mm bolt, washer
3 8 x 25 mm eccentric bolt, nut, washer
4 Belt guide bearings, grooved OD
5 End caps black plastic
4 x 12 mm screws, DIN 7971
Felt wiper
Spring
Plastic cover
6 Belt, 3868 mm
7 Belt clamp assembly
Top
Bottom, profile
3 x 5 mm belt clamp screws
8 Belt tensioner
9 4 x 10 mm screws & washers
10 4 x 35 mm adjustment screws
11 Drive box
12 Bearing housing
13 4 x 12 mm screws, DIN 7984
14 4 mm serrated Belleville washer
15 Adapter plates
16 5 x 14 mm adapter plate screws, DIN 7984
17 5 x 16 mm adapter plate screws, DIN 912
18 5 x 25 mm adapter plate screws, DIN 7984
19 5 mm serrated Belleville washers
20 Gear shafts
21 Drive box bearings
22 20 x 3 mm key
23 Extrusion, 1830mm
24 Rod, 1828 mm
25 T-slot
Item Description
7 - 1 7
Qty
1
2
2
4
2
16
4
4
4
1
2
2
2
8
1
4
2
2
2
6
6
2
4
2
8
14
2
4
2
1
2
2
QUICK LOAD SERVO S3
