Chapter 3: Procedures
Alignment Procedure
This procedure is used to align the barfeed.
Procedure:
Conditions:
Bar feed power off.
No air pressure.
Step 1:

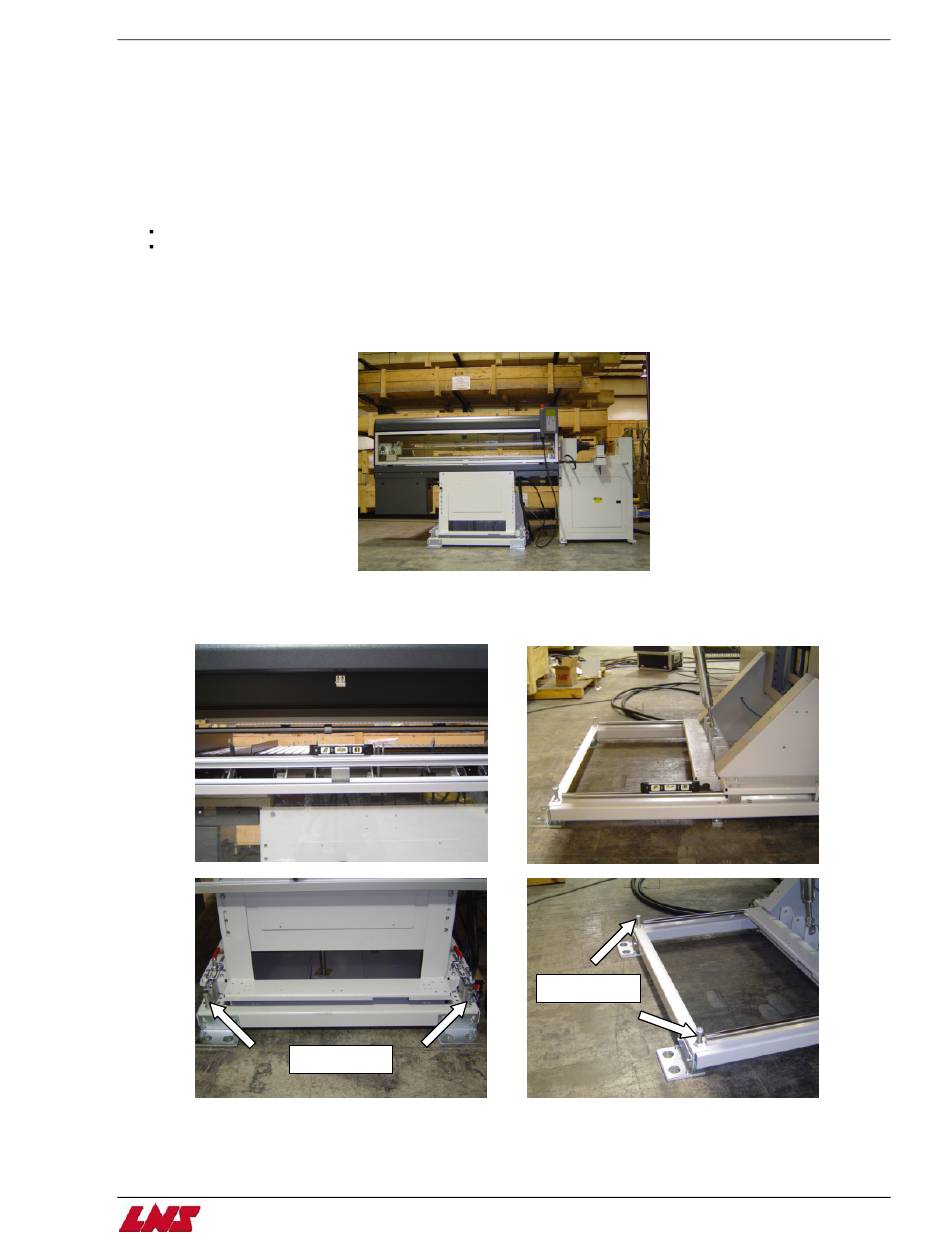

Position the bar feed as close as possible to the rear of the lathe. The distance between the front of the bar feed and the
back of the spindle should be as small as possible. Note: If obstacles prevent the bar feed from being positioned within 8
inches of the back of the spindle an extension will be required.
Step 2:
Level the bar feed in the x and y axis using a torpedo level. The level can be placed on the linear belt rail to verify the y-axis
and on the retract rails to verify the x-axis. Use the leveling screws on the retract to adjust unit to level.
Leveling screws
Leveling screws
QUICK LOAD SERVO S3
3 - 3
