3 - 1 6

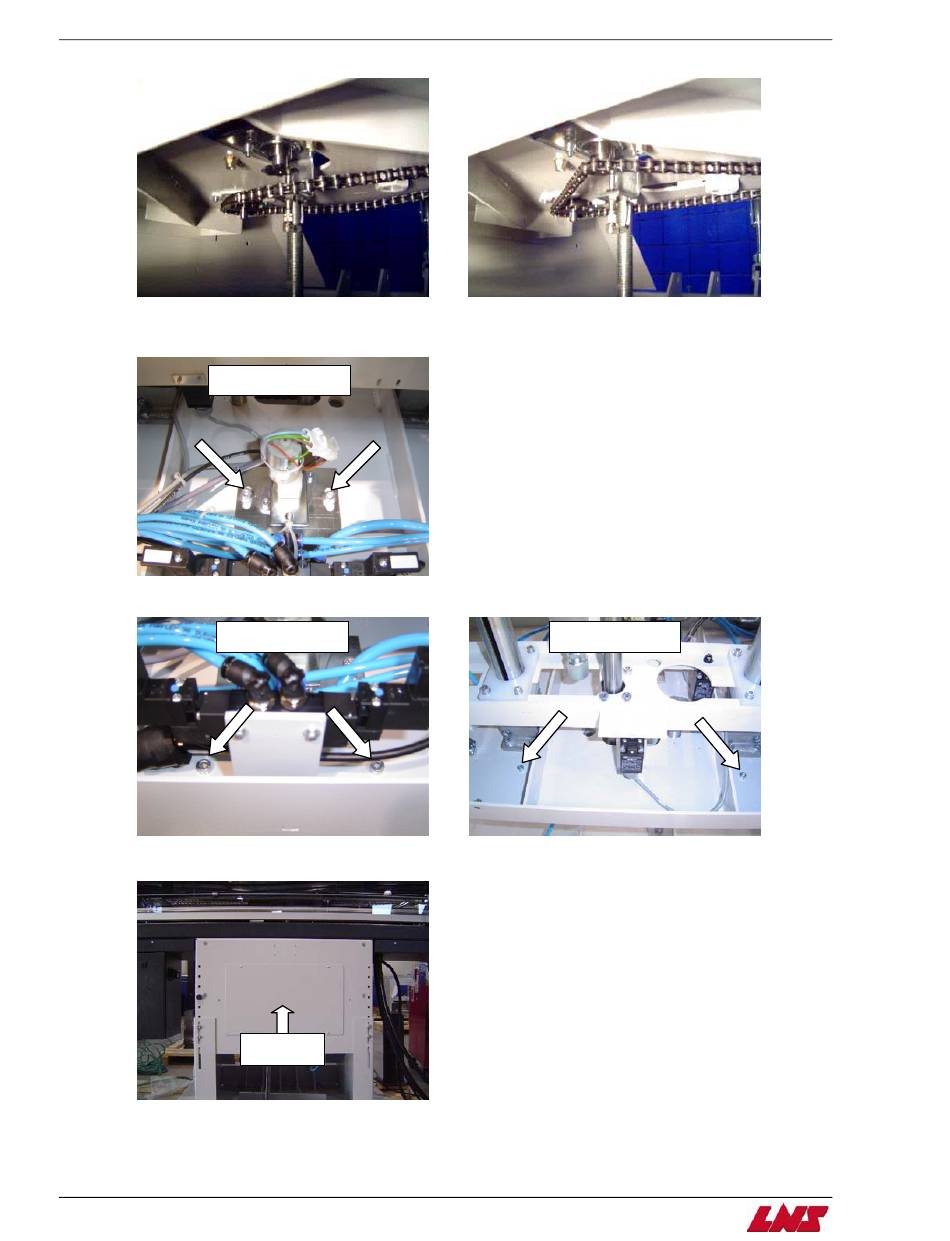

Step 8:
Connect the SQ4 cable to the new mounted proximity switch and reconnect the chain.
Step 9:
While pulling the motor toward the front of the bar feed to keep the chain taut, tighten the two screws for the motor
assembly.
View from front panel
Step 10: Reassemble the chain guard.
View from front panel
Step 11: Reassemble the front panel.
QUICK LOAD SERVO S3
Front panel
Chapter 3: Procedures
View from rear panel
