Install the Tank Hose

Note:
Because the machine's hydraulic tank is located above the tank connections, there will be
significant hydraulic fluid leakage when the tank fittings are loose. Hydraulic fluid loss may be
reduced by applying vacuum to the fill port of the tank during this phase of installation.

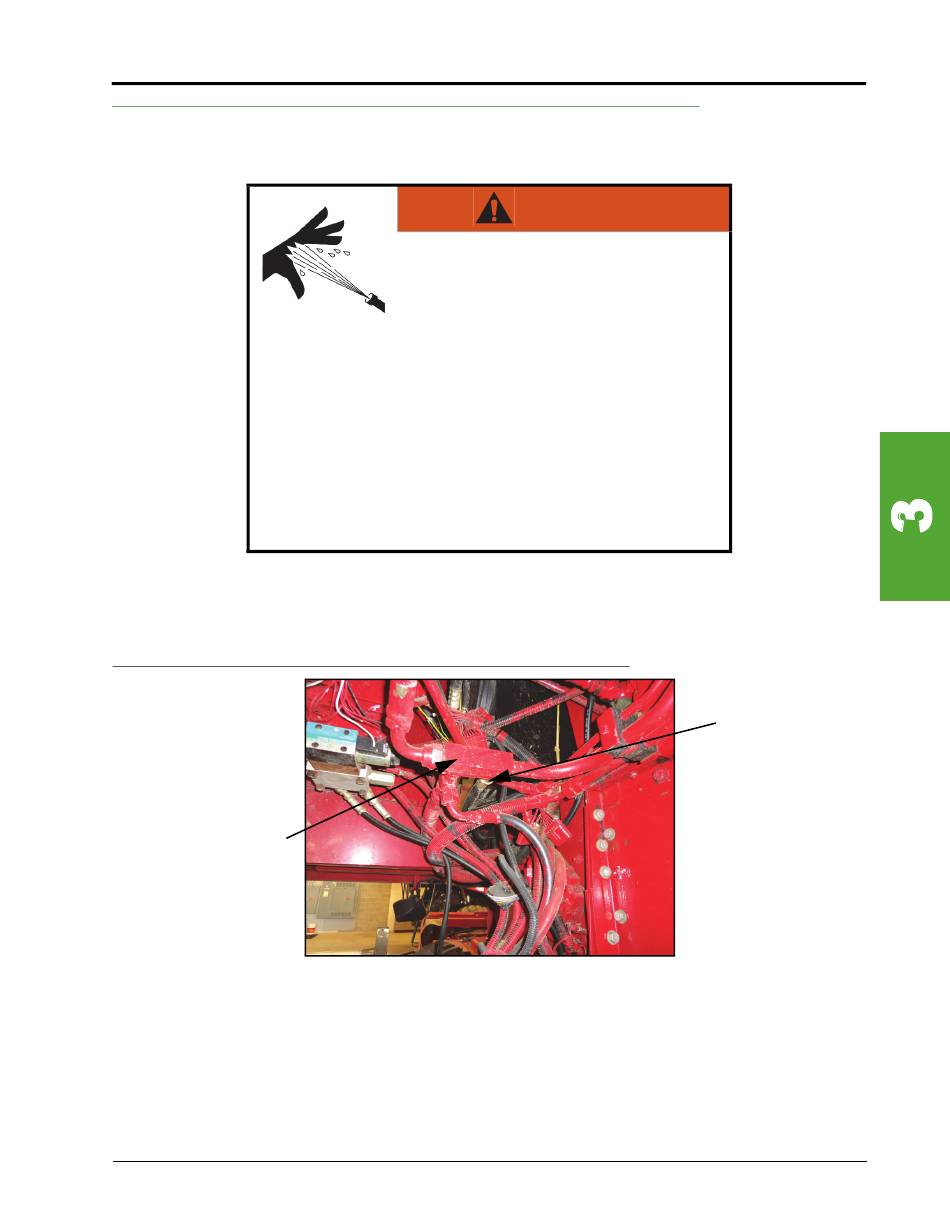

Machine's Steering Orbital Tank Hose
FIGURE 13.
Tank Manifold
Disconnect the steering orbital's tank hose from the tank manifold.
1.
Note:
The tank manifold is located above the front left axle.
Manual No. 016-5032-023 Rev. A
WARNING
Hydraulics are under pressure. Care should
always be taken with a system that has been
pressurized.
Before beginning the SmarTrax hydraulic
installation, turn off the machine and relieve
pressure by turning the steering wheel left and
right.
Never work on a hot machine. Always allow it to
cool before performing diagnostics,
maintenance, or routine service.
When disconnecting or purging hydraulic
hoses, be aware that the hydraulic fluid within
the machine's system may be extremely hot
and under high pressure.
Hydraulic System Installation
Machine's
Steering Orbital
Tank Hose
