Raven SmarTrax Installation Manual page 11

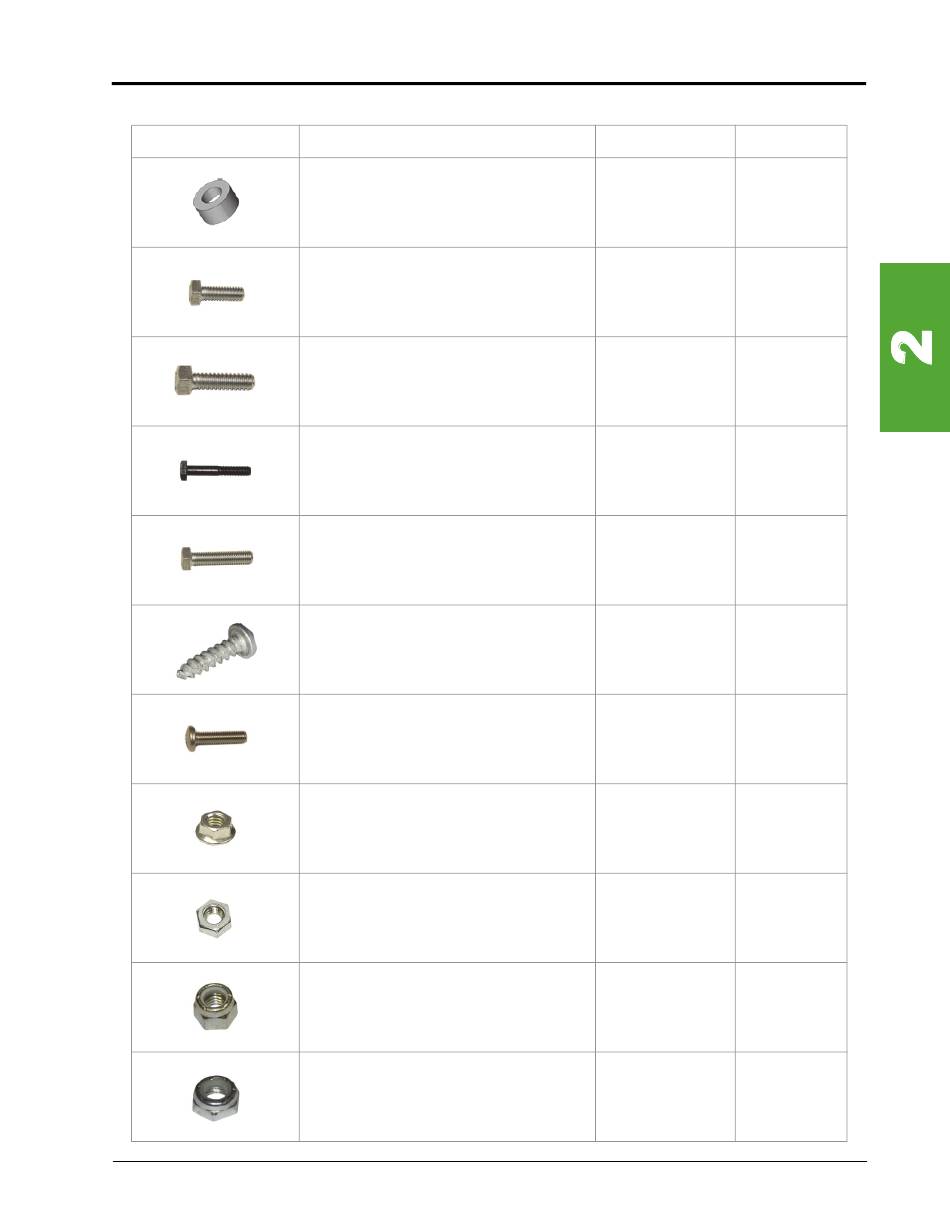

SmarTrax Installation Kit (P/N 117-5032-023)
TABLE 1.
Manual No. 016-5032-023 Rev. A
Item Description
Spacer - 0.406" ID x 0.75" OD x 0.375" Long
Bolt - 5/16"-18 x 7/8" Hex
Bolt - 5/16"-18 x 1-3/4" Hex
Bolt - M10 x 1.5 x 60mm Hex
Bolt - M10 x 1.5 x 40mm Hex
Screw - #8-32 x 3/4" Self-Tapping
Screw - #8-32 x 3/4" Machine
Nut - 5/16"-18 Flanged Lock
Nut - M10 x 1.5 Jam
Nut - M10 x 1.5 Lock
Nut - 3/8"-16 Lock
Introduction
Part Number Qty.
107-0172-103 1
311-0052-104 4
311-0052-108 2
311-0070-025 1
311-0070-039 1
310-1002-070 2
311-0007-041 4
312-1001-169 6
312-1002-035 2
312-4000-208 2
312-4001-109 3
