INSTALL THE PRESSURE HOSE

1. Locate and remove the gauge port fitting on the end of the machine's pressure line.
NOTE: The pressure line runs on the inside of the frame from the rear of the machine. The line bends 45° just
before the hydraulic hose connection. Trace the pressure line from the pressure port of the steering
orbital if necessary.
2. Install a -6 ORFS M/M/F swivel run tee adapter fitting (P/N 333-0012-069) on the steel pressure line.
3. Install the machine's gauge port fitting on the opposite end of the installed tee fitting.
4. Install the straight end of the supplied hydraulic hose (P/N 214-1000-884) on the 90° end of the installed tee
fitting.
5. Connect the 90° end of the installed hydraulic hose to the fitting installed in Port P of the SmarTrax valve.

INSTALL THE TANK HOSE

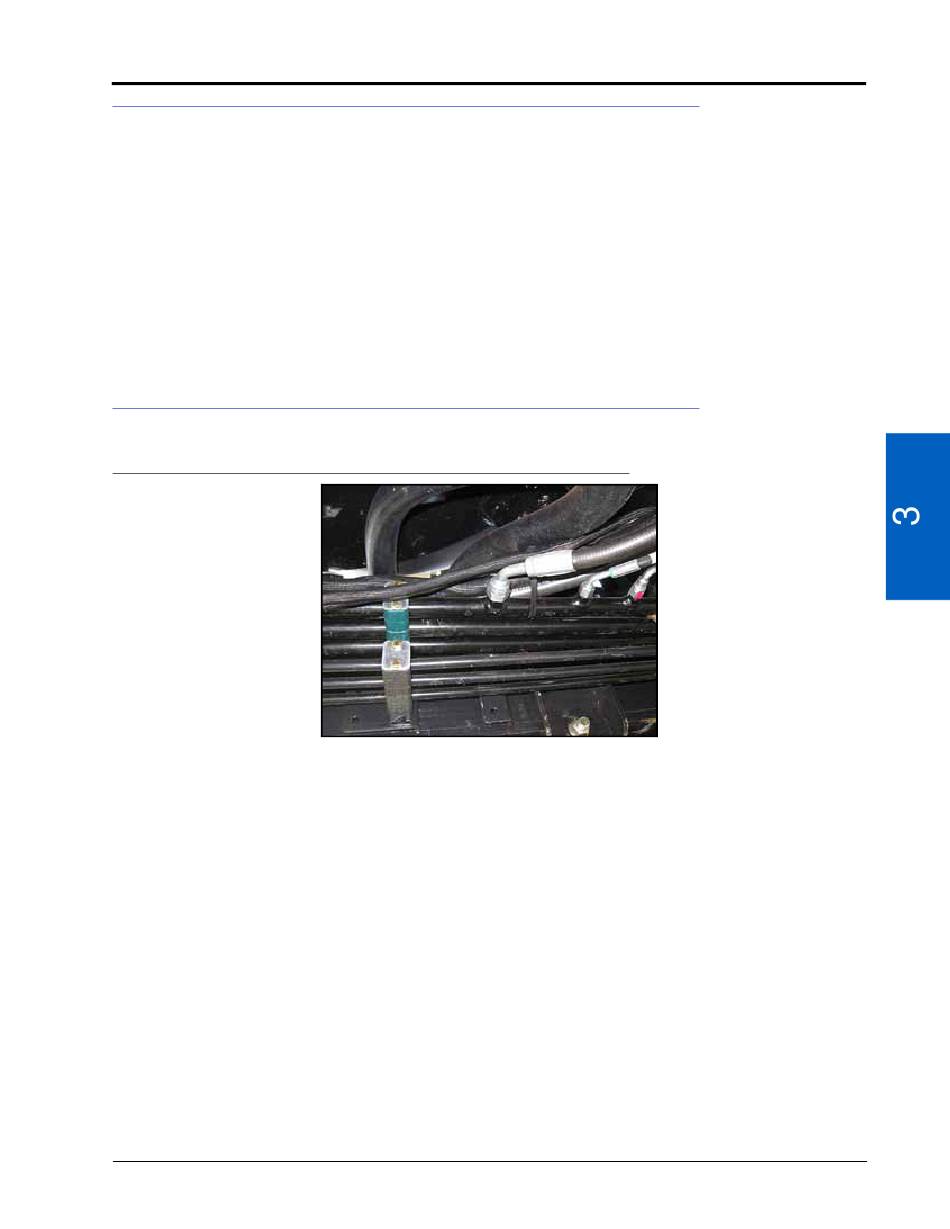

FIGURE 10. Machine's Steel Tank Line
1. Locate and disconnect the machine's tank hose from the steel tank line.
NOTE: The steel tank line runs on the inside of the frame from the rear of the machine. Trace the tank line
from the tank port of the steering orbital if necessary.
2. Install a -8 ORFS M/M/F swivel run tee adapter fitting (P/N 333-0012-028) on the steel tank line.
3. Connect the machine's tank hose to the opposite end of the installed tee fitting.
4. Install the -8 end of the supplied hydraulic hose (P/N 214-1000-885) on the 90° end of the installed tee fitting.
5. Connect the -6 end of the installed hydraulic hose to the fitting installed in Port T of the SmarTrax valve.
Manual No. 016-5032-037 Rev. A
HYDRAULIC SYSTEM INSTALLATION
19
