Raven SmarTrax Installation Manual page 19

Disconnect the machine's right steering hose from the bulkhead connection.
2.

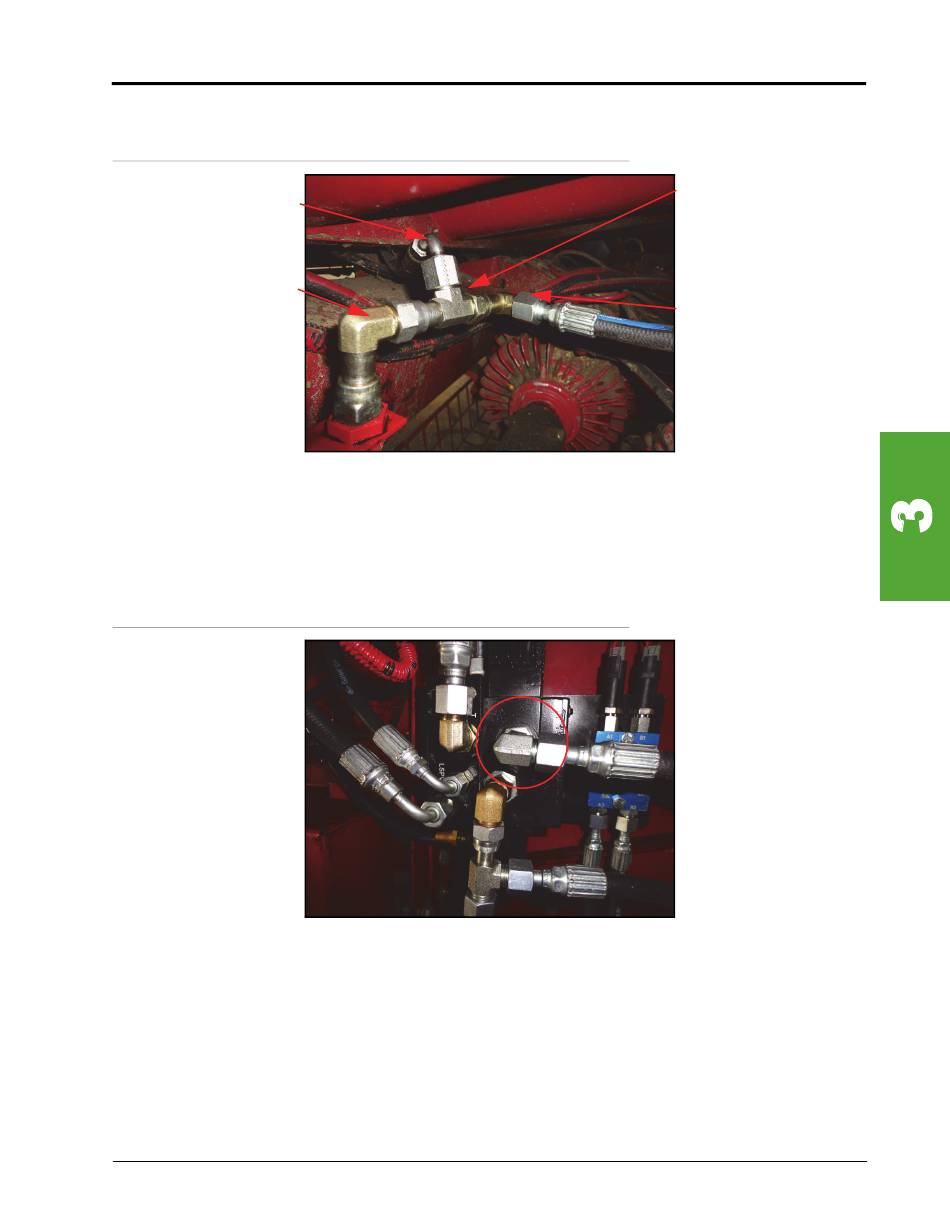

Right Steering Hose Installed on Bulkhead
FIGURE 5.
Machine's Right
Steering Hose
P/N 333-0012-067
Install a -8 ORFS M/F 90° elbow fitting (P/N 333-0012-067) on the machine's open bulkhead port.
3.
Install a -8 ORFS M/M/F swivel run tee adapter fitting (P/N 333-0012-028) on the installed elbow fitting.
4.
Connect the machine's right steering hose to the 90° end of the installed tee fitting.
5.
Install the 90° end of the supplied hydraulic hose (P/N 214-1000-961) on the remaining end of the installed
6.
tee fitting.
Right Steering Hose Installed on SmarTrax Valve
FIGURE 6.
Connect the straight end of the installed hydraulic hose to the fitting installed in Port B of the SmarTrax
7.
valve (P/N 334-0003-088).
Note:
It may be necessary to install a -6 ORFS M/F 90° elbow fitting (P/N 333-0012-065) on the fitting
installed in Port B of the SmarTrax valve to achieve the connection.
Manual No. 016-5032-023 Rev. A
Hydraulic System Installation
P/N 333-0012-028
P/N 214-1000-961
Connected to Port B
of SmarTrax Valve
15
