Raven SmarTrax Installation Manual page 38

Chapter 5

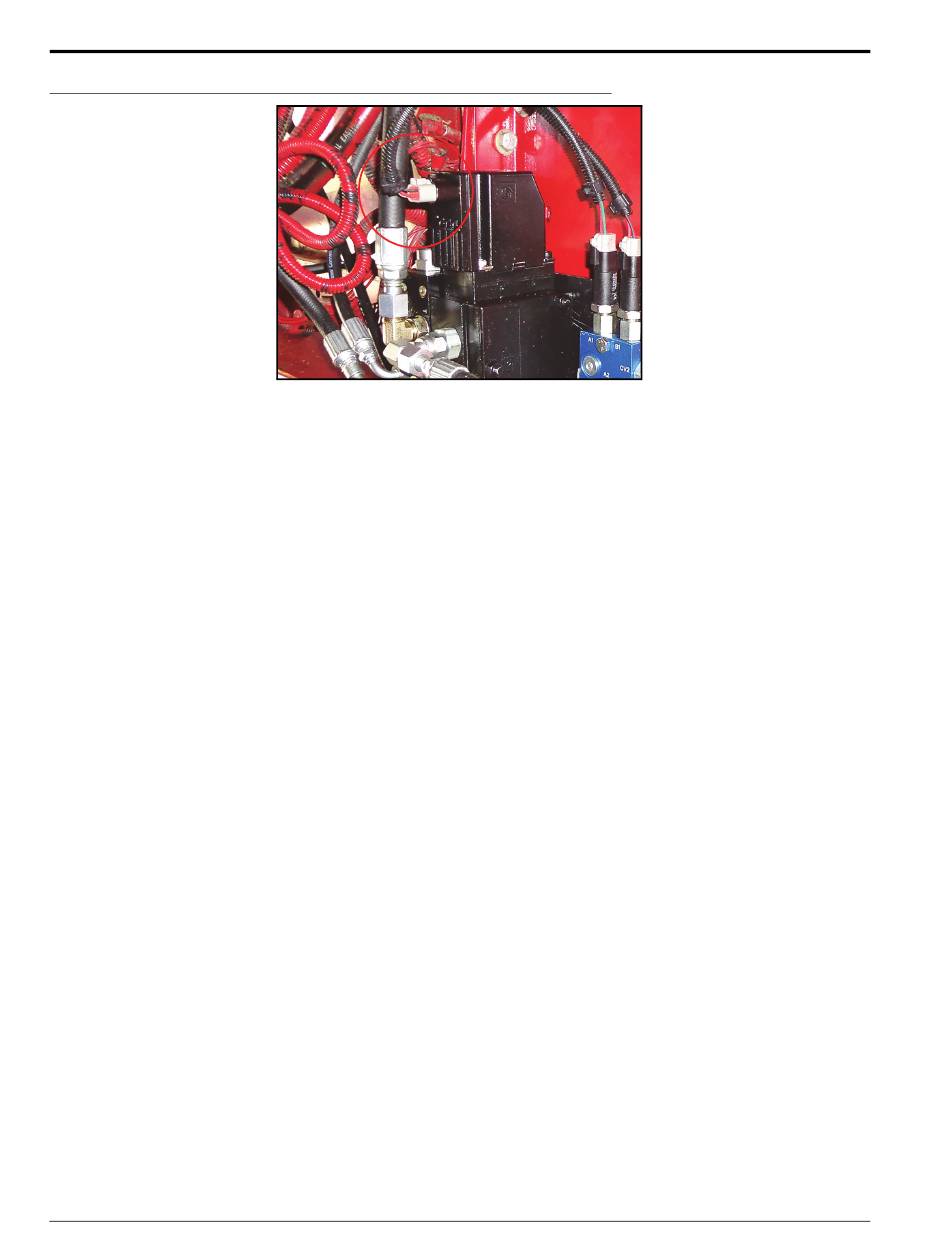

VALVE Connection
FIGURE 10.
Connect the VALVE connector to the open PVE port of the SmarTrax valve (P/N 334-0003-088).
4.
Locate the WAS connectors and route the cables toward the left steering cylinder, securing them away from
5.
moving parts and heat sources with plastic cable ties as necessary.
Connect the 5V WAS connector to the installed WAS (P/N 063-0181-021).
6.
Loop and tie-off the 12V WAS cable connection, securing it with plastic cable ties as necessary.
7.
Note:
The 12V WAS connector is not used in the SmarTrax system. Ensure the cable is secured away
from moving parts and heat sources.
34 Case IH 2X44, 2X66, 2X77, and 2X88 Series Combines SmarTrax™ Installation Manual
