Install The Pressure Hose - Raven SmarTrax Installation Manual

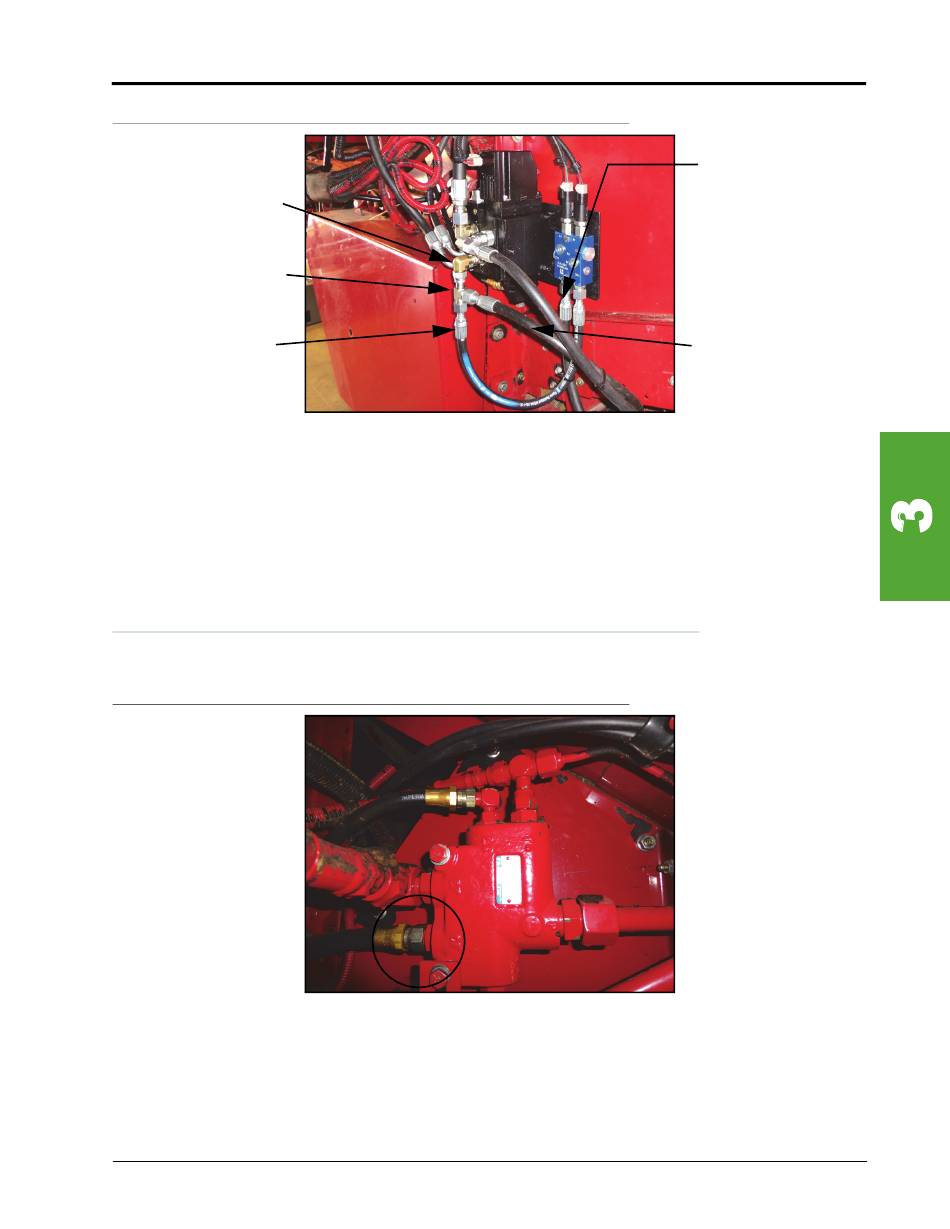

Left Steering Hoses Installed on SmarTrax Valve and Flow Switch
FIGURE 9.
P/N 333-0012-065
-6 ORFS M/F 90°
Elbow Fitting
P/N 333-0012-069 -6
ORFS M/M/F Swivel
Run Tee Fitting
P/N 214-1000-964
Connected to Flow
Switch and Port A
of SmarTrax Valve
Connect the other end of the installed hydraulic hose to the tee fitting installed in Port A of the SmarTrax
12.
valve.
Install one end of the supplied hydraulic hose (P/N 214-1000-964) on the fitting installed in the B port of the
13.
flow switch.
Connect the other end of the installed hydraulic hose to the remaining end of the tee fitting installed in Port
14.
A of the SmarTrax valve.

Install the Pressure Hose

Machine's Pressure Hose
FIGURE 10.
Disconnect the machine's pressure hose from port CF of the machine's priority valve.
1.
Manual No. 016-5032-023 Rev. A
Hydraulic System Installation
P/N 214-1000-963
Connected to
Machine's Left
Steering Hose
P/N 214-1000-962
Connected to Left
Bulkhead Port and
Port A of SmarTrax
Valve
