Raven SmarTrax Installation Manual page 20

Chapter 3

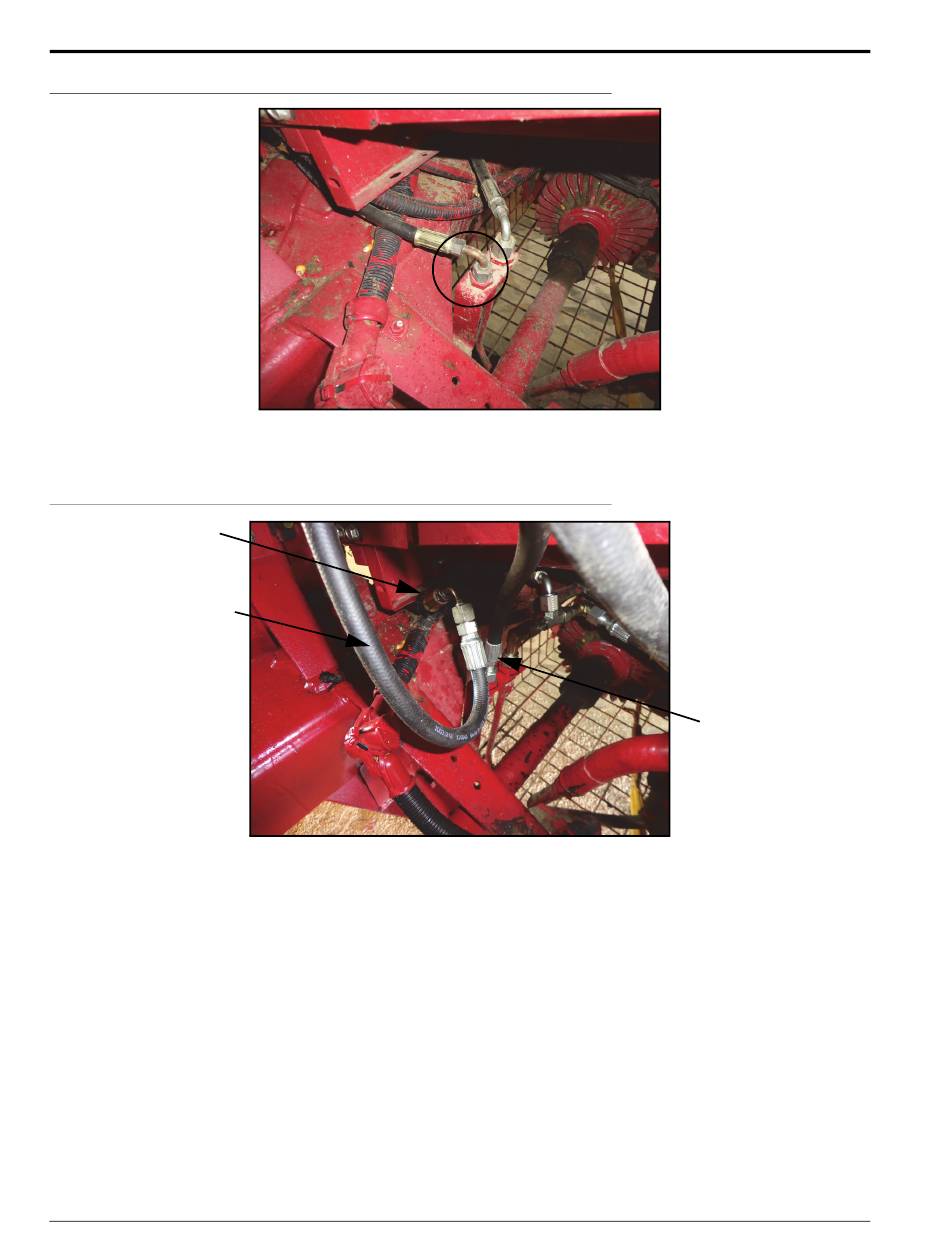

Machine's Left Steering Hose Connections
FIGURE 7.
Disconnect the machine's left steering hose from the bulkhead connection.
8.
Left Steering Hose Installed on Bulkhead
FIGURE 8.
Machine's Left
Steering Hose
P/N 214-1000-963
Connected to
Machine's Left
Steering Hose and
Port A of Flow
Switch
Install the male end of the supplied hydraulic hose (P/N 214-1000-963) on the end of the machine's left
9.
steering hose.
Connect the female end of the installed hydraulic hose to the fitting installed in the A port of the flow switch
10.
(P/N 334-0003-085).
Install one end of the supplied hydraulic hose (P/N 214-1000-962) on the machine's open bulkhead port.
11.
16 Case IH 2X44, 2X66, 2X77, and 2X88 Series Combines SmarTrax™ Installation Manual
P/N 214-1000-962
Connected to
Machine's Bulkhead
Fitting and Port A of
SmarTrax Valve
