Chapter 3

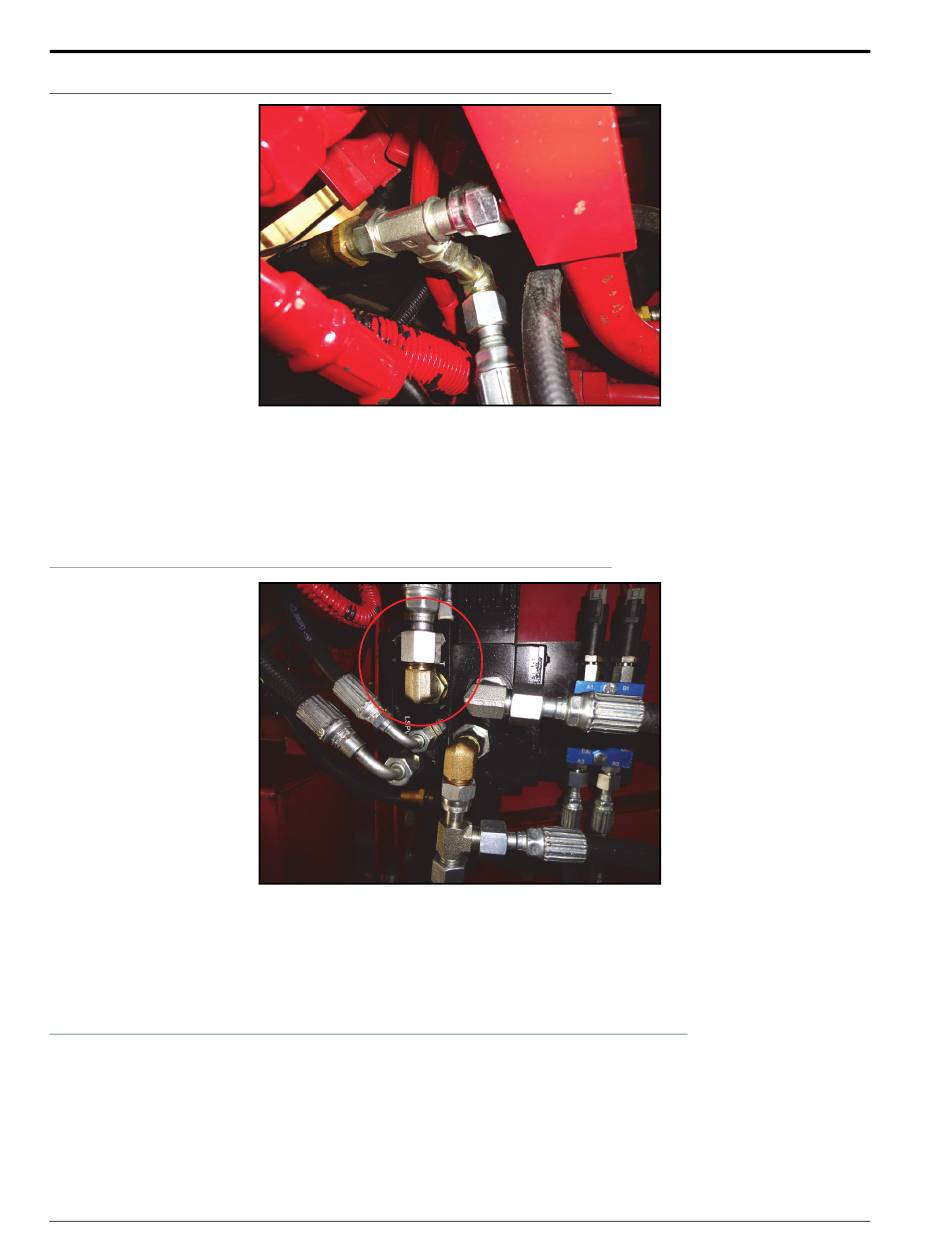

Tank Hose Installed on the Tank Manifold
FIGURE 14.
Install a -8 ORFS M/M/F swivel run tee adapter fitting (P/N 333-0012-028) in the open port of the tank
2.
manifold.
Connect the machine's tank hose to the opposite end of the installed tee fitting.
3.
Install one end of the supplied hydraulic hose (P/N 214-1000-966) on the 90° end of the installed tee fitting.
4.
Tank Hose Installed on the SmarTrax Valve
FIGURE 15.
Connect the other end of the installed hydraulic hose to the fitting installed in Port T of the SmarTrax valve
5.
(P/N 334-0003-088).

Install the Load Sense Hoses

Note:
Install -4 ORFS M/F 90° elbow fittings (P/N 333-0012-023) as necessary to achieve any of the
hose connections outlined in this section.
20 Case IH 2X44, 2X66, 2X77, and 2X88 Series Combines SmarTrax™ Installation Manual
