Raven SmarTrax Installation Manual page 25

Machine's Load Sense Hose

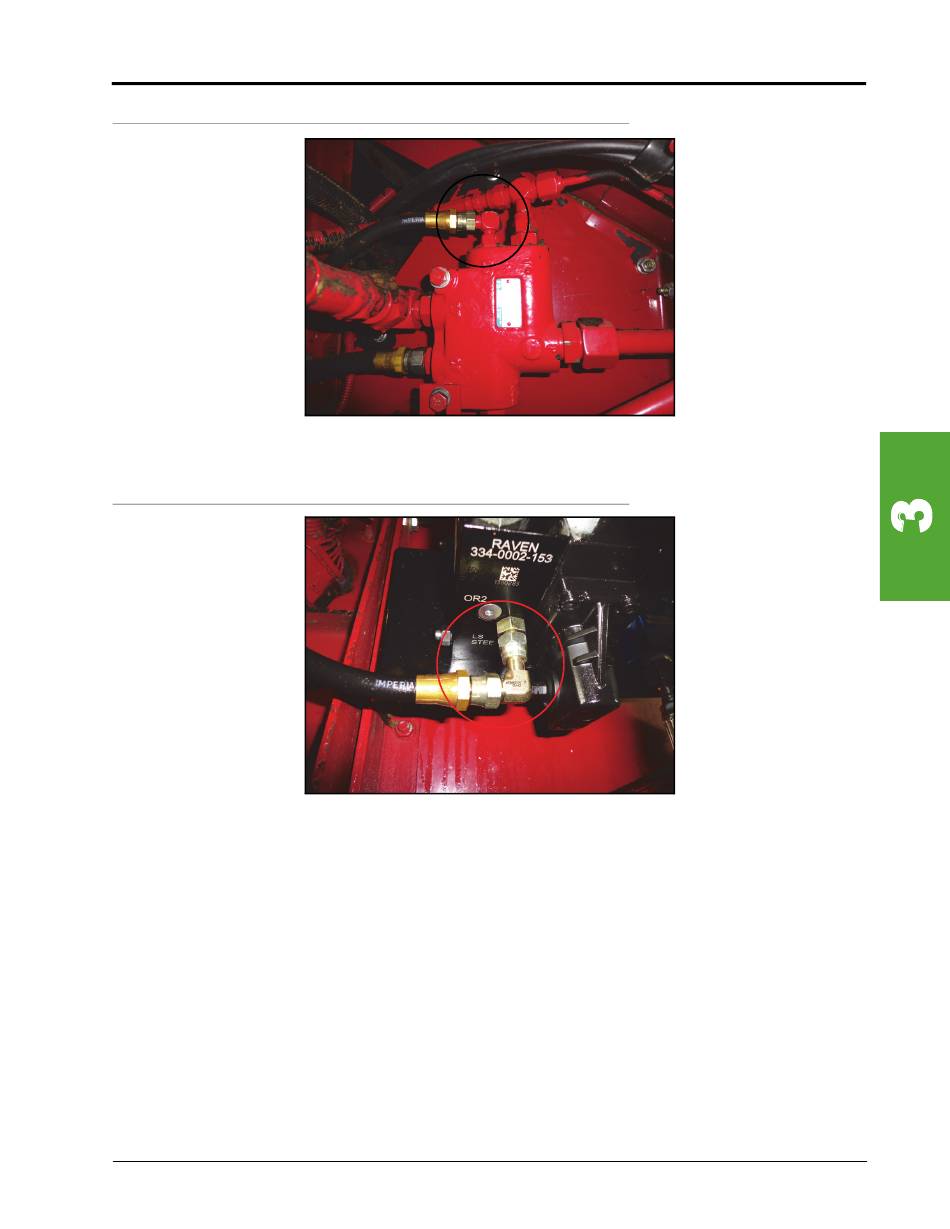

FIGURE 16.
Disconnect the machine's load sense hose from port LS of the machine's priority valve.
1.
LS STEER Connection
FIGURE 17.
Connect the machine's load sense hose to the fitting installed in Port LS STEER of the SmarTrax valve
2.
(P/N 334-0003-088).
Install the straight end of the supplied hydraulic hose (P/N 214-1000-960) in the open LS port of the
3.
machine's priority valve.
