Chapter 4
Turn the machine's rear wheels until the steering cylinder on the back-left side of the machine is fully
1.
retracted.

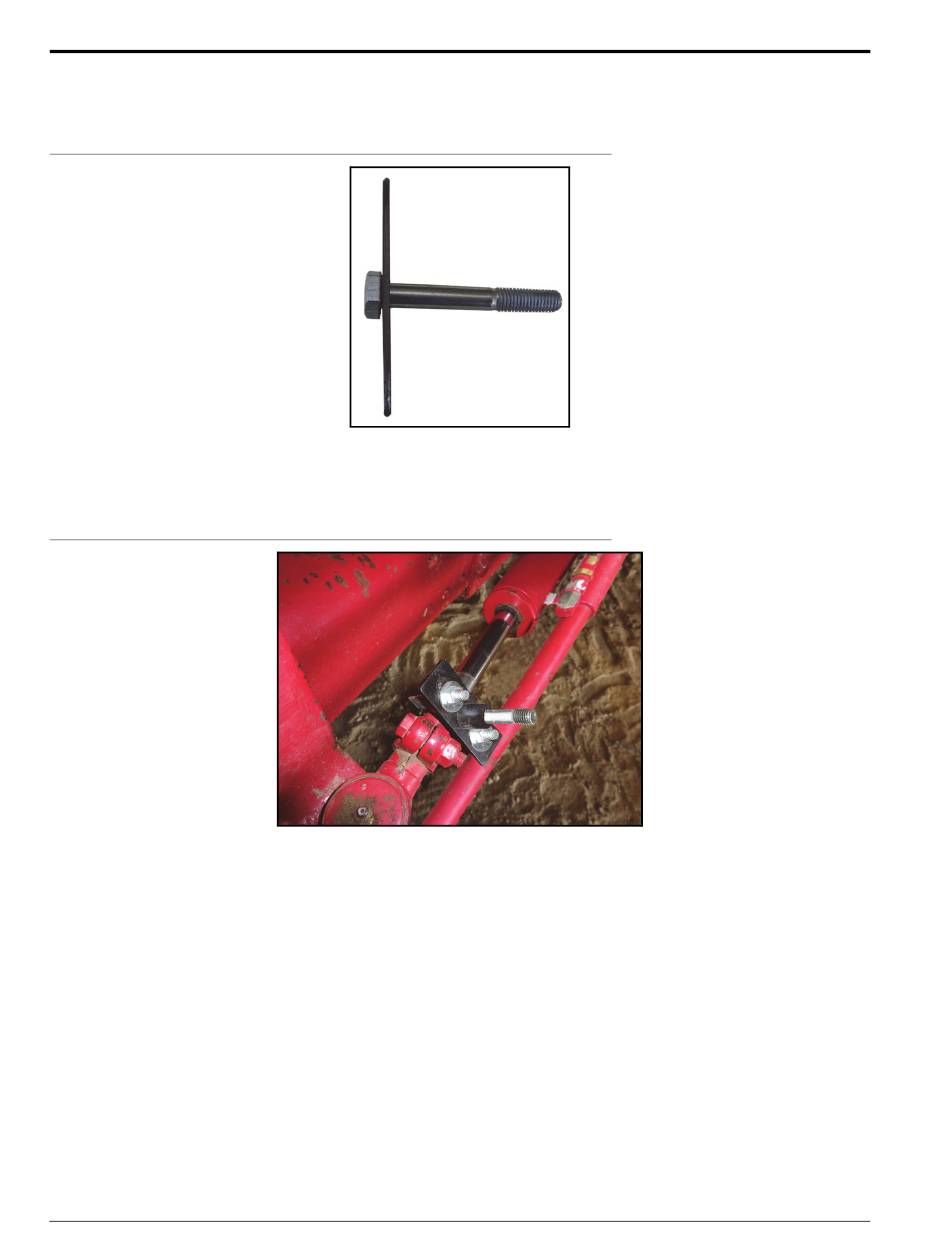

WAS Rod Mounting Bracket Assembly
FIGURE 3.
Insert the M10 x 1.5 x 60 mm hex bolt (P/N 311-0070-025) in the center hole of the WAS rod mounting
2.
bracket (P/N 107-0172-030).
Rod-End Sensor Bracket Installed on the Machine
FIGURE 4.
Remove the nuts and clamp from the 1-1/4" muffler clamp (P/N 435-3003-056).
3.
Install the U-bolt around the end of the steering cylinder rod with the U-bolt legs pointing up and slightly
4.
toward the rear of the machine.
Install the clamp on the ends of the U-bolt.
5.
Reinstall the muffler clamp nuts on the U-bolt.
6.
Note:
Do not fully tighten the nuts.
Install the WAS rod mounting bracket assembly on the muffler clamp with the M10 bolt pointing up.
7.
Install one 5/16"-18 flanged lock nut (P/N 312-1001-169) on each leg of the U-bolt.
8.
Note:
Do not fully tighten the nuts.
Install the 0.406" ID x 0.75" OD x 1" long spacer (P/N 107-0172-038) on the M10 bolt protruding from the
9.
WAS rod mounting bracket.
