Raven SmarTrax Installation Manual page 13

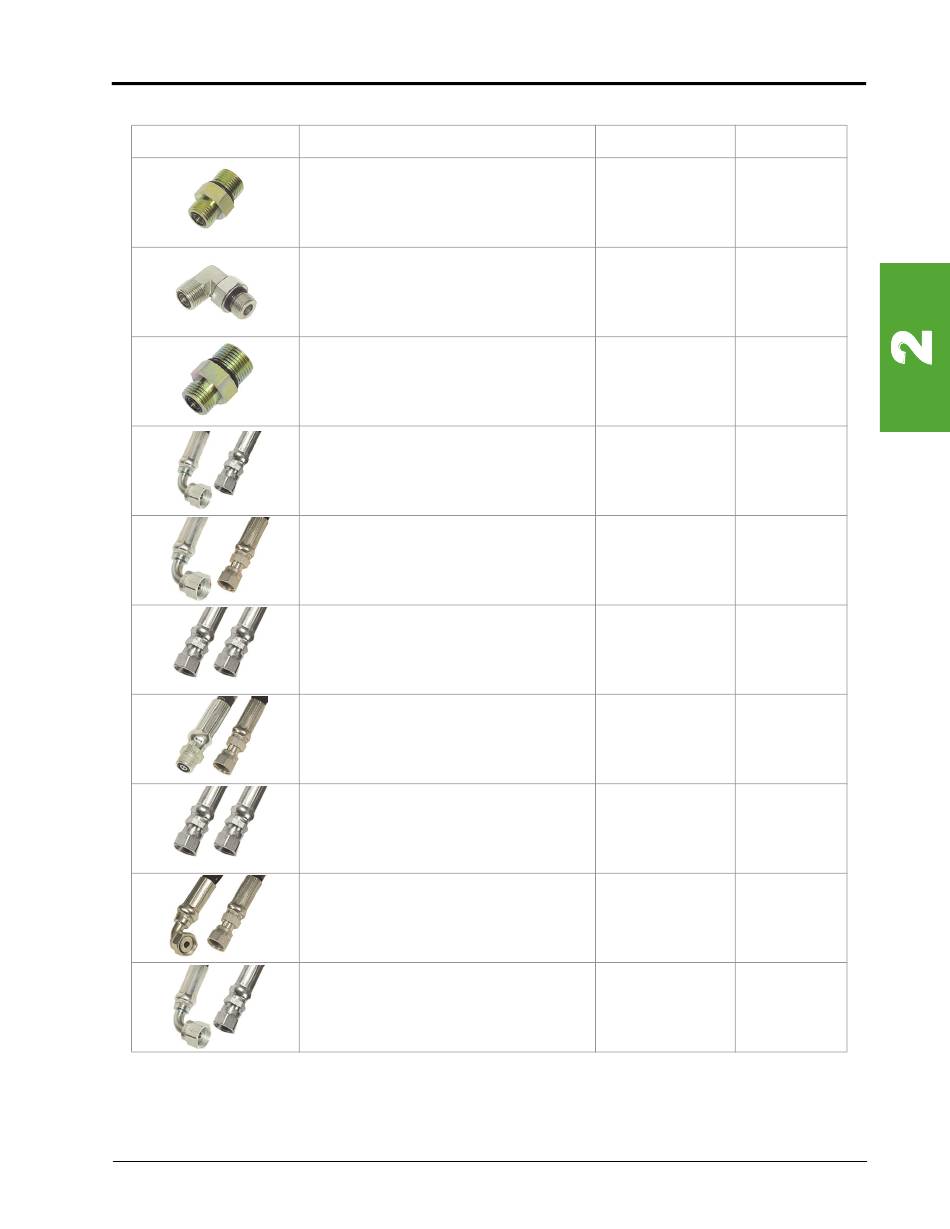

Hydraulic Installation Kit (P/N 117-0199-127)
TABLE 2.
Manual No. 016-5032-023 Rev. A
Item Description
Fitting - -6 ORFS (M) to -8 SAE O-Ring (M)
Straight Adapter
Fitting - -8 ORFS (M) to -8 SAE O-Ring (M)
90° Elbow
Fitting - -6 ORFS (M) to -10 SAE O-Ring (M)
Straight Adapter
Hydraulic Hose - -4 ORFS (F) 90° to -4
ORFS (F) - 36"
Hydraulic Hose - -8 ORFS (F) 90° to -6
ORFS (F) - 36"
Hydraulic Hose - -6 ORFS (F) to -6 ORFS (F)
- 24"
Hydraulic Hose - -6 ORFS (M) to -6 ORFS
(F) - 20"
Hydraulic Hose - -6 ORFS (F) to -6 ORFS (F)
- 20"
Hydraulic Hose - -6 ORFS (F) 90° to -6
ORFS (F) - 30"
Hydraulic Hose - -8 ORFS (F) 90° to -8
ORFS (F) - 18"
Introduction
Part Number Qty.
333-0012-199 1
333-0012-229 1
333-0012-233 2
214-1000-960 1
214-1000-961 1
214-1000-962 1
214-1000-963 1
214-1000-964 1
214-1000-965 1
214-1000-966 1
9
