Raven SmarTrax Supplement Installation Manual

Gvm prowler
Hide thumbs Also See for SmarTrax:

Advertisement

Quick Links

Download this manual
GVM Prowler

Advertisement

loading
Need help?

Need help?

Do you have a question about the SmarTrax and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Raven SmarTrax

Summary of Contents for Raven SmarTrax

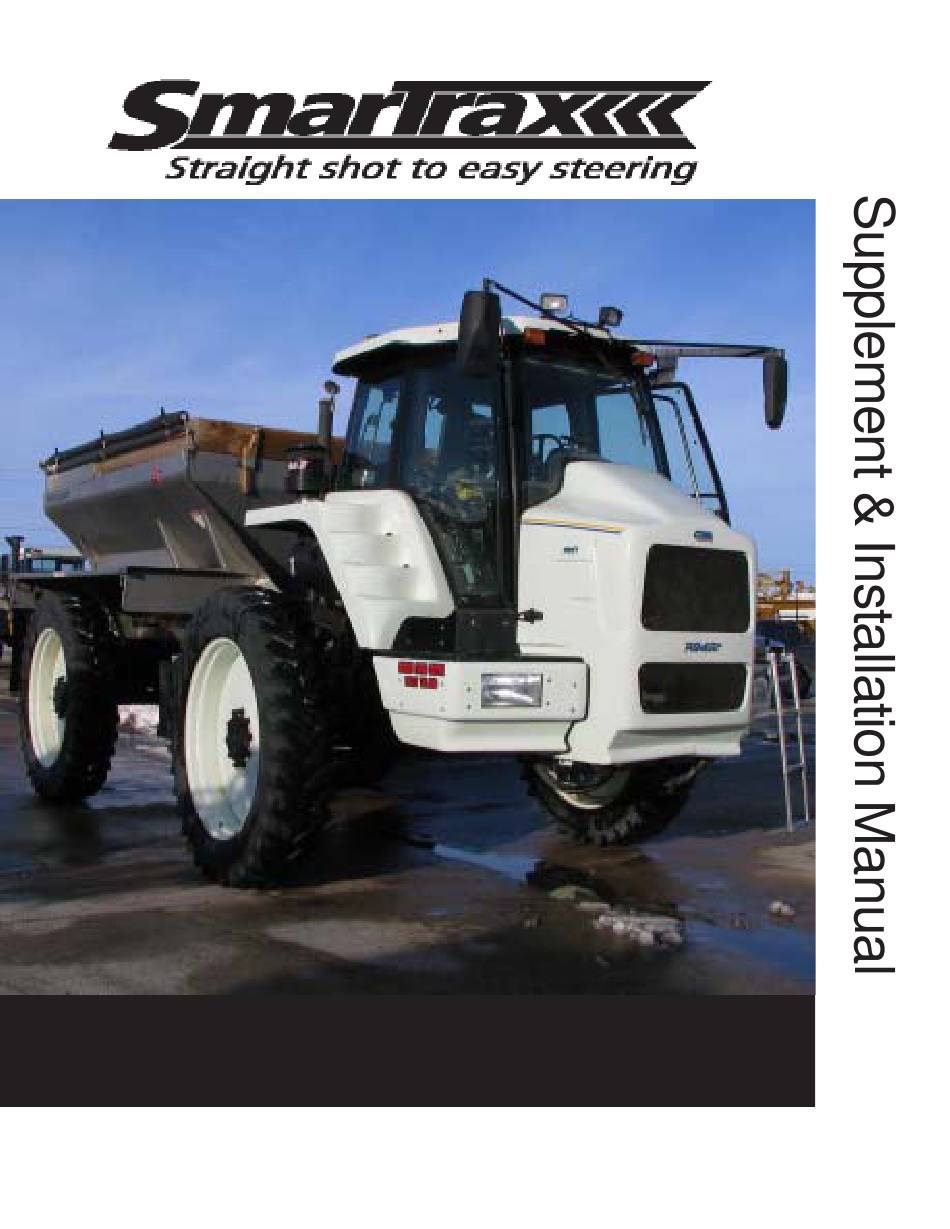

  • Page 1 GVM Prowler...
  • Page 2 Raven Industries shall not be responsible or liable for incidental or consequential damages or a loss of anticipated benefits or profits, work stoppage or loss or impairment of data arising out of the use or inability to use the Smartrax or any of its components.
  • Page 3 Manual # 016-0190-020 H A P T E R NTRODUCTION Congratulations on your purchase of the Raven SmarTrax system! This system is designed to provide cutting-edge, hands-free steering of your machine via GPS coordinates.

  • Page 4: Basic Kit

    GVM Prowler SmarTrax Installation Manual Below you will see the kit contents that you should have received with this SmarTrax kit. Basic Kit Contents GVM Prowler SmarTrax Kit Contents y t i e t I i r c i t p...
  • Page 5 Caution must be exercised. Any work carried out on the hydraulic system must be performed in accordance with the machine manufacturerer’s approved maintenance instructions. Raven Industries recommends that appropri- ate protective equipment be worn when working on the hydraulic system. Ob- jects or materials that are able to bypass the machine’s hydraulic filtration system...
  • Page 6 GVM Prowler SmarTrax Installation Manual We welcome your feedback about this manual. If you have any comments or Contacting suggestions for improvement, please let us know by contacting our Customer Raven Support Center by any of the following methods: Industries...
  • Page 7 Manual # 016-0190-020 H A P T E R OUNTING THE NIVERSAL RACKET AND ALVE Attach the universal mounting bracket on the right side of the machine using the Mounting the provided 1/2” hex head bolts. (See pictures below). Drill holes to fit the Universal mounting bracket pattern in the welded gusset between the right side frame rail and the cross-member support.
  • Page 8 GVM Prowler SmarTrax Installation Manual Mounting the Position the hydraulic valve on the universal bracket over the top of the proper hole pattern. Secure the valve to the bracket using the provided metric bolts and Hydraulic Valve lock washers. and Pressure...
  • Page 9 Manual # 016-0190-020 H A P T E R YDRAULICS Hose Routing & New hoses should be run so they follow the routing of the old hoses. Use the machines existing rubber-covered rings (shown in picture below) on the Connections underside of the frame to assist in routing.

  • Page 10: Pressure Hose

    (P/N 214-1000-133) with the straight adapter end to the pump. Route the hose along the frame to the P-Port on the Smartrax valve. Attach the end to the P port on the Raven Smartrax valve using a 90° fitting if necessary.
  • Page 11 Connect the 90° elbow of the Replacement Tank hose (P/N 214-1000-134) to the remaining open port on the tank port tee fitting on the Smartrax block. Connect the other end of the hose to the return oil manifold where the original...
  • Page 12 Connect the 90° end of the A-Port to Left Steer hose (P/N 214-1000-139) to the open tee port on the SmarTrax valve A Port. Connect the other end of the hose to the existing tee for the left steer cylinder.
  • Page 13 Manual # 016-0190-020...
  • Page 14 GVM Prowler SmarTrax Installation Manual Notes:...

  • Page 15: Position Sensor Installation

    Manual # 016-0190-020 H A P T E R TEERING OSITION ENSOR NSTALLATION Linear Steering *See Installation sheet found in the S.P.S. box for further mounting instruc- tions. Position Sensor Mounting The wired end of the wheel angle sensor is attached to the right steering cylinder using band clamps, screw and lock-nuts, and the mounting bracket.
  • Page 16 GVM Prowler SmarTrax Installation Manual The other end of the wheel angle sensor is attached to the moving arm of the steering linkage using the provided band clamps, screw, and locknuts, and the mounting bracket.

  • Page 17: Start-Up Procedures

    Manual # 016-0190-020 H A P T E R TART- ROCEDURES After installing the SmarTrax on your machine, always follow these start-up pro- cedures. Make sure the Steering Position Sensor does not over-extend or over- compress when turning the wheels.
  • Page 18 GVM Prowler SmarTrax Installation Manual Notes:...
  • Page 19 RAVEN INDUSTRIES LIMITED WARRANTY WHAT IS COVERED? This warranty covers all defects in workmanship or materials in your Raven Flow Control Product under normal use, maintenance, and service. HOW LONG IS THE COVERAGE PERIOD? This warranty coverage runs for 12 months from the purchase date of your Raven Flow Control Product.
  • Page 20 P.O. Box 5107 www.ravenprecision.com Sioux Falls, SD 57117-5107 fcdinfo@ravenind.com Notice: This document and the information provided are the property of Raven Industries, Inc. and may only be used as authorized by Raven Industries, Inc. All rights reserved under the copyright laws.
