Chapter 4

Install the Pressure Hose

Install one 9/16" JIC M/F 90° elbow fitting (P/N 333-0012-042) into the 'P' port on the SmarTrax hydraulic
1.
valve.

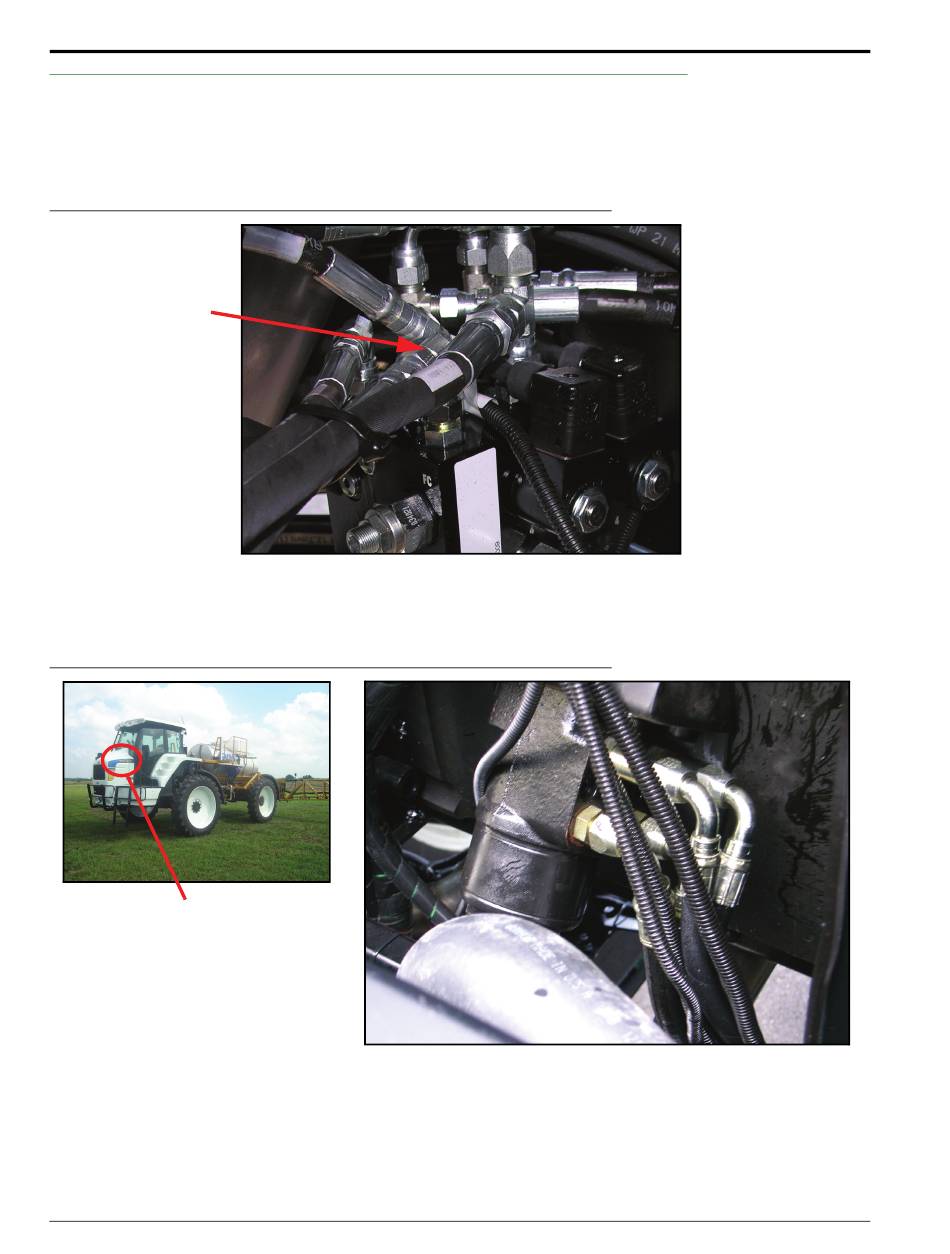

SmarTrax Hydraulic Valve Pressure Connection
FIGURE 1.
Installed Elbow
Fitting
Connect the supplied hose (P/N 214-1000-491) to the installed elbow fitting and route to the steering orbitrol
2.
in front of the machine cab under the front cover.
Orbitrol Connections
FIGURE 2.
Steering Orbitrol
Disconnect the existing pressure hose from the machine orbitrol and connect one 9/16" JIC M/M/F swivel
3.
run tee fitting (P/N 333-0012-043) to the orbitrol.
Reconnect the existing hose to the installed tee fitting.
4.
Connect the hose from the SmarTrax valve 'P' port to the remaining connector on the installed tee fitting.
5.
12 GVM Prowler ('08 & Newer & All 120' Booms) SmarTrax Installation Manual
