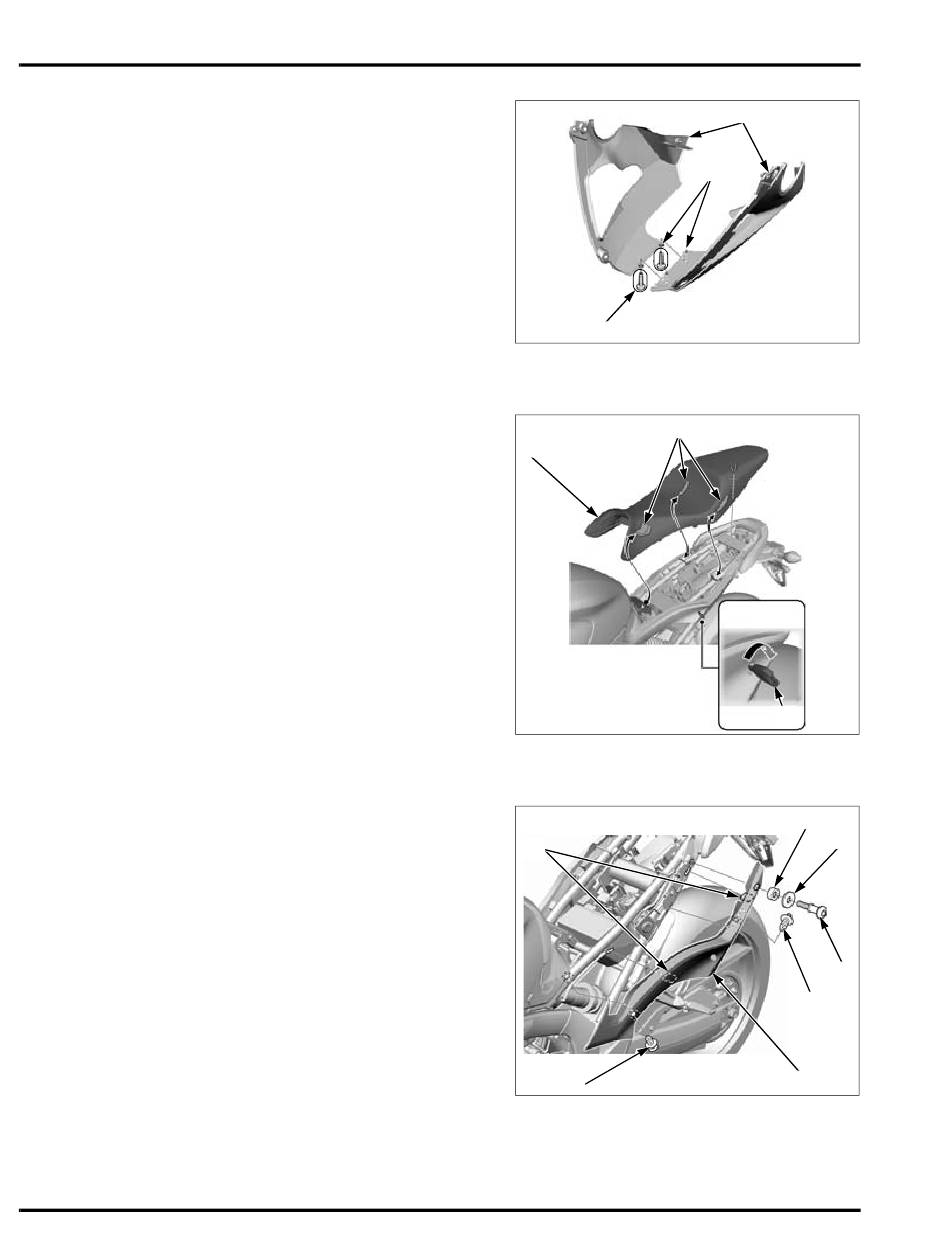

FRAME/BODY PANELS/EXHAUST SYSTEM
DISASSEMBLY/ASSEMBLY
Remove the two tapping screws [1] and separate the
under cowls [2].
Assembly is in the reverse order of disassembly.
• Align the holes with the bosses.
SEAT
REMOVAL/INSTALLATION
Unhook the seat with the ignition key [1].
Remove the seat [2] by pulling it rearward.
Install the seat by inserting the prongs [3] under the
frame.
Push down the rear of the seat securely to lock it.

BODY COVER

REMOVAL/INSTALLATION
Remove the seat (page 2-12).
Remove the following:
– Special bolt [1]
– Washer [2]
– Collar [3]
– Trim clip (pin head) [4]
– Trim clip (screw head) [5]
Remove the body cover [6] by releasing the tabs [7]
from the slots of the rear fender B.
Installation is in the reverse order of removal.
TORQUE:
Rear cowl special bolt:
22 N·m (2.2 kgf·m, 16 lbf·ft)
2-12
Align
[1]
[3]
[2]
[7]
[5]
[2]
[1]
[3]
[2]
[1]
[4]
[6]
