FRAME/BODY PANELS/EXHAUST SYSTEM

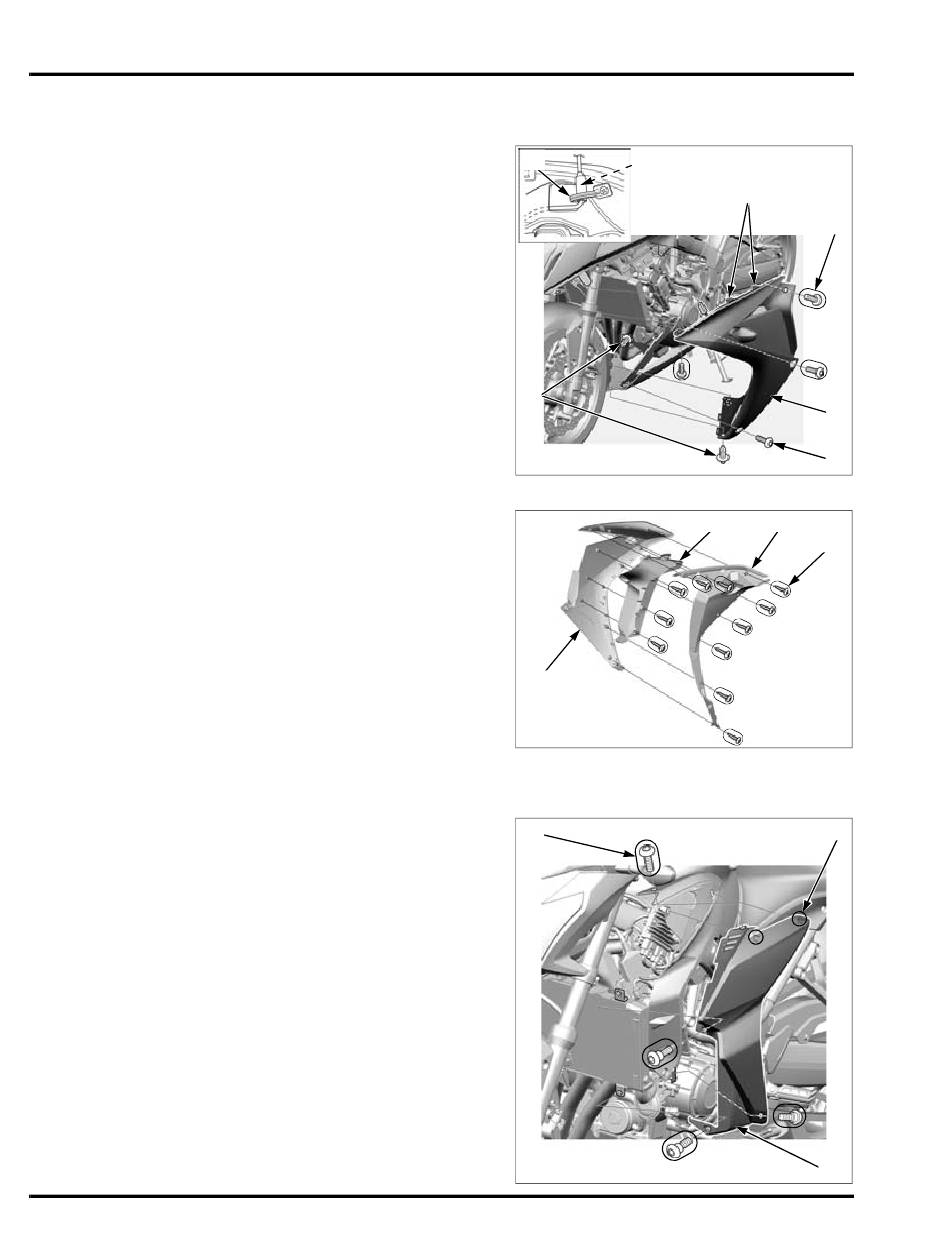

MIDDLE COWL (CBR650F/FA)
REMOVAL/INSTALLATION
Remove the following:
– Two trim clips (pin head) [1]
– Socket bolt A [2]
– Three socket bolts B [3]
Release the snap fit clips [4].
Open the wire clamp [5] and disconnect the front turn
signal light 3P connector [6], then remove the middle
cowl [7].
Installation is in the reverse order of removal.
TORQUE:
Middle cowl socket bolt A:
1.5 N·m (0.2 kgf·m, 1.1 lbf·ft)
DISASSEMBLY/ASSEMBLY
Remove the following:
– Tapping screws [1]
– Inner panel [2]
– Middle cowl B [3]
– Middle cowl A [4]
Assembly is in the reverse order of disassembly.
TANK SHROUD A (CB650F/FA)
REMOVAL/INSTALLATION
Remove the four socket bolts [1].
Release the snap fit clips [2] and remove the tank
shroud A [3].
Installation is in the reverse order of removal.
2-10
[6]
[5]
[1]
[4]
[1]
[4]
[3]
[7]
[2]
[3] [2]
[1]
[2]
[3]
