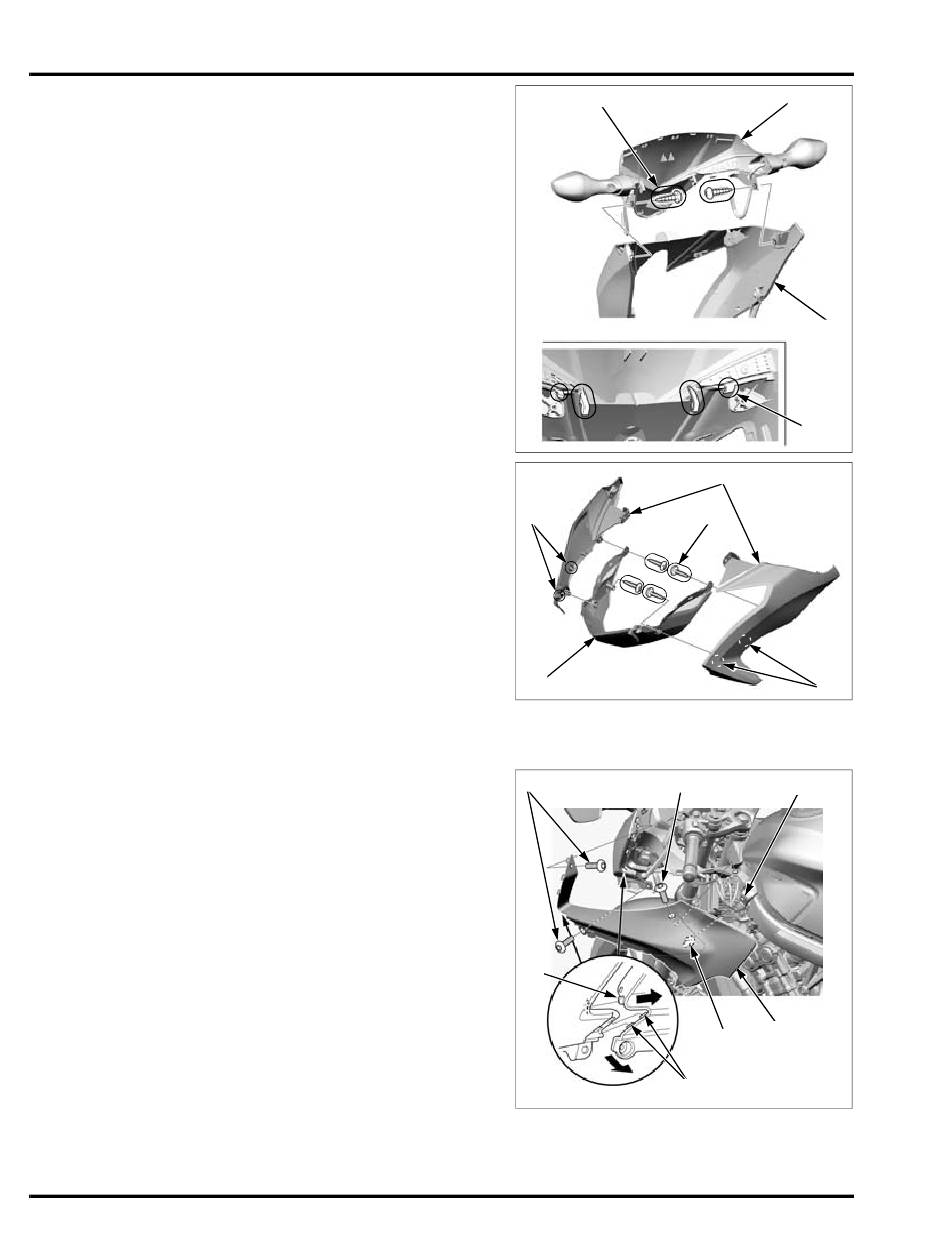

FRAME/BODY PANELS/EXHAUST SYSTEM
Remove the two tapping screws [1].
Remove the meter visor assembly [2] by releasing the
hooks [3] from the headlight cover [4].
Remove the four tapping screws [1].
Remove the headlight cover A [2] from the headlight
cover B [3] by releasing the hooks [4].
Assembly is in the reverse order of disassembly.
UPPER COWL B (CBR650F/FA)
REMOVAL/INSTALLATION
Remove the middle cowl (page 2-10).
Remove the two socket bolt A [1], socket bolt B [2] and
release the boss [3] from the grommet [4] of the fuel
tank.
Release the front side tabs [5] from the slot of the upper
cowl A.
Pull the upper cowl B [6] rearward and release the tab
[7], then remove the upper cowl B.
Installation is in the reverse order of removal.
TORQUE:
Upper cowl socket bolt A:
1.5 N·m (0.2 kgf·m, 1.1 lbf·ft)
2-8
[1]
[4]
[3]
[1]
[2]
[7]
[5]
[2]
[4]
[3]
[2]
[1]
[4]
[4]
[6]
[3]
