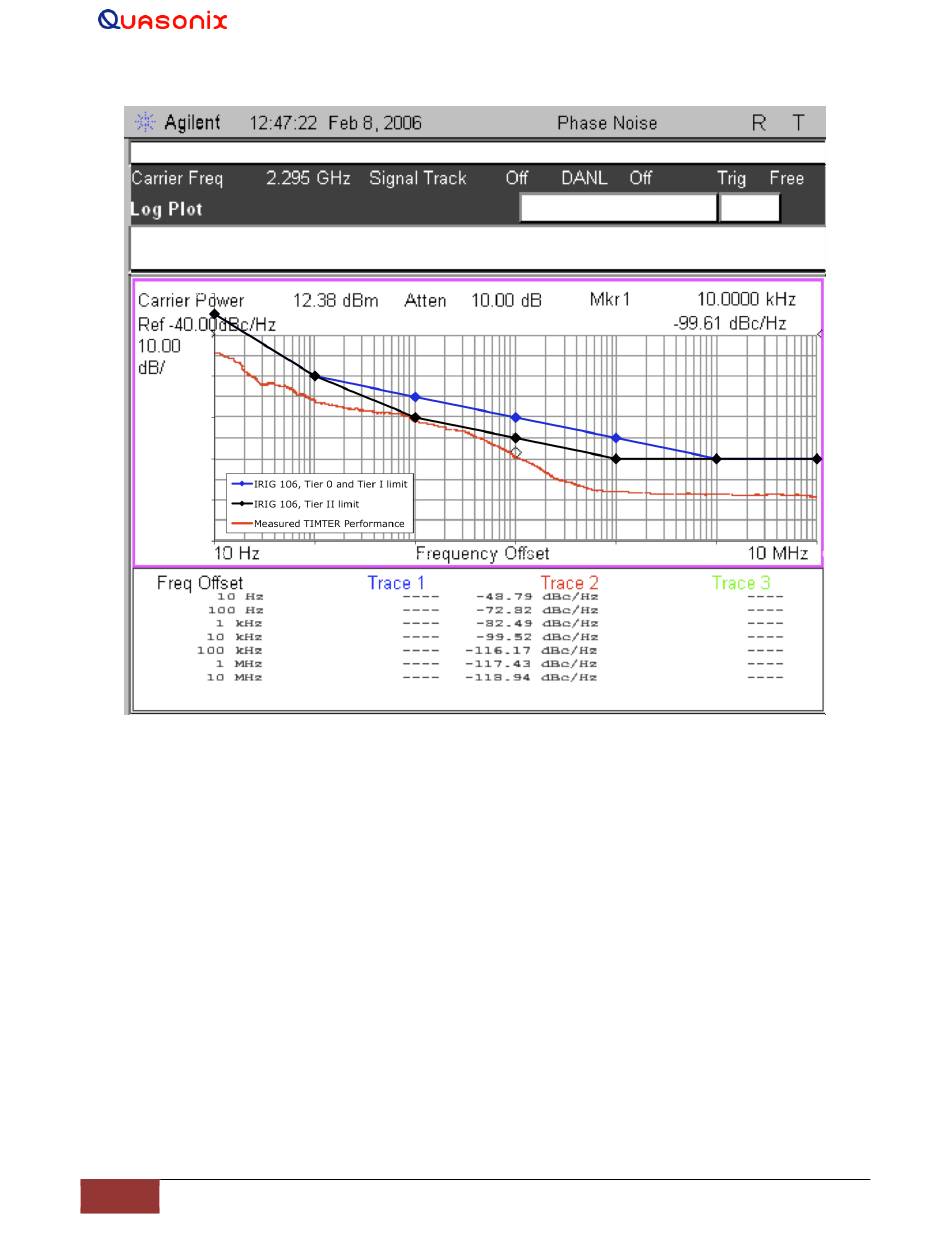

Figure 34: Phase Noise Limit Curve

6.9 Baseplate Temperature

TIMTER™ is designed for efficient heat transfer between internal heat producing sources and the baseplate. The 5
W, and 10 W Dual TIMTER™ versions are rated for operation with baseplate temperatures ranging from -40°C to
+85 °C.

6.10 Vibration and Shock

The transmitter is designed and tested to operate normally when subjected to random vibration and shock. The shock
and vibe test setup employed by Quasonix is shown in the following figures.
