TIMTER™ Multi-mode Dual
Telemetry Transmitter

2.9 USB to Serial Converter Cable

Part Number: QSX-AC-USBSER-CONV
The 36 inch long USB to serial converter cable allows for configuration of the transmitter with a computer that does
not have a serial port. The cable is pictured in Figure 17. An 18 inch long cable is also available.

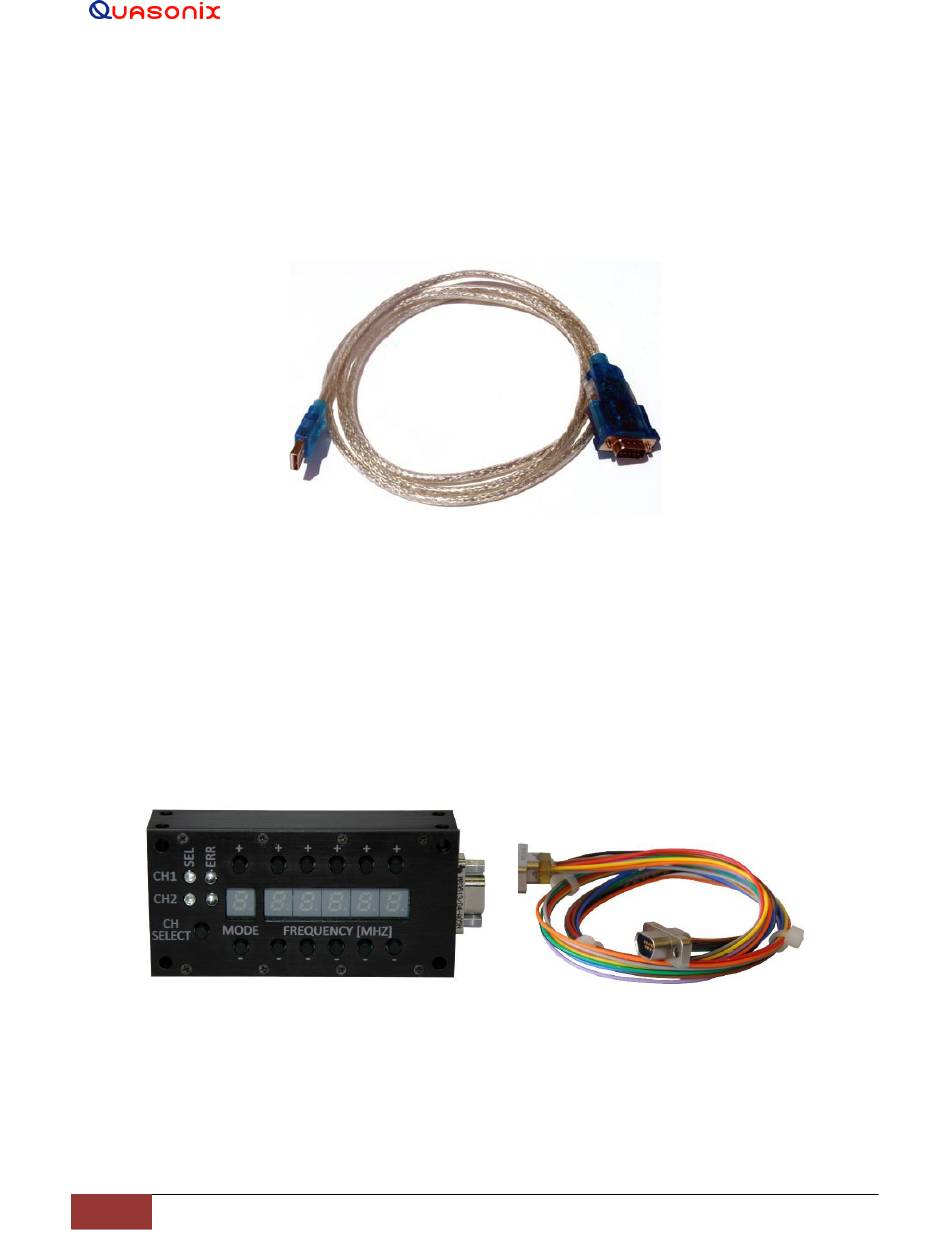

Figure 17: USB to Serial Converter Cable

nd
2.10 2
Generation Switch Box
Part Number: QSX-AC-DSWBX
This accessory enables configuration of a TIMTER™ via an external digital switch box. Six LED digits are used to
display the mode and frequency. A channel selector for channel 1 or channel 2 enables operation with a Quasonix
Dual Telemetry Transmitter. Standard transmitters default to channel 1. Included with the switch box is an 18"
MDM-9 to MDM-9 cable harness. The switch box and cable harness is pictured in Figure 18.

Figure 18: Switch Box with 18" MDM-9 to MDM-9 Cable Harness

21
