TIMTER™ Multi-mode Dual
Telemetry Transmitter

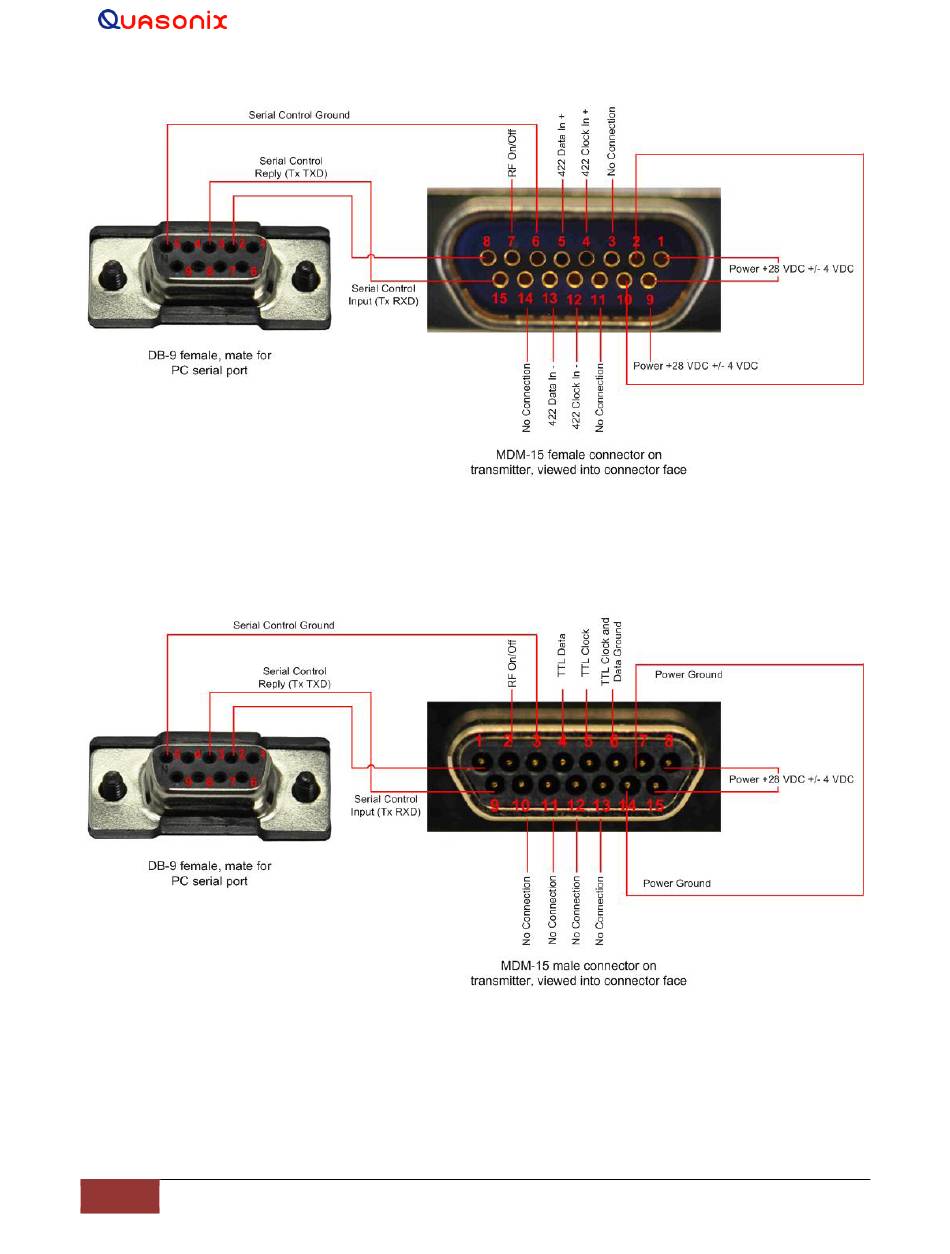

Figure 27: MDM-15 Female Pin Numbering, RS-422 Interface – 07AH Package
Figure 28: MDM-15 Male Pin Numbering, TTL Interface – 09AM Package
The pin assignments can change, depending on the options selected. A variety of pinouts are available with the
09AM package. Consult Quasonix for details.
30 Quasonix, Inc.
