Side By Side Dual Transmitter; Figure 25: 24.0 In3 Timter™ Dual Transmitter - Quasonix TIMTER Installation And Operation Manual

TIMTER™ Multi-mode Dual
Telemetry Transmitter
3.1.2

Side By Side Dual Transmitter

The 24.0 cubic inch TIMTER™ Dual Transmitter is designed to be mounted by eight (8) 2 1/4 inch screws through
the holes in the four corners and in the center, as depicted in Figure 26. Your mounting requirements may be
different.
At 2.0 inches tall, the Dual TIMTER™, the main difference between the side by side (4.00 x 3.00) dual transmitter
and the 2.00 by 3.00 dual transmitter is band availability. The side by side dual transmitter offers multiple bands
(L/S, S/C, L/C, or L/S/C), while the 2.00 x 3.00 dual transmitter provides single band options (L, S, or C).

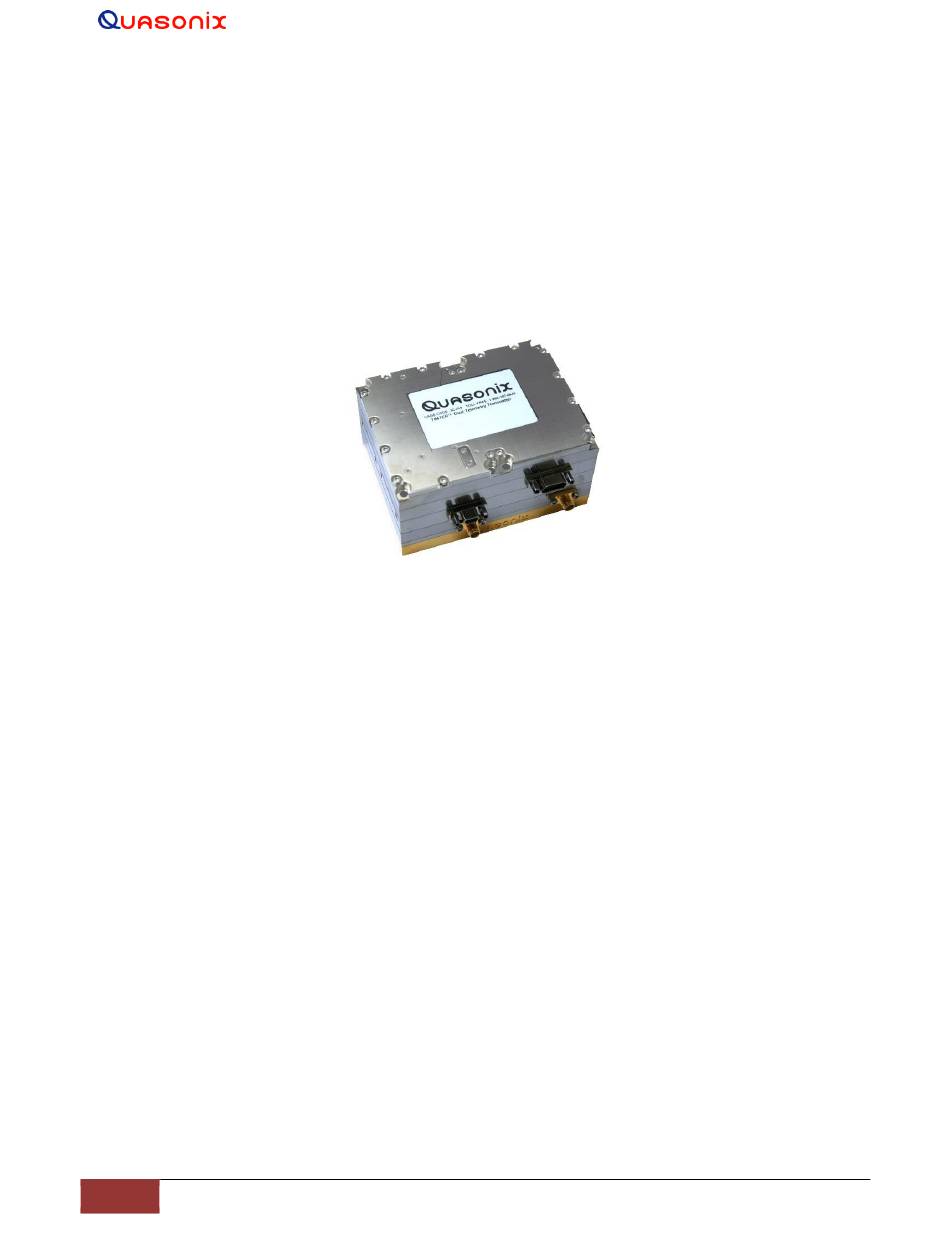

Figure 25: 24.0 in3 TIMTER™ Dual Transmitter
