TIMTER™ Multi-mode Dual
Telemetry Transmitter

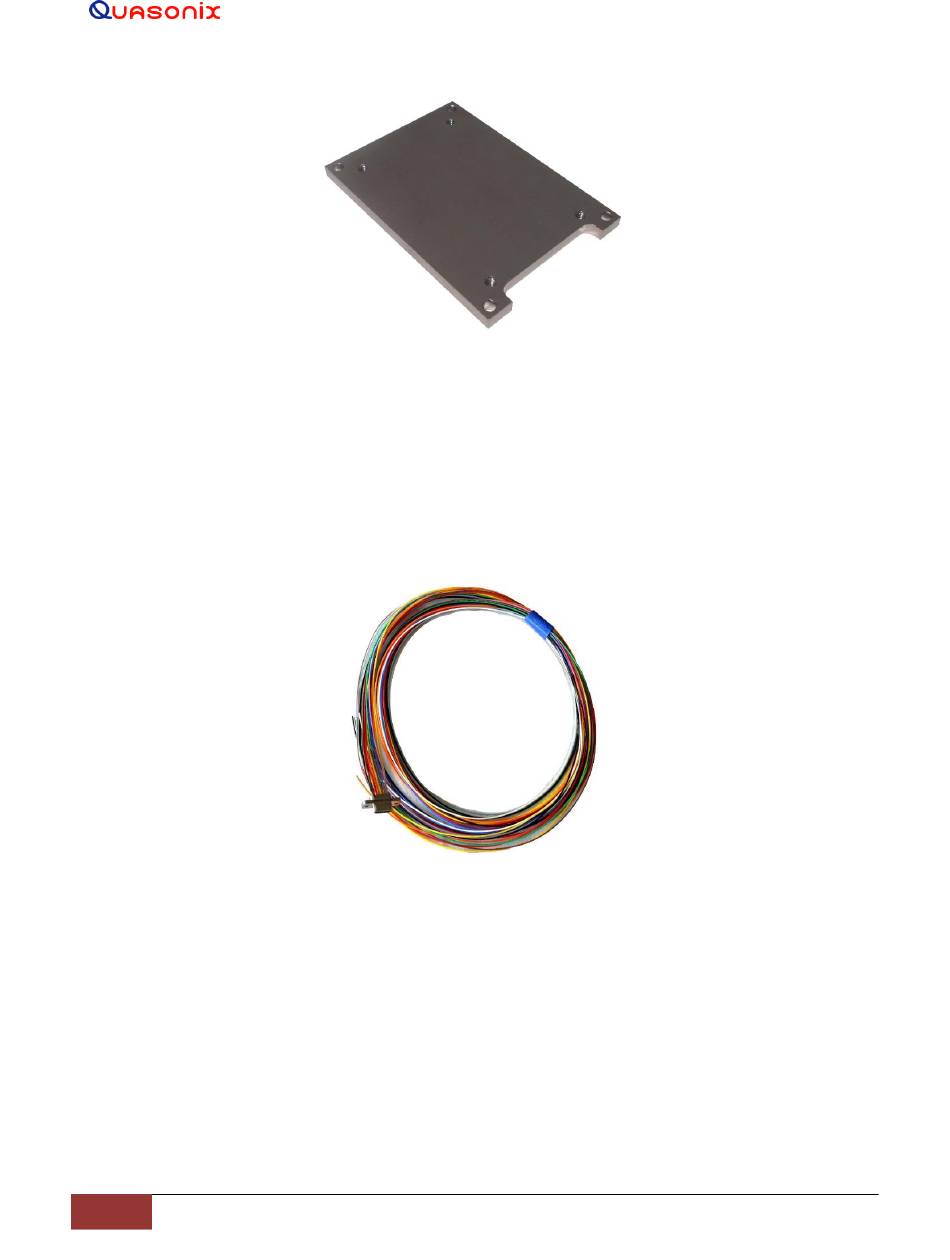

Figure 11: Adapter Plate

2.4 Pre-wired MDM-15 for RS-422 Units

Part Number: QSX-AC-MDM15-36-PIN
An MDM-15 connector with 36" color-coded pigtail cables for connecting to transmitters with the RS-422 clock and
data baseband interface is shown in Figure 12.

Figure 12: Pre-wired MDM-15 with 36" Pigtails for RS-422

2.5 Pre-wired MDM-15 for TTL Units

Part Number: QSX-AC-MDM15-36-SOCK
Quasonix offers an MDM-15 connector with 36" color-coded pigtail cables for connecting to transmitters with the
TTL clock and data baseband interface.
18
Quasonix, Inc.
