TIMTER™ Multi-mode Dual
Telemetry Transmitter
11 Appendix B – Bench Set Up for STC and LDPC
3
Note: This appendix only refers to the 7.200 in Dual Transmitter pictured in Figure 49. For information about
bench set up for a Legacy Dual Transmitter, refer to the Legacy Dual Transmitter user manual.

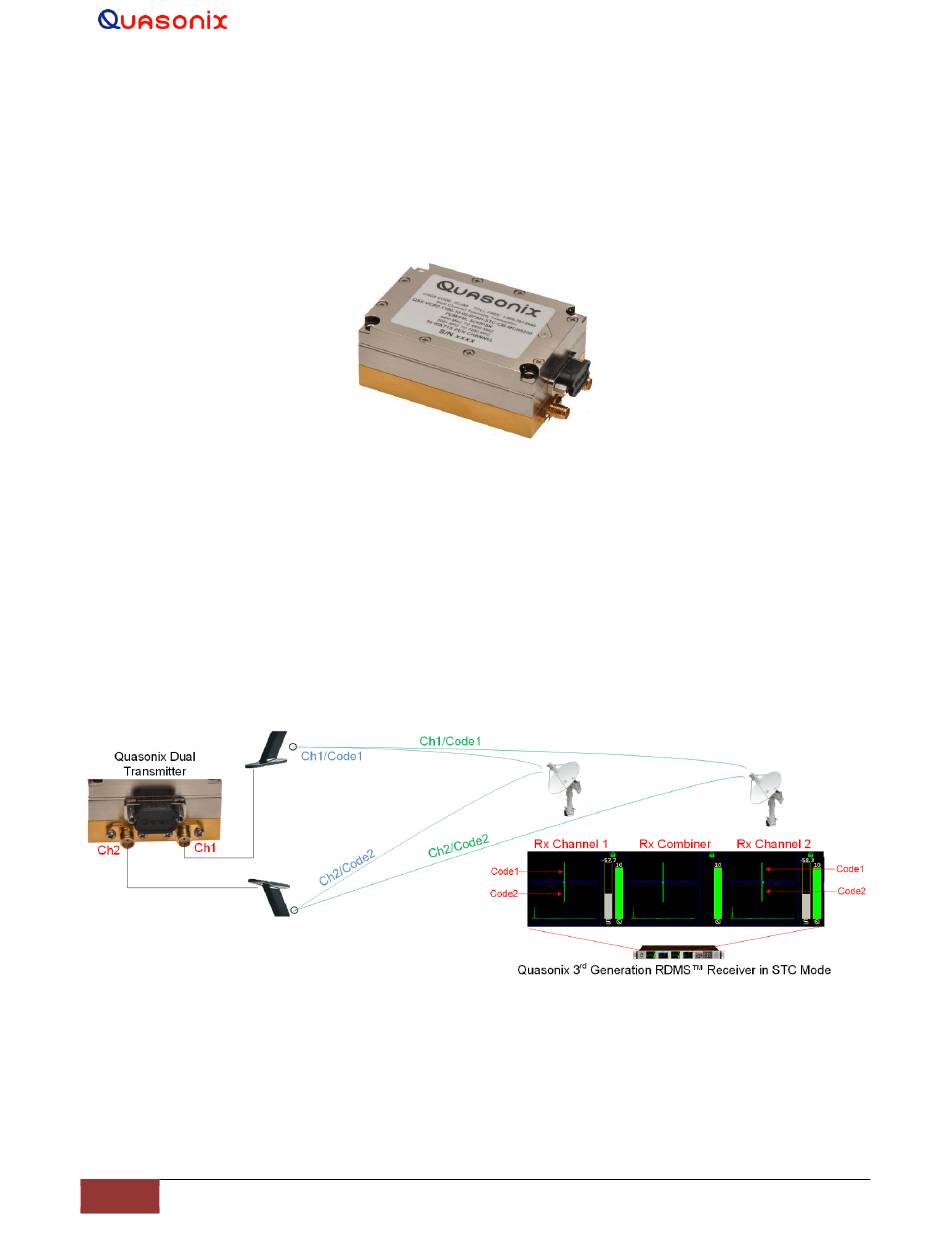

Figure 49: Quasonix Dual Transmitter
Configuring STC and LDPC in a lab or bench set up requires emulating a field set up, some aspects of which may
not be intuitively obvious. This appendix covers set up and command usage for the Dual Transmitter as well as its
connection to Compact or Rack Mount RDMS Receivers.
Before setting up the transmitter, it is important to understand the differences in receiver configuration required. A
field set up using a Dual Transmitter and Rack Mount Receiver in STC mode is pretty straight forward. A transmit
antenna connects to each RF output on the transmitter and a receive antenna connects to each RF input on the
receiver. The rest of the connection occurs through the air. This is not the case in a bench configuration.

Figure 50: Example STC Field Configuration for Dual Transmitter and Rack Mount Receiver

11.1 Receiver Connections

Two types of receiver may be configured, the Compact Receiver, which must be accessed via a Handheld
Programmer or a PC running the Terminal application, or the Rack Mount Receiver, which may be accessed via the
front panel or the browser based graphical user interface (GUI).
