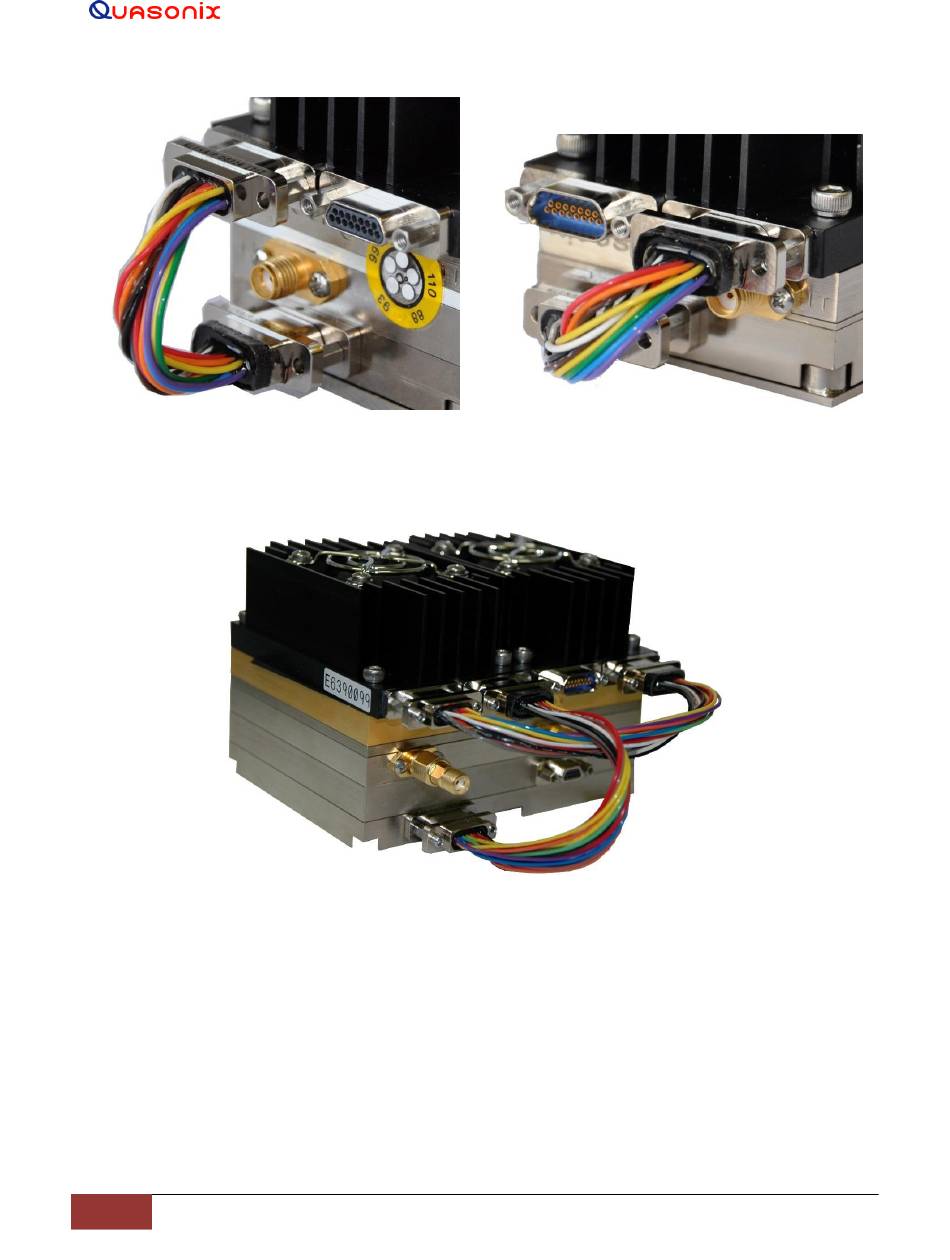

Figure 8: Close-up Using Female MDM-15
Connector

Figure 10: Two Transmitter-powered Heat Sinks Connected to 4 x 3 Dual Transmitter (24xx Package)

2.3 Adapter Plate

Part Number: QSX-AC-AP-96
The adapter plate, shown in Figure 11, allows for the standard 2" x 3" footprint TIMTER™ to be mounted to the
larger 2.5" x 3.5" mounting surface occupied by other industry transmitters. Note, this adapter plate is not used with
the Transmitter-powered Heat Sink. The appropriate adapter plate is included in the kit.
17
Quasonix, Inc.
TIMTER™ Multi-mode Dual
Telemetry Transmitter

Figure 9: Close-up Using Male MDM-15 Connector
