2 Accessories

Quasonix offers a number of optional accessories for TIMTER™, including a fan-cooled heat sink, a 2.5" x 3.5"
adapter plate, pre-wired mating MDM-15 connectors, complete MDM-15 cable assemblies, a ruggedized handheld
programmer, and a USB to serial converter cable. Contact Quasonix for pricing and availability of TIMTER™
accessories.

2.1 Fan-cooled Heat Sink

Part Number: QSX-AC-32-HS-12V

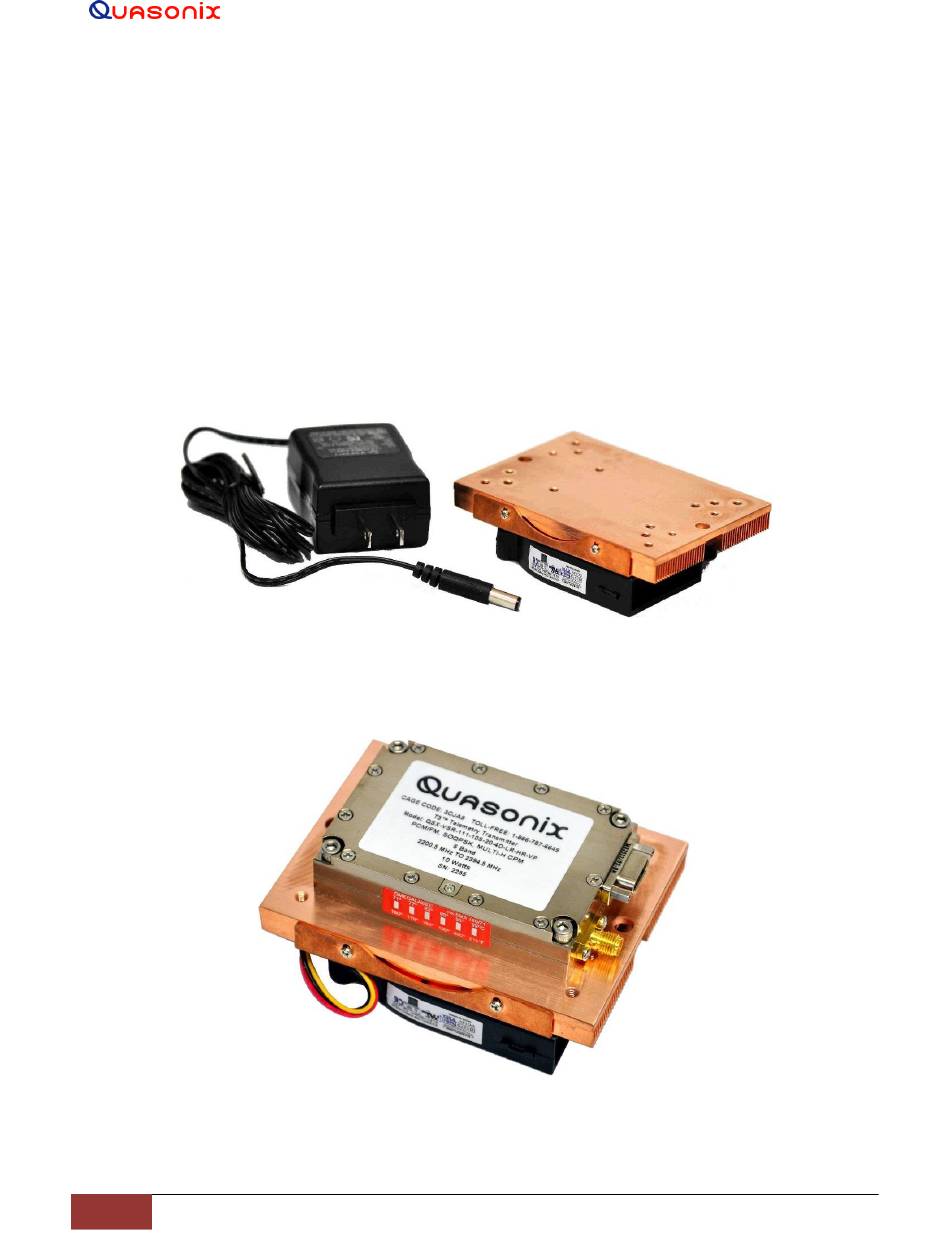

The heat sink assembly includes an integral +12 VDC fan and a power supply transformer, shown in Figure 3. The
heat sink is shown with a mounted 6 cubic inch TIMTER™ in Figure 4.

Figure 3: Fan-cooled Heat Sink and Power Supply

Figure 4: Fan-cooled Heat Sink with 6 cubic inch TIMTER™
