3 Installation Instructions

3.1 Mechanical

3.1.1

Standard Dual Transmitter

The 7.2 cubic inch L or S band TIMTER™ Dual Transmitter is designed to be mounted by four (4) 1 1/4 inch
screws through the holes in the four corners, as depicted in Figure 23 and Figure 24. At 1.2 inches tall, the Dual
TIMTER™ can serve as a drop-in replacement for common 2.0 inch x 3.0 inch transmitters.
Quasonix also offers a 9.0 cubic inch C band TIMTER™ Dual Transmitter. This 1.5 inch tall dual transmitter is
designed to be mounted by four (4) 1 1/2 inch screws through the holes in the four corners
Your mounting requirements may be different. Contact Quasonix with all mechanical or installation questions.

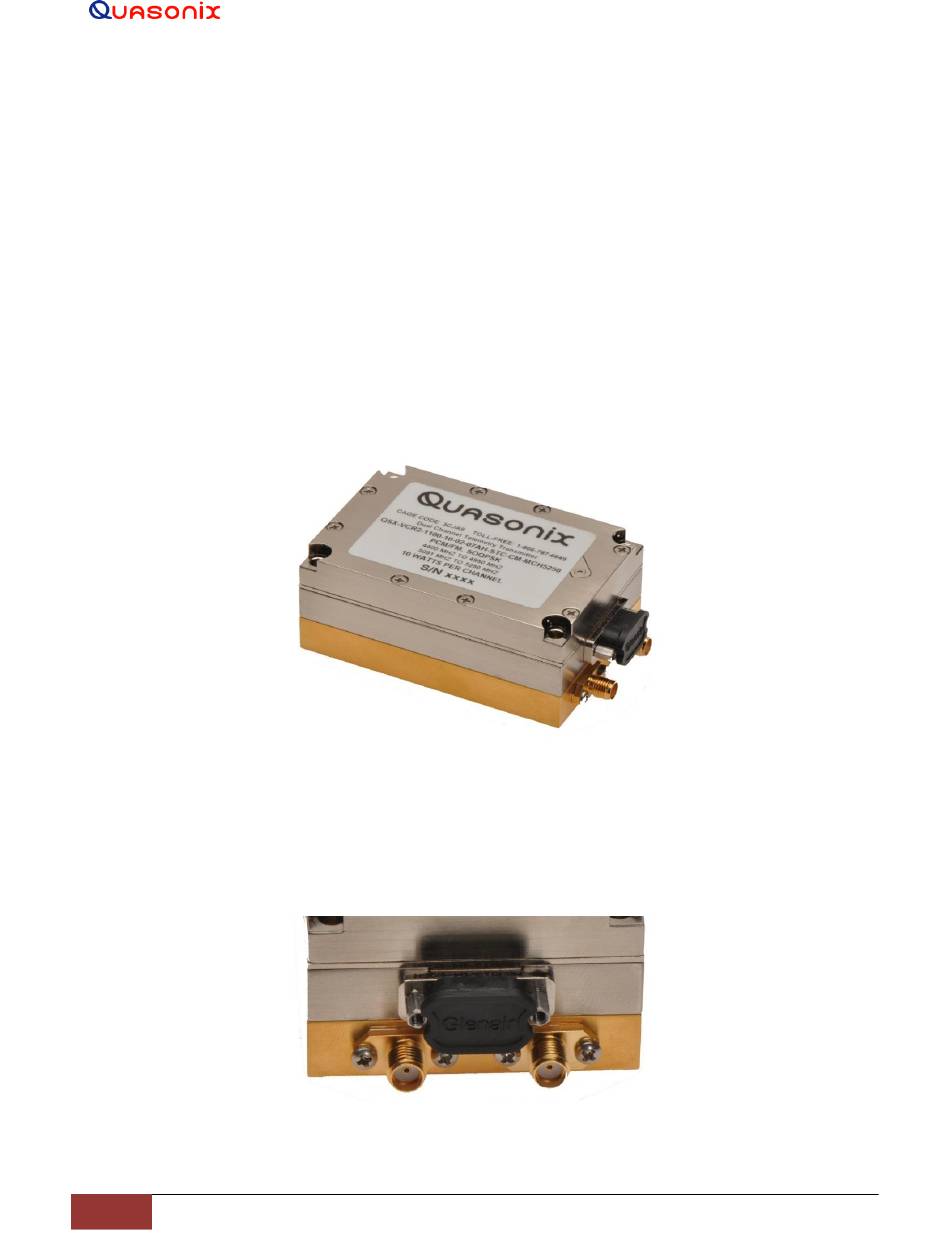

Figure 19: 7.2 in3 TIMTER™ Dual Transmitter
Dual RF outputs (Figure 20), up to 10 watts each with a single Micro-D input, can be configured with a single or
dual data input.

Figure 20: Dual Transmitter RF Outputs
