2.2 KNX
The "KNX" tab is used to define the KNX-IP Gateway and to import the KNX group
addresses using the OPC project file.
2.2.1 Defining the KNX-IP Gateway
To be able to use the KNX functionality of the Smart Visu Server, a connection to the KNX
system via a KNX-IP data interface is required, which can be reached from the Smart Visu
Server via the IP network.
We recommend using one of the following KNX-IP data interfaces:
-
Jung: KNX IP interface Art. no.: IPS 200 REG
-
Jung: KNX IP router Art. no.: IPR 200 REG
The Smart Visu Server must be informed of the current IP address of the KNX-IP data
interface. The simplest way to do this is to determine them from the ETS configuration of the
device (static IP address active) or from the network router (DHCP active). Enter the
determined IP address of the KNX-IP data interface in the "KNX-IP Gateway" field (2).
Immediately on entry, the connection to the KNX-IP data interface is checked. If the
connection is successful, the test is visualized by a green checkmark ( ) or, if it is
unsuccessful, by an orange triangle ( ) at the end of the input line (3).
The button ( ) provides more information about your KNX-IP data interface and the
connection (4).
The "KNX" tab can be operated fully for both profiles (Administrator/User).
2
If the connection is faulty, please check the following settings:
-
The KNX-IP data interface is switched on and connected to the IP network
-
The KNX-IP data interface possess IP address assignment valid for your system
o IP address
o Subnet mask
o Routing Multicast address
-
The KNX-IP data interface is set to Port 3671
SV-SERVER-01 / SV-SERVER-INT
3
4

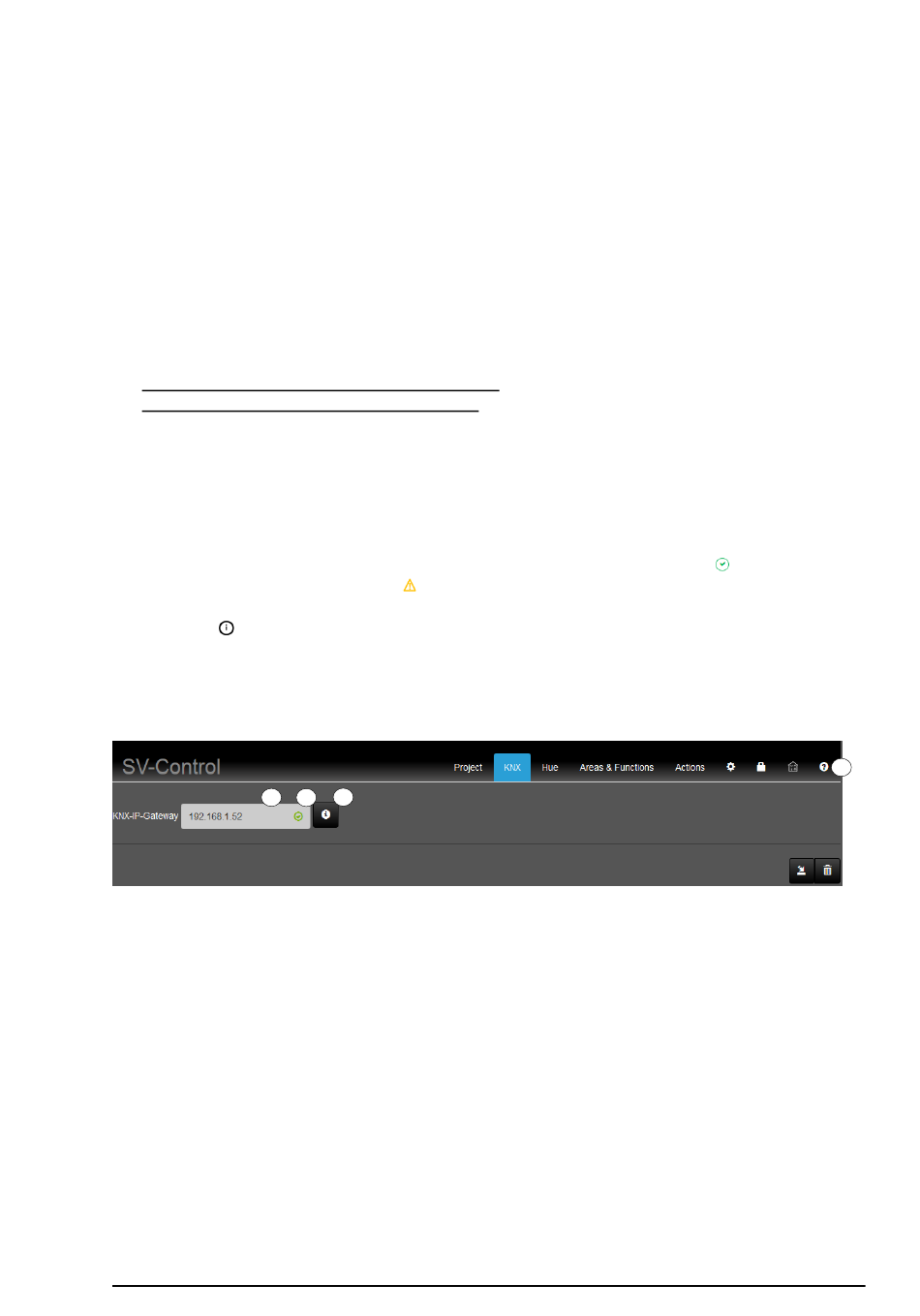

Figure 10: Defining the KNX-IP Gateway
1
16 / 157
