HVAC Group:
With the function "function group HVAC" (1) an all-embracing KNX climate control can be
initiated. The current setpoint temperature is indicated by the group address "setpoint
temperature display" (2) depending on the set operating mode. The group address "actual
temperature" (3) shows the values rounded to one decimal place. The sending and reading
of the current setpoint shift (4) can be configured by the corresponding addresses. The
current operating mode can be changed and read out by the group addresses "operating
mode switchover" or "operating mode feedback signal" (5).
In addition, by declaring four initialization addresses (6) during system startup, the current
status of the function can be queried.
SV-SERVER-01 / SV-SERVER-INT
7

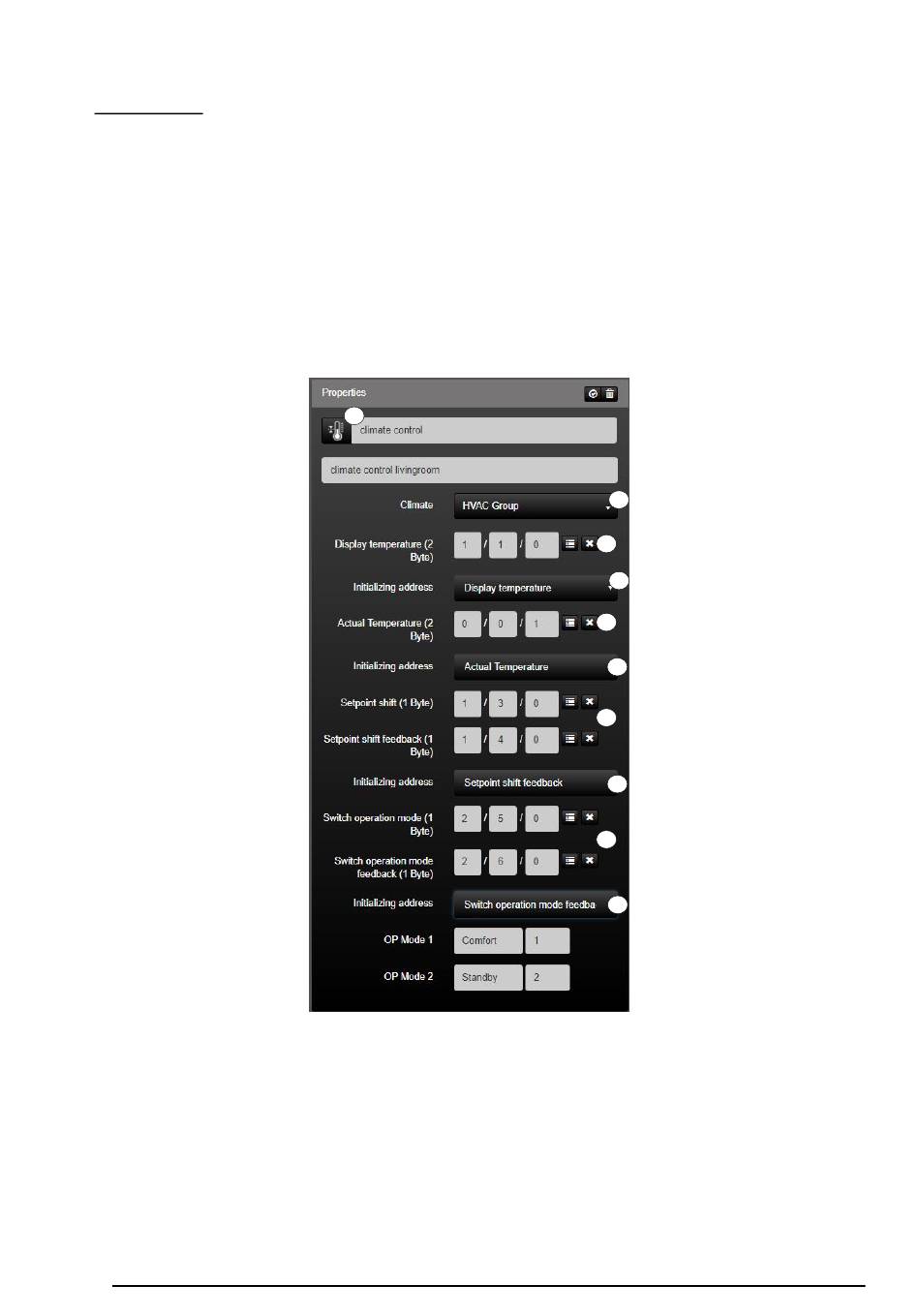

Figure 36: Display of the "HVAC Group" function
1
2
6
3
6
4
6
5
6
57 / 157
