1.6 System information

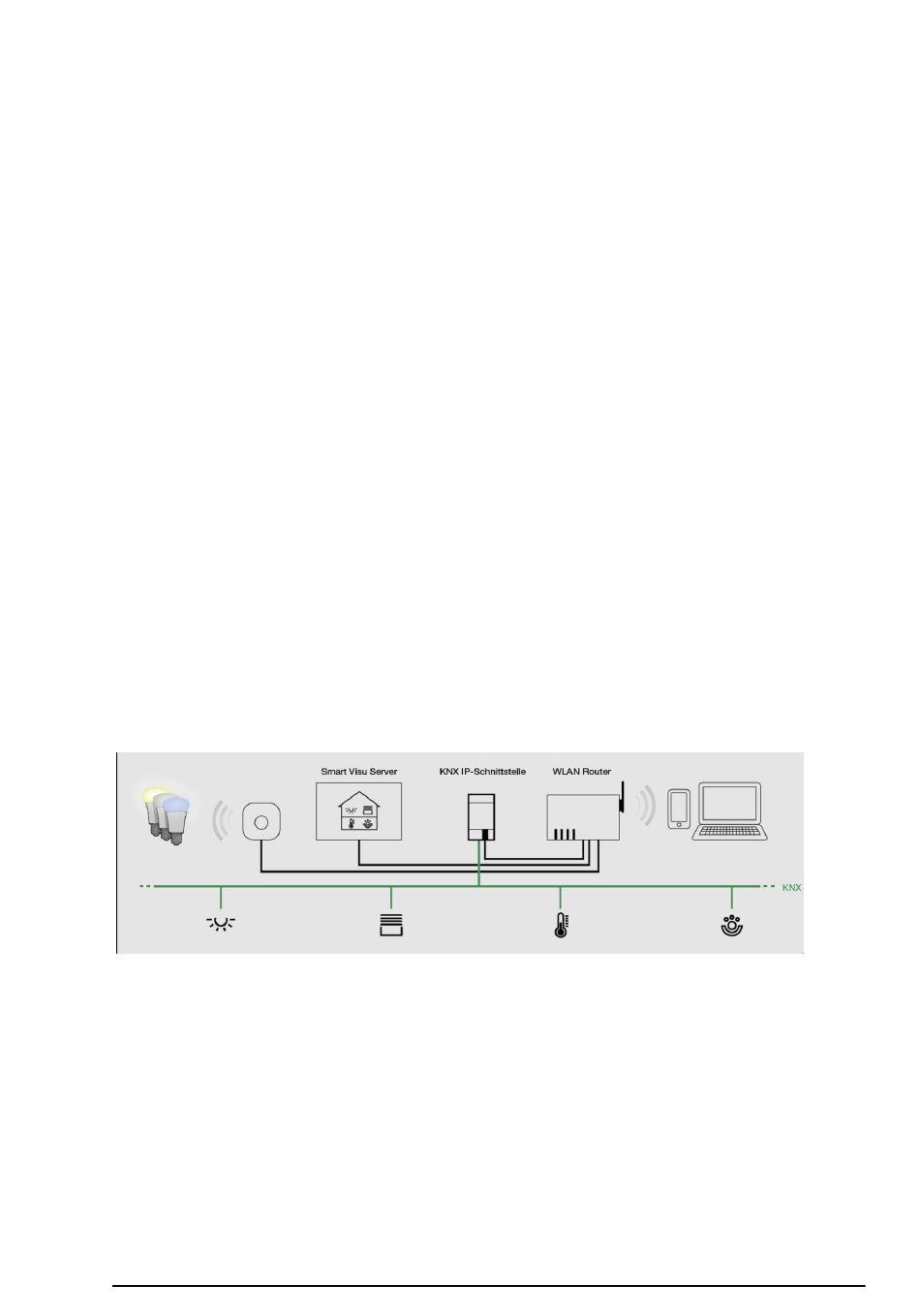

The Smart Visu Server is used to visualise and operate a KNX system connected to the
same network via a smartphone, tablet, laptop or PC and to control Philips Hue systems
(SV-Home). A local network is required for it to function.
The connection to the KNX is made via the KNX IP interface. The connection to the Philips
Hue system is made via the Philips Hue Bridge.
Start-up takes place via the web-based interface (SV-Control). The technical documentation
is also available here.
The server organises KNX functions and Philips Hue operation into areas, functions and
actions.
Areas:
An area indicates an assignment, e.g. to a room. Up to 24 areas are
possible.
Function:
A function corresponds to, for example, a KNX function, thus possibly
comprising multiple group addresses, e.g. switching channel with
feedback. A function could also be the link to a Philips Hue lamp. Up to
240 functions can be created with up to 1200 datapoints. Each function
can be assigned to one or more areas.
Action:
An action is a grouping of one or more functions. Actions can be triggered
by events, by time or via user-defined controls. Up to 250 actions are
possible.
Action group:
An action group is used to group individual actions. Up to 25 Action groups
can be activated or deactivated as required.
KNX projects can be imported from the OPC export (3-level group address) of ETS3, ETS4
or ETS5 or be created manually. (see chapter 2.2.2)
SV-SERVER-01 / SV-SERVER-INT
7 / 157
