RGB:
The "RGB" function (1) is the KNX function for controlling RGB dimmer actuators. With the
group address, e.g. "Transmit value red" (2), it is possible to write the current brightness
value of the red colour channel to the bus. The "Value red feedback" group address (3) can
be defined to read the current brightness of the red colour channel.
In addition, the current status of a selectable group address of the colour channel can be
polled by defining an initialisation address red (4) on starting the system. The same applies
to the green (5 - 7) and blue (8 - 10) colour channel. The "Switching" group address (11) can
be defined for central switching of the function. The switching state of the function can also
be read via the "Switching feedback" group address (12).

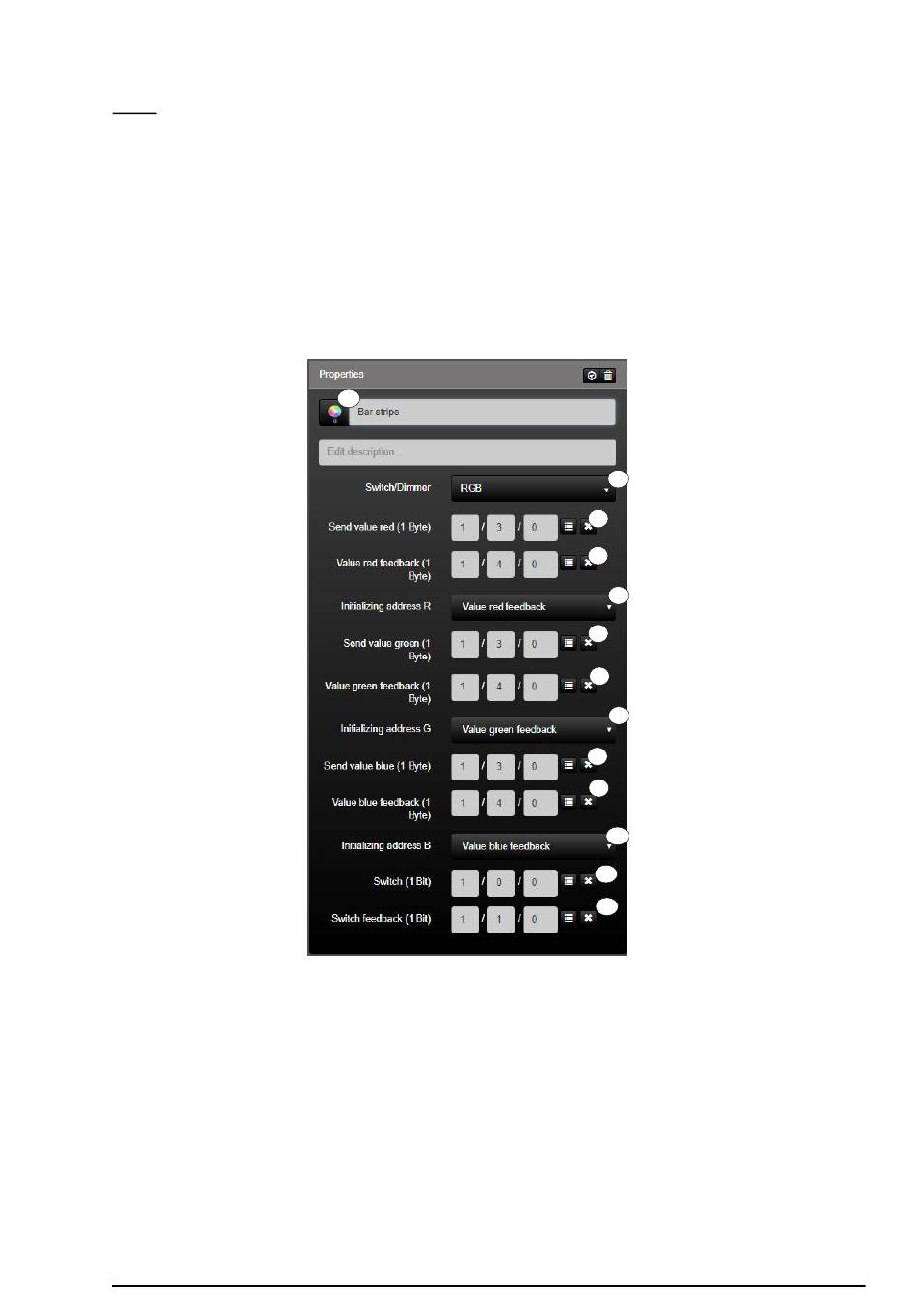

Figure 24: Parameters of the "RGB (KNX)" function
