Rollershutter/Awning:
The "Rollershutter/Awning" function (1) is the KNX function for control of motorised roller
shutters/awnings with position specification. The motorised drive can be activated by the
group address "Position specification" (2).
The "Position feedback" (3) group address must be configured for reading the position. In
addition, the current status of a selectable group address can be polled by defining an
initialisation address (4) on starting the system.
5
1
2
3
4

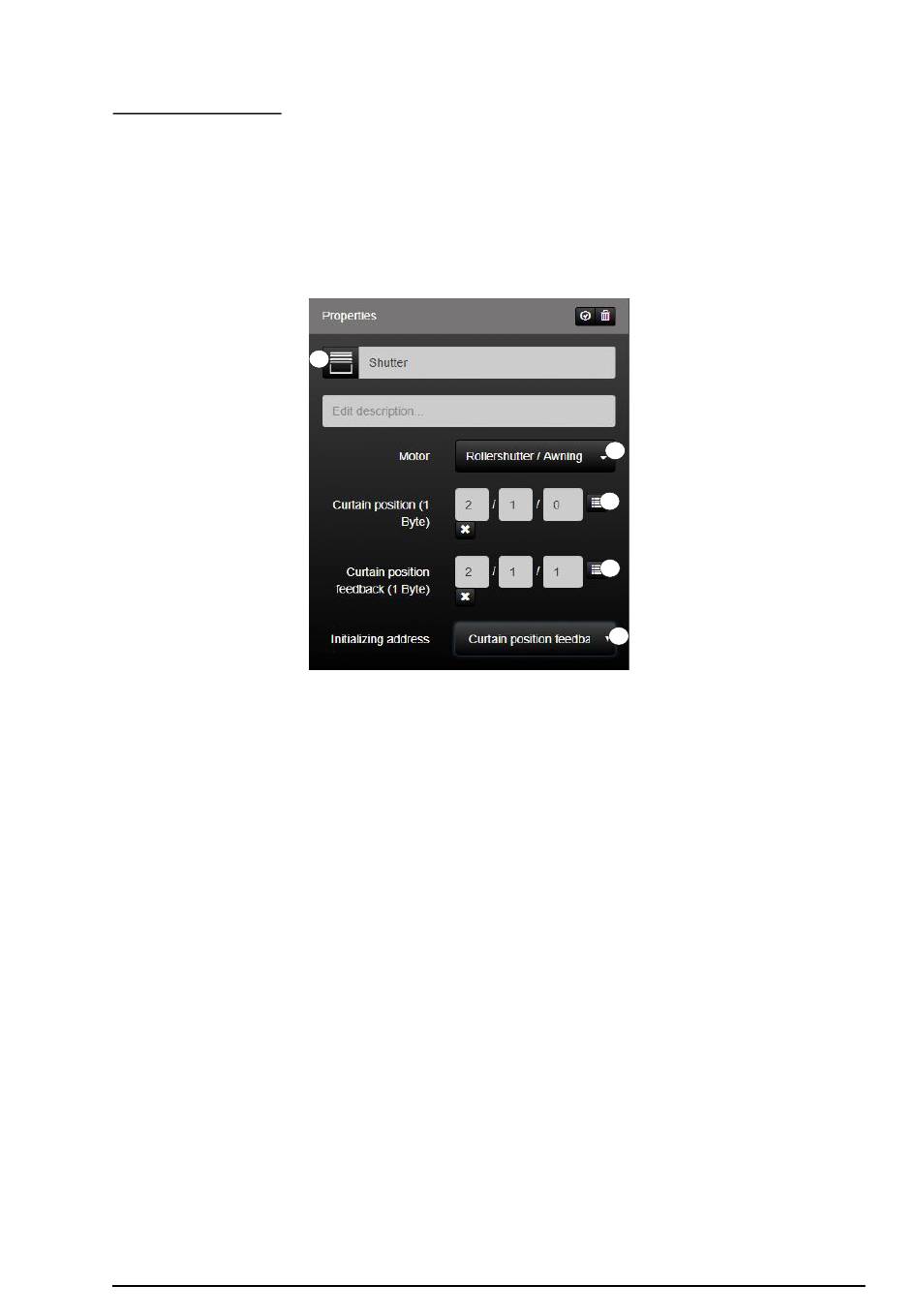

Figure 27: Parameters of the "Rollershutter/Awning" function
SV-SERVER-01 / SV-SERVER-INT
45 / 157
