Scene
The Smart Visu Server supports the execution and learning of KNX function values. If
required, the function type "Scene" can be depicted by two differentiated KNX functions.
Activate Scene:
The "Activate Scene" function (1) is a Smart Visu Server function for executing KNX scenes.
The function transmits a scene value (2) to the KNX group address entered in the input field
"Scene group address (1 Byte)" (3). With each KNX scene group address, up to 64 scene
values (or scene numbers) (2) can be recalled. The scene value (2) the Smart Visu Server
should transmit when a scene is triggered can be set in the input field (2).
4
1
2
3

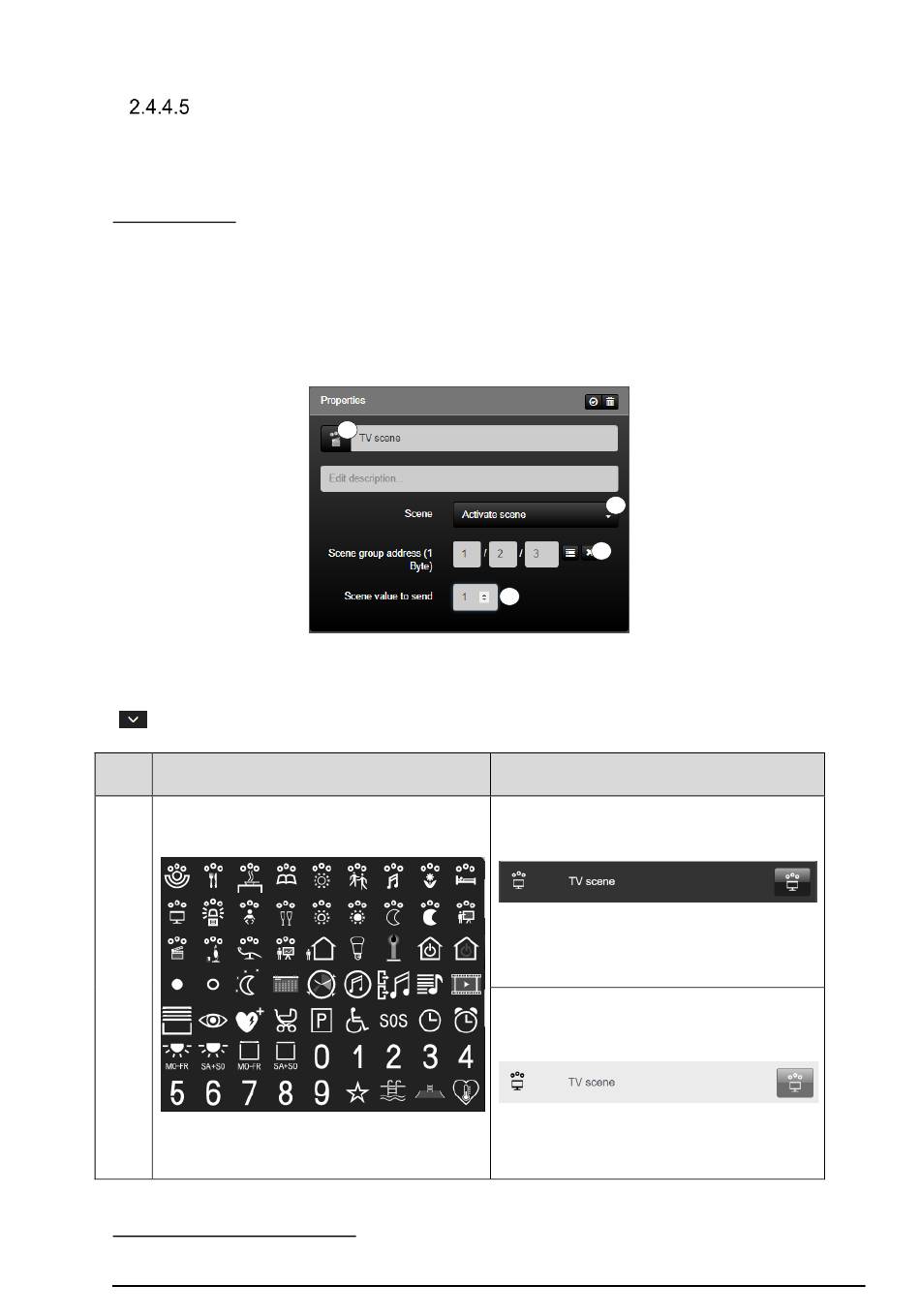

Figure 40: Parameters of the "Activate scene" function
The function has favorites within the symbol library (4). Additional icons are available via the
"
" button.
KNX
Selection of the icon library in SV-Control
Operating and display element in SV-Home
function
Activat
e
Scene
Table 22: Display of the "Activate scene" function
Activate & Learn Scene (KNX):
SV-SERVER-01 / SV-SERVER-INT
67 / 157
