1.7 Montage, commissioning
Mounting takes place using the supplied retaining unit on the wall or on a support rail
according to DIN EN 60715. The server is snapped onto the retaining unit.
A current HTML5-capable browser (input device) or the corresponding iOS / Android App is
required for access to SV-Home and SV-Control. The Smart Visu Server, KNX-IP-Gateway,
network router (DHCP active) and input device must all be a part of the same network.
During start-up, the Smart Visu Server expects the assignment of an IP address via DHCP.
Remove the discharge protection from the server. Connect the server to the network and
the power supply unit to the server. After the mains plug has been connected, the server will
boot. As soon as the Status LED turns blue, the server is ready for operation. In the address
line of the Internet browser, enter:
http://sv-server.local
This opens the homepage of the server.
If your network doesn't support it, then determine the IP address of the server in the router
manually. Enter the determined address, e.g. 192.168.1.51, in the address line of your
Internet browser, e.g.:
This opens the homepage of the server. On the homepage, for further actions, the web-
based software tool "SV-Home" (1) can be used for the visualisation and operation of the
Smart Visu Server, as can "SV-Control" (2) for the configuration and commissioning of the
same.
1
2

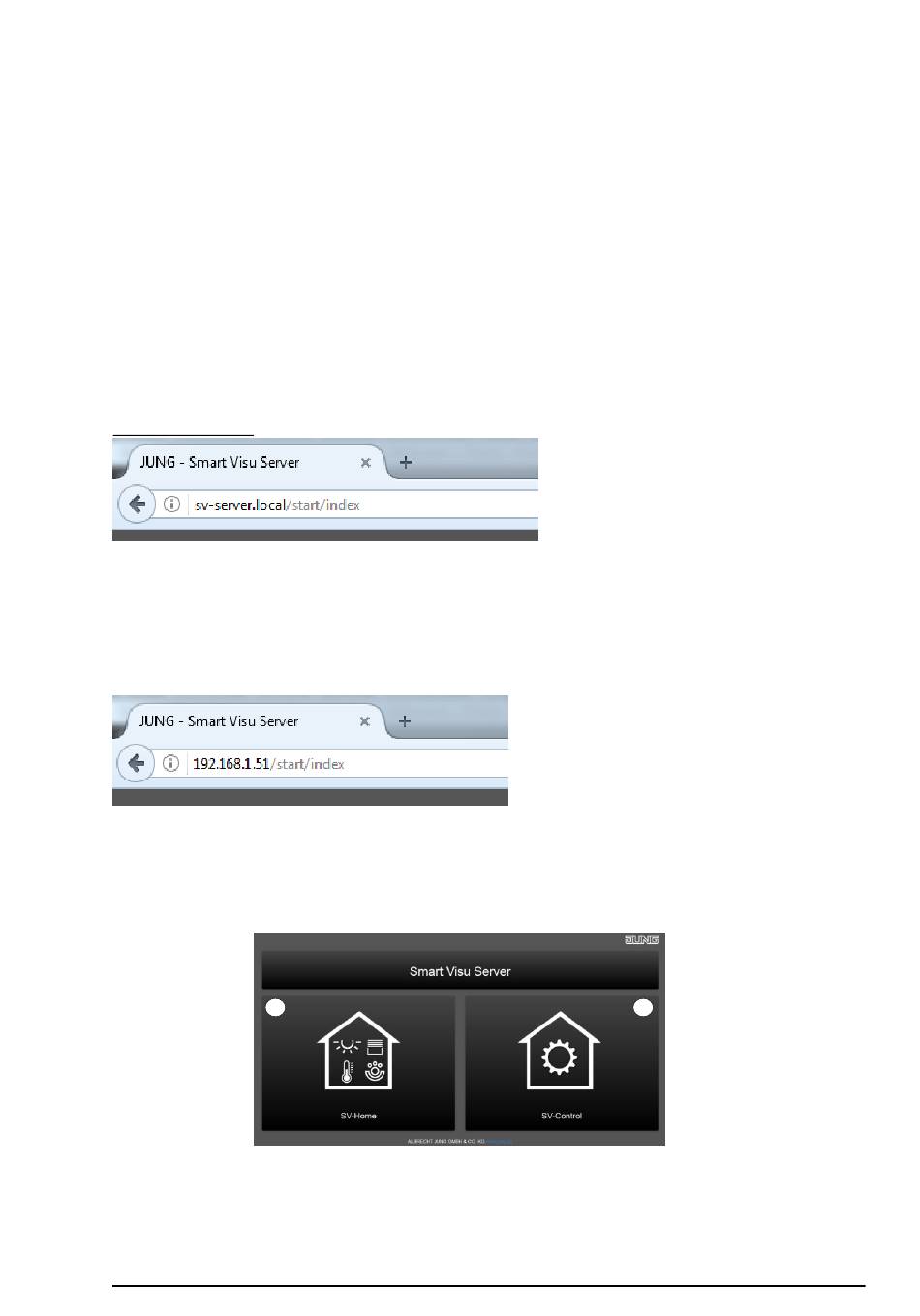

Figure 2: Homepage of the Smart Visu Server
SV-SERVER-01 / SV-SERVER-INT
8 / 157
