2.4.8 Configuring status logic functions
With the "Status Logic" (1) function, the Smart Visu Server can logically link up to 10
functional states. Thus, with status logic, you can, for example, interlink the status of window
contacts, so that you can see at a glance in SV-Home whether all the windows are closed.
Using the "Logical link" drop-down menu (2), you can set the three following logical linking
operations:
-
AND
-
OR
-
XOR
Using the drop-down menu (4), you can select previously created functions as input
variables for the status logic. Only functions containing at least one 1-bit datapoint can be
selected.
The up to 10 functions added to the status logic are shown in a list (4). The functions can be
deleted individually as input functions from the status logic with the "
SV-SERVER-01 / SV-SERVER-INT
6
5
4
1

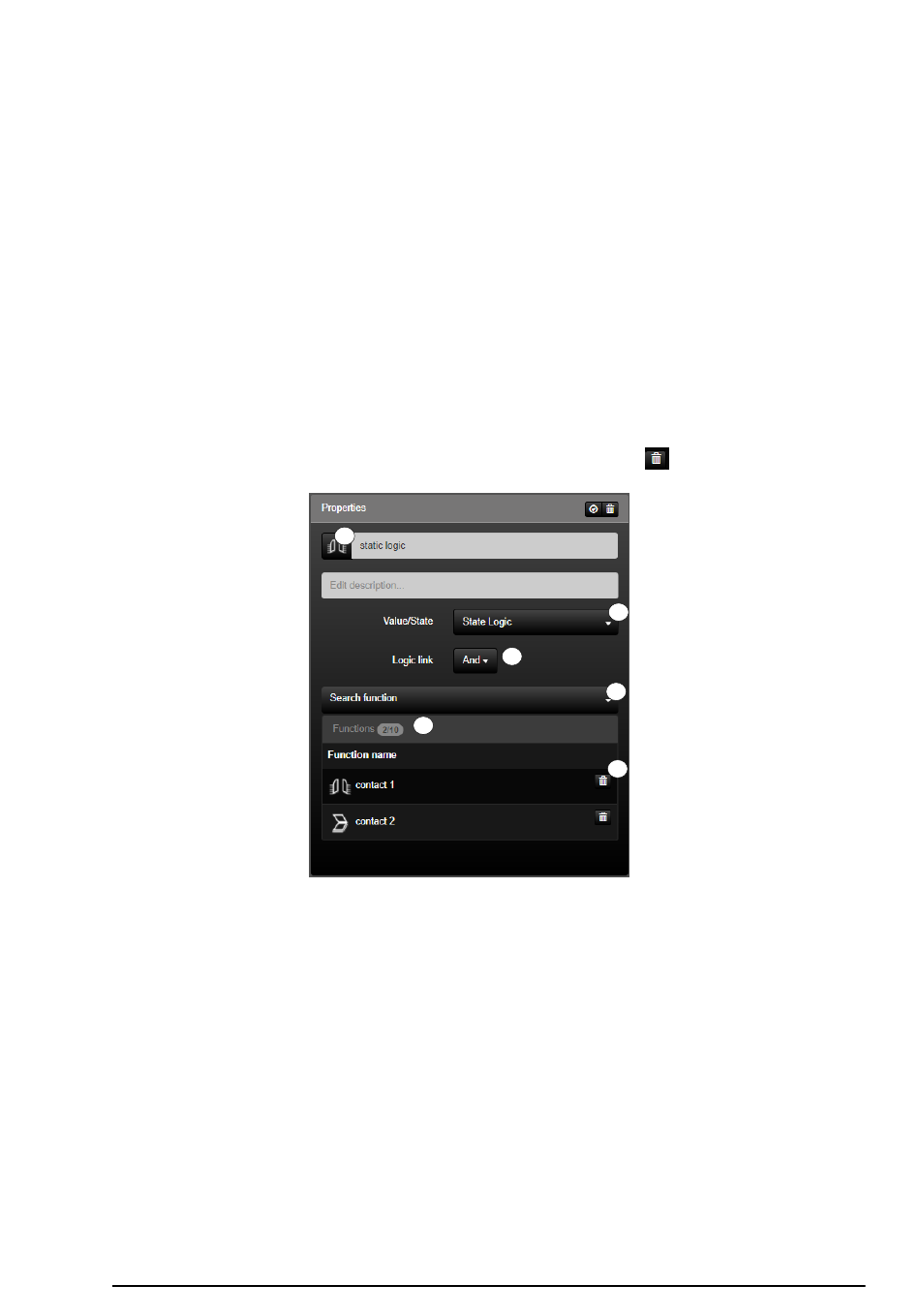

Figure 63: Parameters of status logic
" button (5).
1
2
3
1
5
101 / 157
