Network settings

The network settings can be edited in the "Network Settings" field (2) for the local network
(IPv4) in the configuration management of SV-Control. The network settings of the Smart
Visu Server can be entered automatically via DHCP address assignment (2a) or manually
("statically") (2b).
Configuring the IP address for DHCP
The DHCP address assignment is set as default when the device is delivered.
For the Smart Visu Server to obtain its IP address automatically via DHCP address
assignment, the "DHCP" option (2a) must be selected. In this case, the fields 2c to 2f cannot
be edited, but are only used to visualise the current, automatically obtained network settings.
To apply the selected setting, the " " button (2g) must then be pressed.
The DHCP setting can be restored at any time through an "IP Reset" using the
device Reset button. You can find more information on this in Chapter Fehler!
erweisquelle konnte nicht gefunden werden. "Fehler! Verweisquelle konnte
nicht gefunden werden.".
Setting a static IP address
To manually assign a static address to the Smart Visu Server after commissioning, the item
"static" (2b) must be activated. The input fields (2c to 2f) can then be edited.
To apply the selected setting, the " " button (2g) must then be pressed.
The static IPv4 address can be entered in the input field (2c). The subnet mask of the
network can be specified in the input field (2d). You can specify a DNS server in the input
field (2e) and an IP Gateway in the input field (2f).
SV-SERVER-01 / SV-SERVER-INT
2
1
2a
T
1
2b
T
h
1
hi
is
T
s
is
hi
is
a
s
ad
d
is
de
d
ad
d e
de
to d
d
th t
to
e o
th
ar t
e
ea h
ar

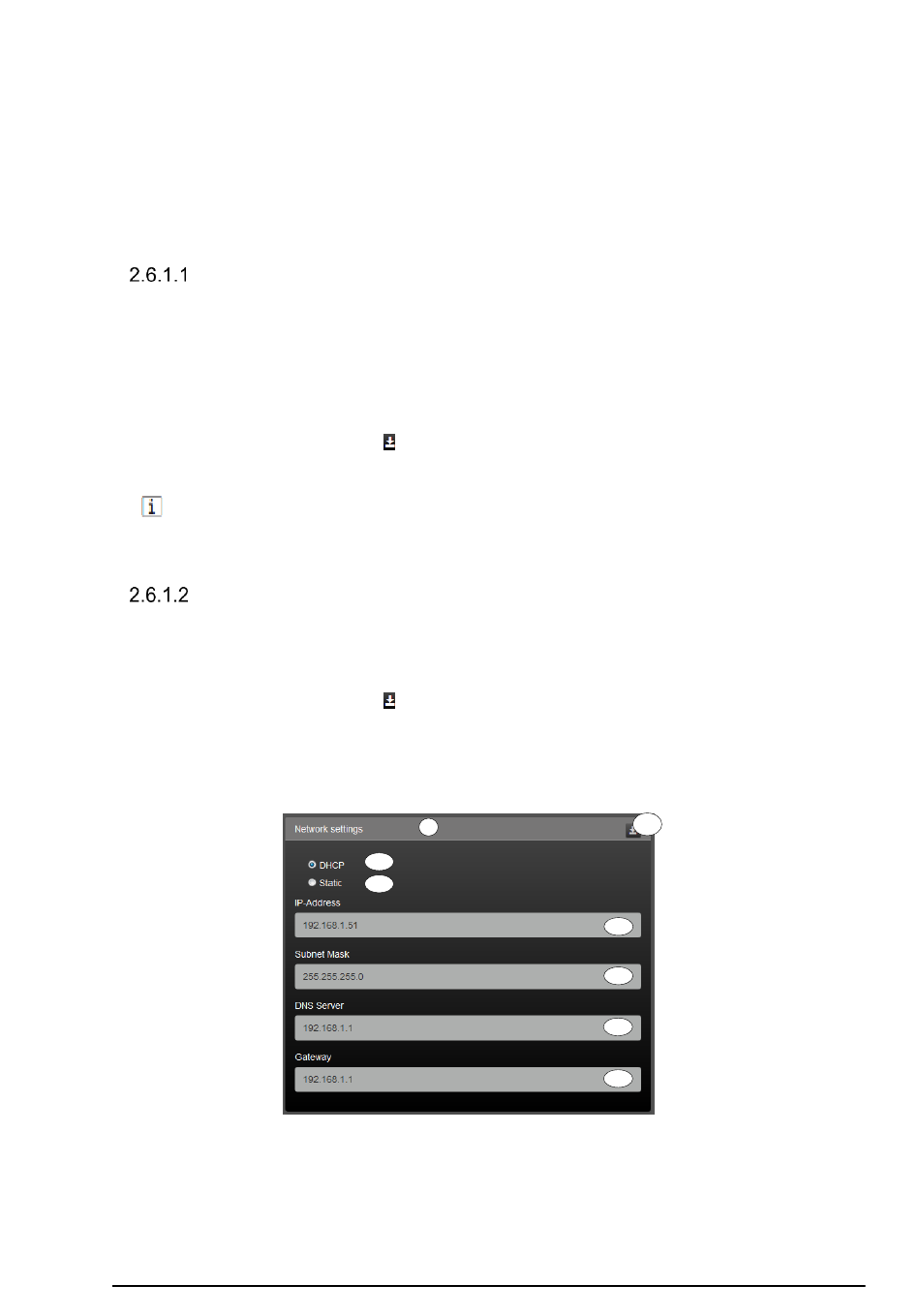

Figure 81: Parameters of the IP interface
