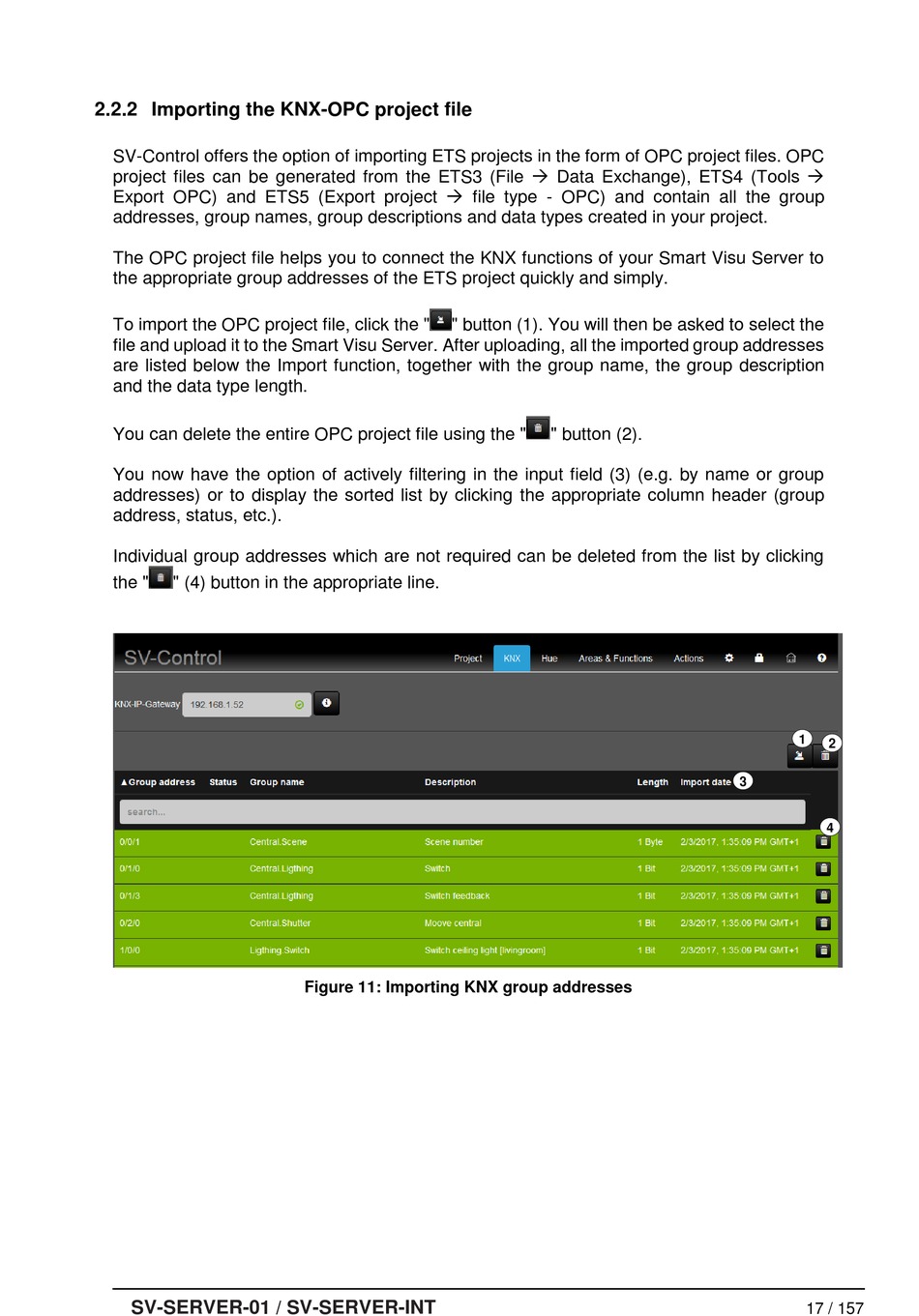

2.2.2 Importing the KNX-OPC project file
SV-Control offers the option of importing ETS projects in the form of OPC project files. OPC
project files can be generated from the ETS3 (File Data Exchange), ETS4 (Tools
Export OPC) and ETS5 (Export project file type - OPC) and contain all the group
addresses, group names, group descriptions and data types created in your project.
The OPC project file helps you to connect the KNX functions of your Smart Visu Server to
the appropriate group addresses of the ETS project quickly and simply.
To import the OPC project file, click the "
" button (1). You will then be asked to select the
file and upload it to the Smart Visu Server. After uploading, all the imported group addresses
are listed below the Import function, together with the group name, the group description
and the data type length.
You can delete the entire OPC project file using the "
" button (2).
You now have the option of actively filtering in the input field (3) (e.g. by name or group
addresses) or to display the sorted list by clicking the appropriate column header (group
address, status, etc.).
Individual group addresses which are not required can be deleted from the list by clicking
the "
" (4) button in the appropriate line.
1
2
3
4
Figure 11: Importing KNX group addresses
SV-SERVER-01 / SV-SERVER-INT
17 / 157
