Display 4 Byte (Unsigned Integer):
The function "Display 4 Byte (Unsigned integer)" (1) is the KNX function for displaying
positive or negative integer values of the KNX system in SV-Home.
The function reads the KNX group address entered in the input field "Values (4 Byte)" (2).
As values can be sent without a unit in the KNX system, the input field "Unit" (3) can be used
to enter an individual unit, which is added to the numerical value in the visualisation.
In addition, the current status of the function can be polled by defining two initialisation
addresses (4) on starting the system.

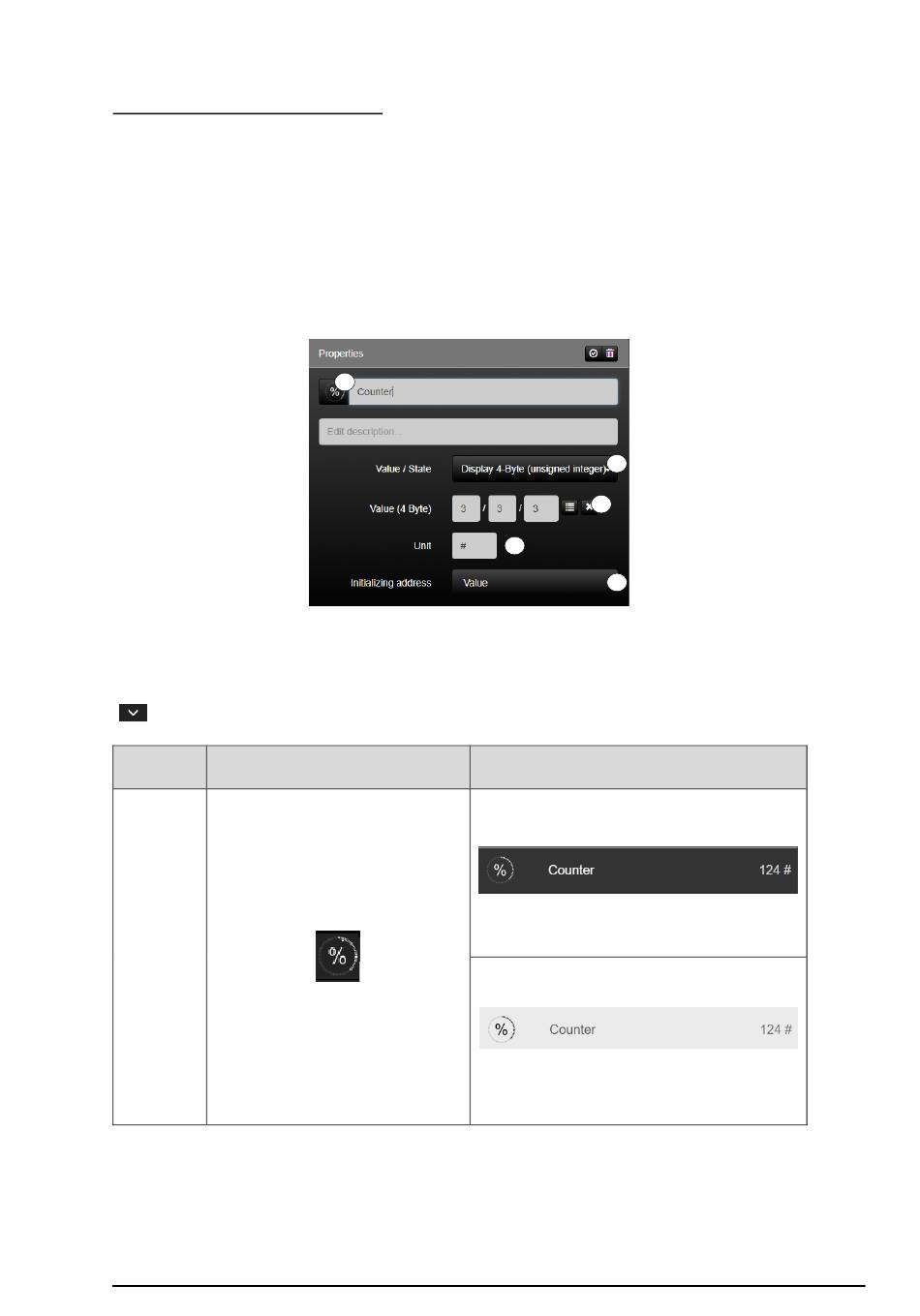

Figure 51: Parameters of the "Display 4 byte (unsigned integer)" function
The function has favorites within the symbol library (5). Additional icons are available via the
"
" button.
KNX function
Selection of the icon library in SV-Control
Display 4 Byte
(Integer)
Table 33: Display of the "Display 4 Byte (unsigned integer)" function
SV-SERVER-01 / SV-SERVER-INT
5
3
1
2
4
Operating and display element in SV-Home
