8.4.7 Configuring status logic functions

The Smart Visu Server supports "Status Logic" (1), using which up to 10 function states
can be logically interlinked. Thus, with status logic, you can, for example, interlink the
status of window contacts, so that you can see at a glance in SV-Home whether all the
windows are closed.
Using the "Logical link" drop-down menu (2), you can set the three following logical linking
operations:
- AND
- OR
- XOR
Using the drop-down menu (4), you can select previously created functions as input
variables for the status logic. Only functions containing at least one 1-bit datapoint can be
selected.
The up to 10 functions added to the status logic are shown in a list (4). The functions can
be deleted individually as input functions from the status logic with the "
SV- SERVER / SV-SERVER-INT
6
5
4
1

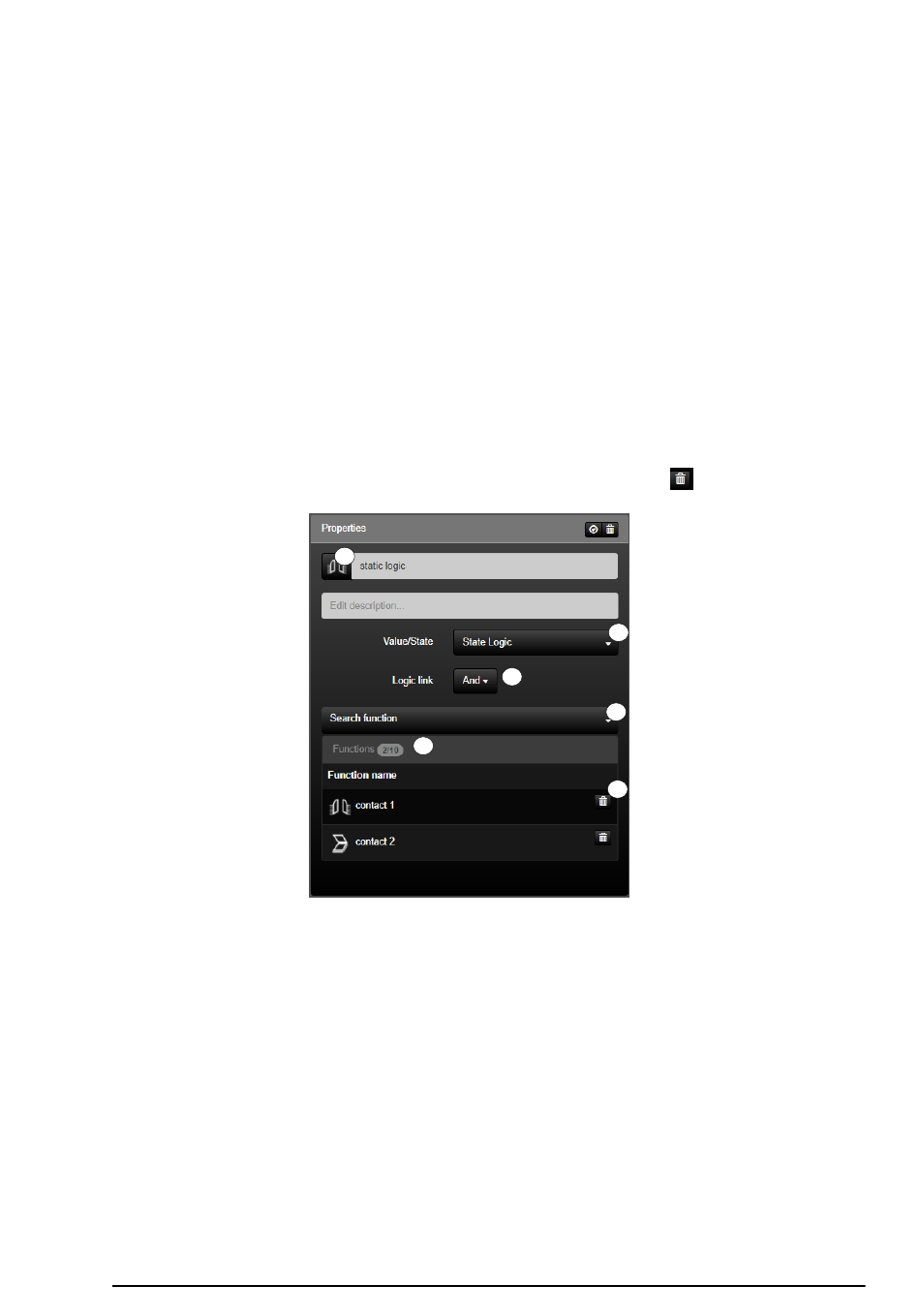

Figure 113: Parameters of status logic
1
2
3
1
5
" button (5).
