8 MM3PC SOFTWARE
4. Ensure the computer is properly connected to the RS232/485 converter and the transmit and DTR indica-
tors on the front flash when the software attempts to communicate with the MM3. If the indicators do not
flash, the RS232/485 converter may not be connected to the correct communications port. Serial commu-
nication ports on a computer are usually 9 or 25-pin male connectors. Ensure that the RS232/485 con-
verter box is connected to the correct computer port.
5. Click on the ON button to communicate with relay. MM3PC will notify when it has established communica-
tion link with the relay. If it fails to communicate check the following:
• review the settings above to ensure they match the relay settings
• the COM Port setting matches the COM Port being used
• the hardware connection is setup as shown in Figure 2–4: RS485 TERMINATION on page 2–5
• the RS485 wire polarity is correct and is connected to the right terminals
6. Once the communication has been established click OK to return to the main screen
GE Power Management
Create a new setpoint file with factory defaults
Open an existing file
Save the file to an existing or new name
Edit file properties firmware
Send setpoint file information to the MM3
Change the printer settings
Display a preview on screen
Print the MM3 or file setpoints
Exit the MM3PC program
Enable/disable setpoint access
Change system setup setpoints
Change protection related setpoints
Change process related setpoints
Change auto restart and auxiliary control setpoints
Change monitoring related setpoints
Change testing related setpoints
Change user map related values
View motor, process, and trip data
View status of all MM3 inputs and outputs
View switch inputs status
View counters and timers
View dynamic trending graphs
View MM3 product information
Set computer communications parameters
Modem control options
Store new address to chassis mount MM3
Troubleshoot memory map locations
Upgrade MM3 firmware
Enable/disable confirm store dialog box
Display MM3 instruction manual as a help file
Display instructions on using Windows Help
Display MM3 program information
Opens the Help Window
Hang up
Dial
Sets the computer communication parameters
Sends current file to the printer
Saves the file
Opens an existing file
809649A2.CDR
Create a new file

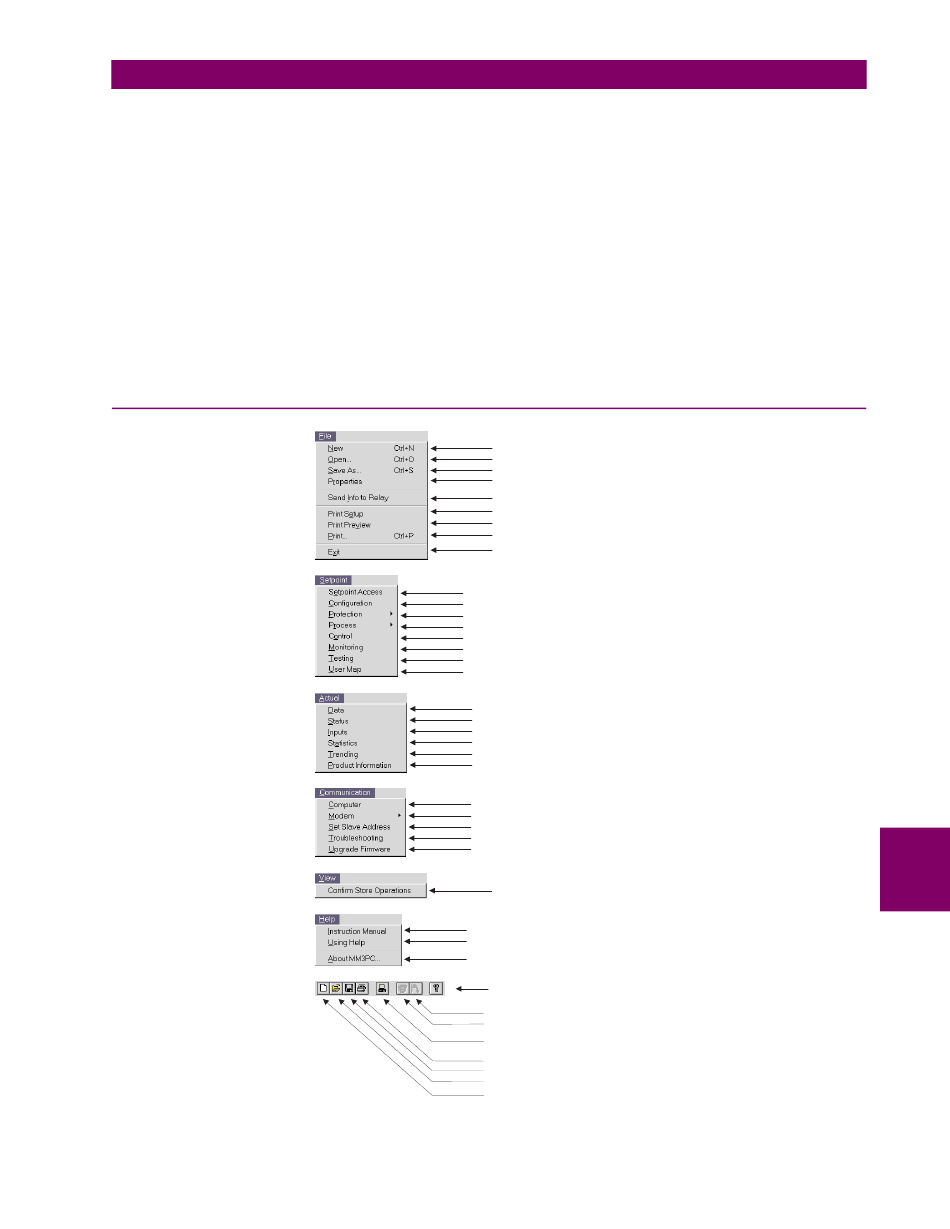

Figure 8–3: MM3PC MENU STRUCTURE
MM3 Motor Manager 3
8.3 CONFIGURATION

8.3.2 MM3PC PROGRAM MENUS

8
8-5
