8 MM3PC SOFTWARE
The following example illustrates how to enter setpoints from MM3PC.
1. Select the Setpoint > Protection > Motor Protection menu item.

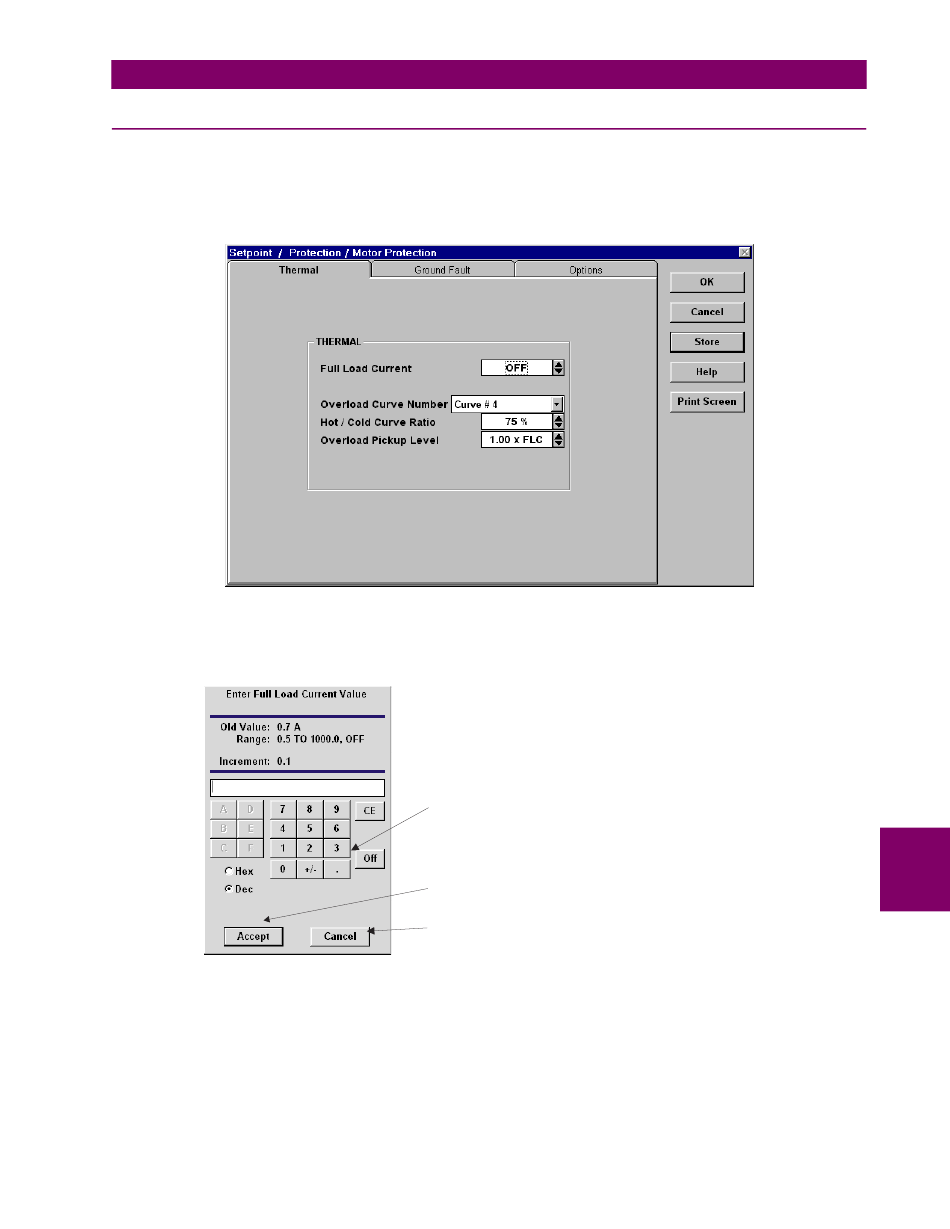

2. The following window prompts the user for motor protection information.
3. For numerical setpoints (in the example above, Full Load Current, Hot/Cold Curve Ratio, and Overload
Pickup Level), click the L/M arrow keys at the end of the dialog box to increment/decrement the setpoint
by its step value. Alternately, click the mouse pointer anywhere inside the setpoint box to display a numer-
ical keypad showing the OLD value, RANGE, and INCREMENT of the setpoint value being modified.
4. For setpoints requiring a non-numeric value (in the example above, Overload Curve Number), click any-
where inside the setpoint box to open a drop-down menu. An appropriate setpoint may then be selected.
5. After setpoint modifications are complete, click the OK to save the values into the local PC memory, Can-
cel to return to the previous values, or Store to send the values to the MM3 (if connected). Clicking on Help
displays help topics related to the setpoints being modified.
GE Power Management
Enter the new value by clicking on the numerical keys.
Click Accept to exit the keypad and keep the new value.
Click Cancel to exit the keypad and keep the old value
MM3 Motor Manager 3
8.4 USING MM3PC

8.4.4 ENTERING SETPOINTS

8
8-9
