maxon motor EPOS4 Module 50/5 Hardware Reference Manual page 15

Figure 2-6
Figure 2-7
maxon motor control
EPOS4 Positioning Controller
EPOS4 Module/Compact 50/5 Hardware Reference

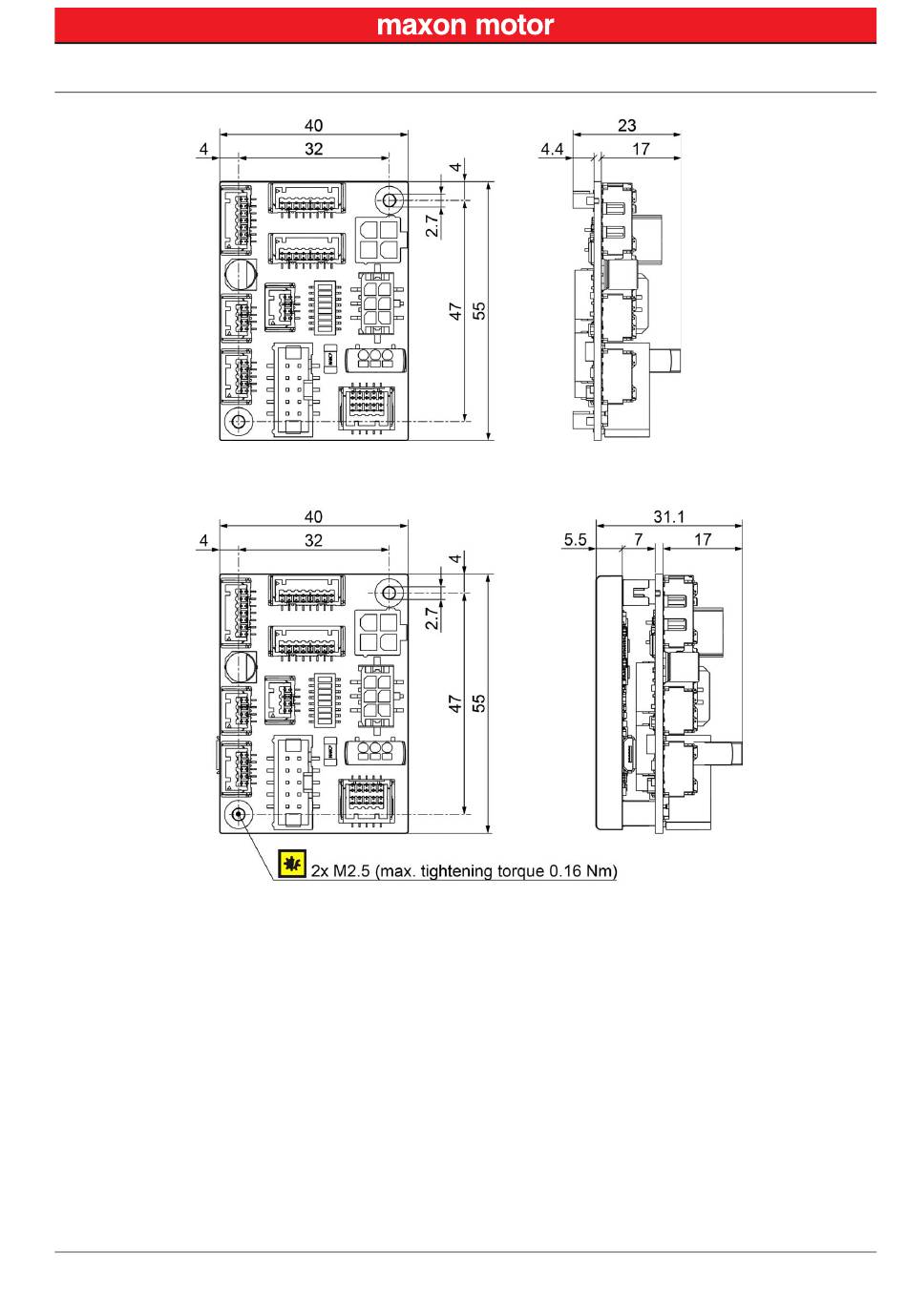

EPOS4 CB 50/5 CAN – Dimensional drawing [mm]
EPOS4 Compact 50/5 CAN – Dimensional drawing [mm]
Document ID: rel8003
Edition: May 2018
