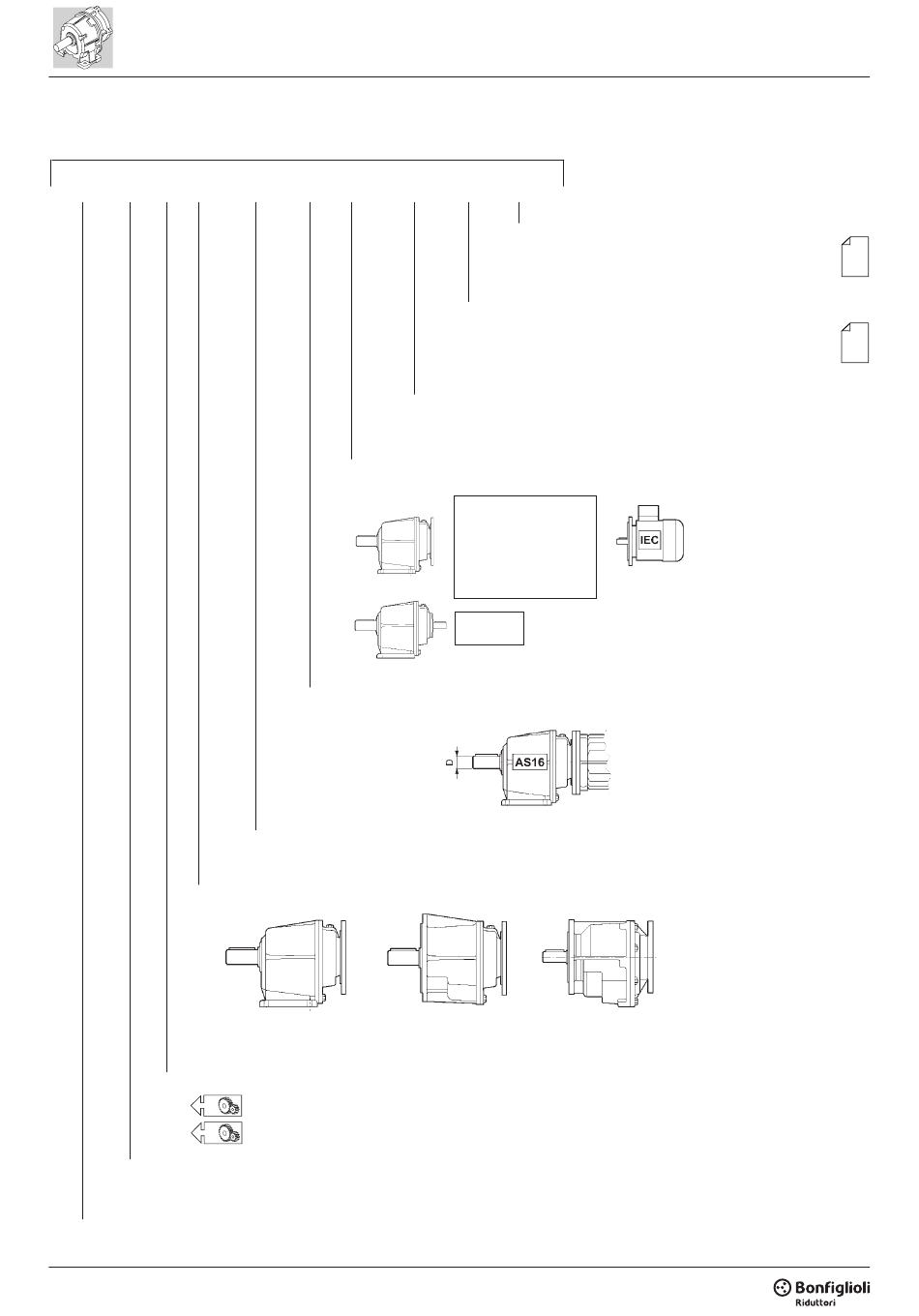

17 - DESIGNAZIONE
GETRIEBE / REDUCTEUR
AS 30 D P 65.80 _ 080 B5 B3 .....
FORMA COSTRUTTIVA / VERSION / BAUFORM / FORME DE CONSTRUCTION
(AS16...AS90) (AS25-AS30)
RIDUZIONI / REDUCTIONS / GETRIEBESTUFEN / ETAGES DE REDUCTION
–
2x
3x
D
GRANDEZZA / FRAME SIZE / BAUGRÖSSE / TAILLE
16, 20, 25, 30, 35, 45, 55, 60, 80, 90
SERIE / GEARBOX TYPE / GETRIEBETYP / TYPE DU REDUCTEUR
AS
18
17 - DESIGNATION
RIDUTTORE / GEAR UNIT
DESIGNAZIONE INGRESSO / INPUT CONFIGURATION
BEZEICHNUNG DER ANTRIEBSSEITE / DESIGNATION ENTREE
Ø ALBERO / SHAFT / ANTRIEBSWELLE / ARBRE
(solo / only / nur für / seulement AS 16)
—
(Ø16 default)
D14 (Ø14 option)
RAPPORTO / GEAR RATIO
ÜBERSETZUNG / RAPPORT DE REDUCTION
P
PR
17 - BEZEICHNUNG
OPZIONI / OPTIONS
OPTIONEN / OPTIONS
LO (AS 45 ... AS 90)
PV (AS 16 ... AS 90)
POSIZIONE DI MONTAGGIO / MOUNTING POSITION
EINBAULAGEN / POSITION DE MONTAGE
AS_P
B3 (default); B6; B7; B8; V5; V6
AS_F
B5 (default); B51; B53; B52; V1; V3
FLANGIA ATTACCO MOTORE / MOTOR MOUNTING
MOTOR BAUFORM / BRIDE MOTEUR
B5
063
132
071
160
080
180
090
200
100
225
112
HS
F
(AS16...AS90)
(AS25-AS35)
17 - DESIGNATION
R
20
23
