Technical Information
H1 Axial Piston Single Pumps, Size 045/053
Control Options
© Danfoss | May 2017

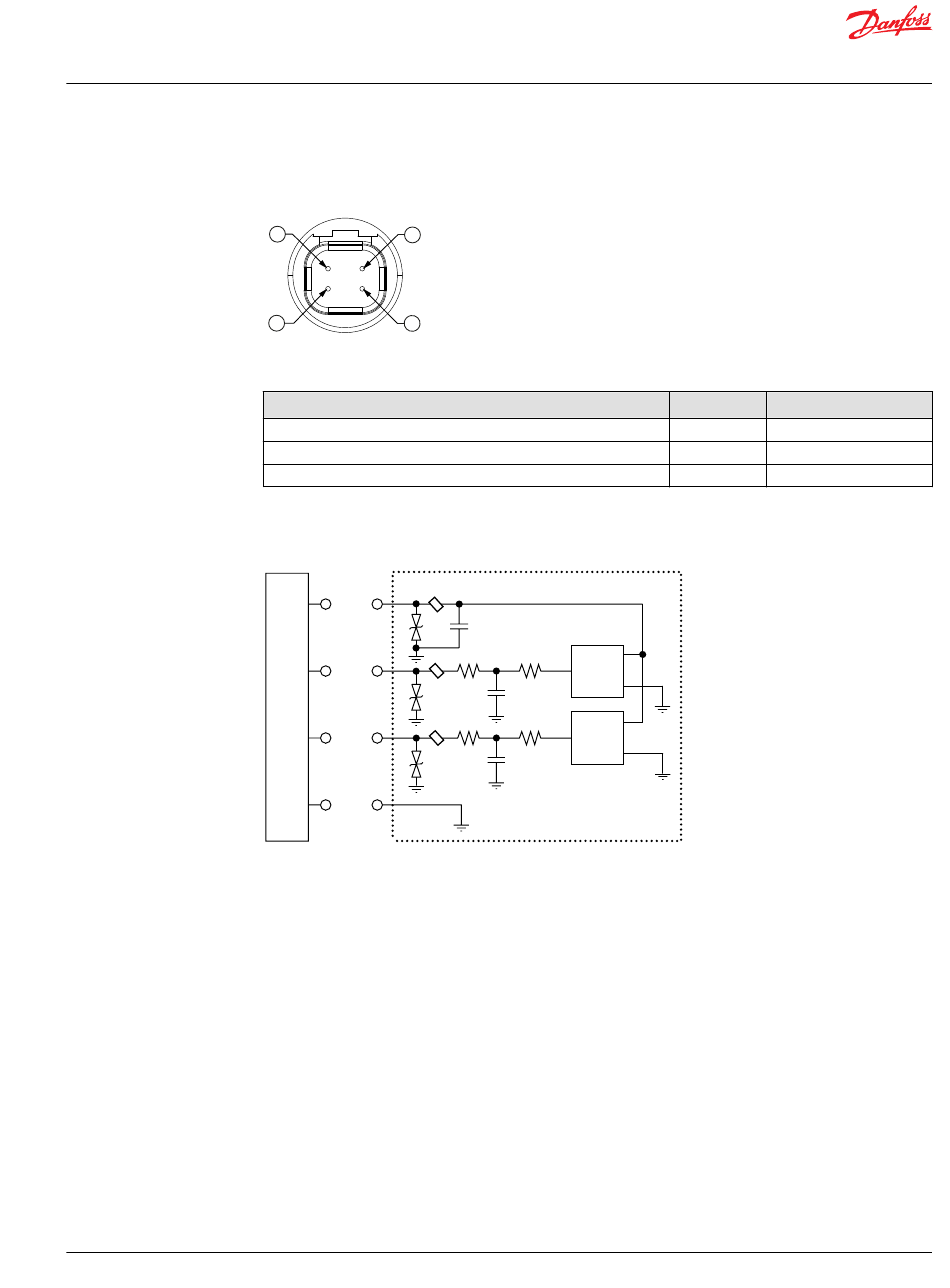

Swash plate angle sensor connector

Pin assignment
4 1
3 2
Swash angle sensor connector order numbers
Description
Mating connector DEUTSCH DTM06-4S-E004
Wedge lock DEUTSCH W4S
Socket contact (16-18 AWG)DEUTSCH 0462-201-16141

Interface with ECU

Interface with ECU schematic
E1
V+
E2
Sig1
ECU
E3
Sig2
Gnd
Minimum recommended load resistance is 100 kΩ.
1. Ground (GND)
2. Output Signal 2 (SIG2) – Secondary (redundant)
3. Output Signal 1 (SIG1) – Primary (nominal)
4. Supply (V+)
0.1uF
VCC
340R 340R
Out 1
Gnd
5.6 nF
VCC
340R 340R
Out 2
Gnd
5.6 nF
Quantity Ordering number
1 11105824
1 11084558
2 K02325
11063344 | BC00000059en-US1001 | 35
