Installation

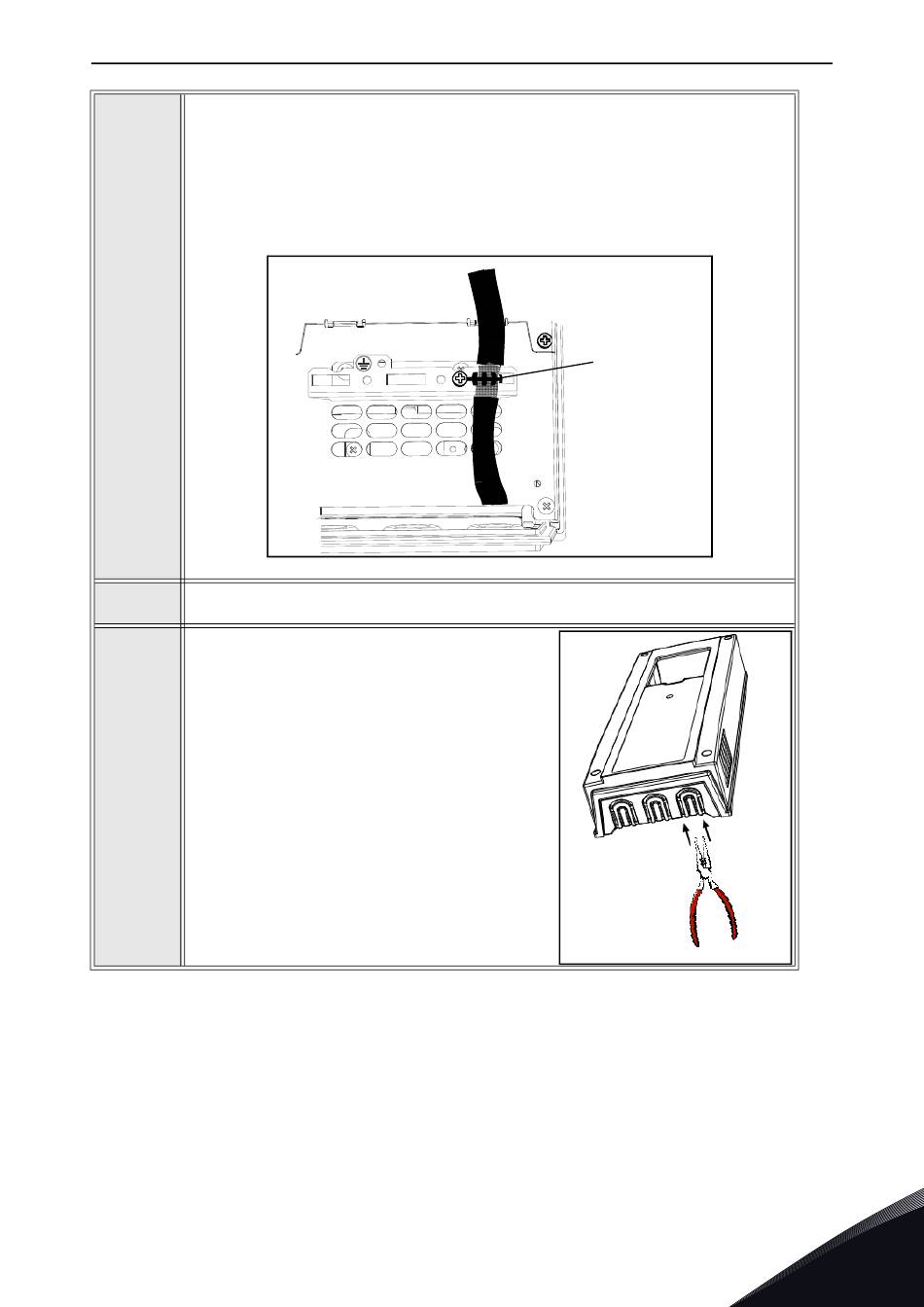

Using the cable clamp included in the delivery of the drive, ground the shield of
the CAN cable to the frame of the AC drive.
NOTE: This can be done in all drives if there is no difference in PE potential
between the drives. However, if there is PE potential difference then the shield
should be connected to PE only at one point in the system. The shields of the
cables shall be joint but not connected to several PE points with different poten-
tial.
6
If the AC drive is the last device on the bus, the bus termination must be set
7
with jumper X13 (see ch. 4.3.)
Unless already done for the other control cables,
cut free the opening on the AC drive cover for the
fieldbus cable (protection class IP21).
NOTE: Cut the opening on the same side you
have installed the board in!
8
24-hour support +358 (0)201 212 575 • Email: vacon@vacon.com
vacon • 41
Cable clamp
6
