OPTE6 layout and connections
5.2

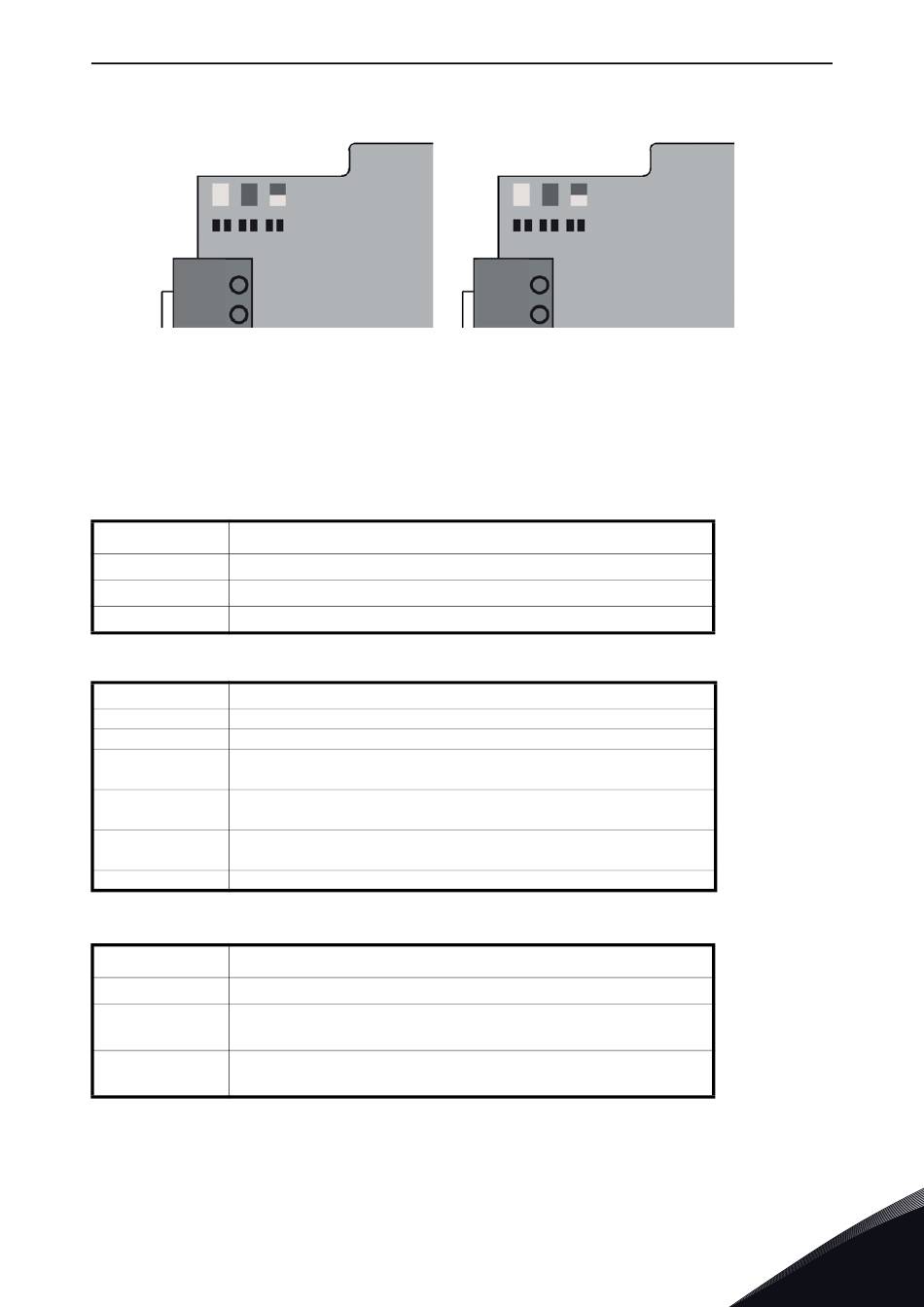

LED Indications

M A N
70CVB01605
M = CANopen run led
A = CANopen err led
N = Board status
CANopen run led (green)
LED is
Blinking
Single flash
ON
CANopen err led (red)
LED is
OFF No error
Blinking Invalid configuration
At least one of the error counters of the CAN controller has
Single flash
reached or exceeded the warning level (too many error frames).
A guard event (NMT slave or NMT master) or a heartbeat event
Double flash
(heartbeat consumer) has occurred.
An expected PDO was not received before the event timer
Quadruple flash
elapsed.
ON The CAN controller is bus-off.
Board status led (green)
LED is
OFF
Option board is in initialization state, waiting activation com-
ON
Blinking (once/ Option board is activated and in RUN state. Option board is
1s)
24-hour support +358 (0)201 212 575 • Email: vacon@vacon.com
Figure 8. LED indicators
Description
The CANopen device is in the pre-operational state.
The CANopen device is in the stopped state.
The CANopen device is in the operational state.
Description
Description
Option board is not activated.
mand from the AC drive.
ready for external communication.
N A M
70CVB01124
9339A_00
